8
Fig. 19
Fig. 18
Fig. 21
Fig. 22
A
Fig. 20

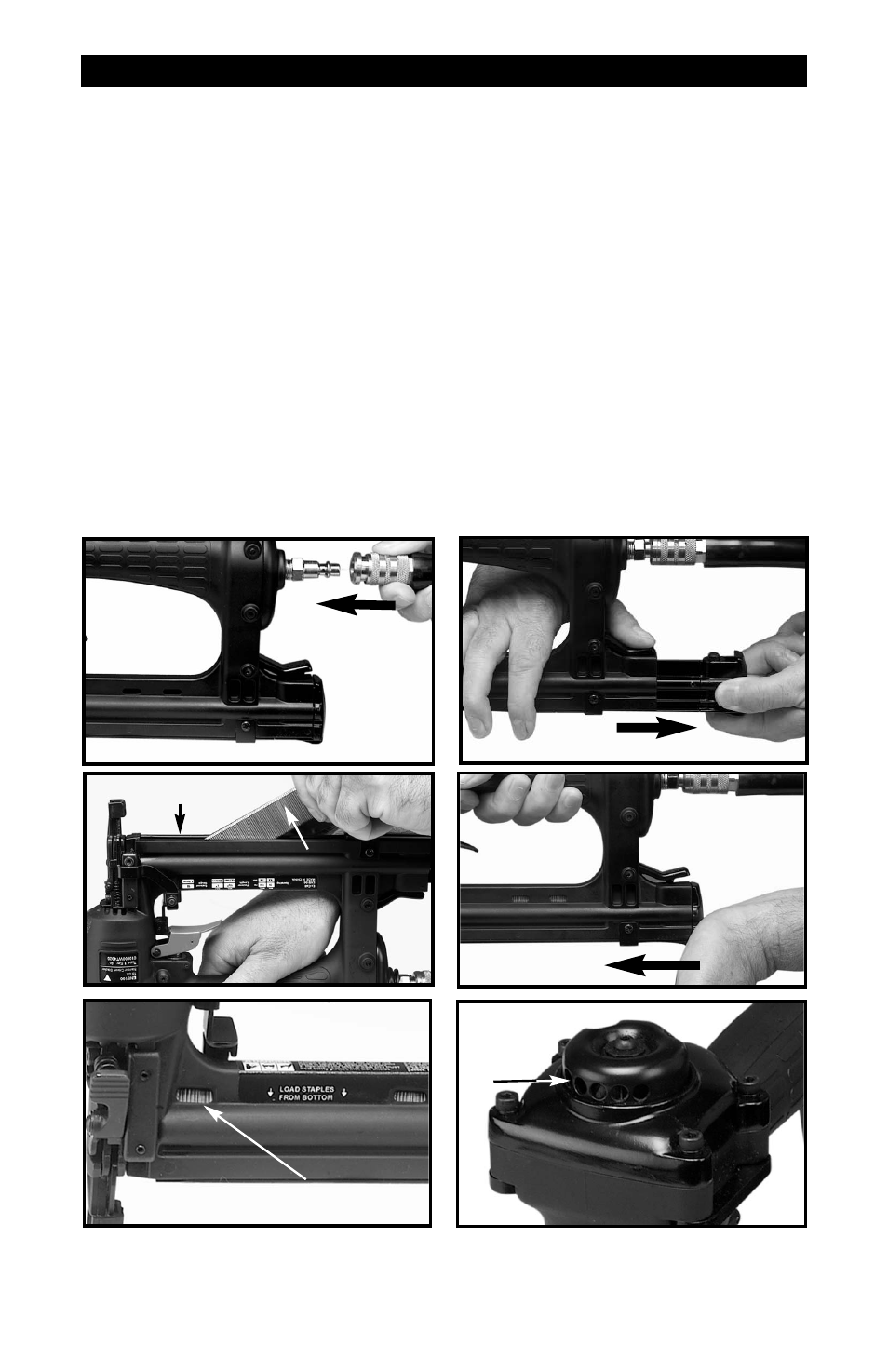

1. After reading and understanding this entire manual, connect tool to
air supply (Fig. 18).
2. Depress latch and slide magazine core open (Fig. 19).
3. Turn the tool upside down. Insert a strip of fasteners into the
magazine channel (A) Fig. 20. With the tool upside down, orient
fasteners with points up in the magazine channel (B) Fig. 20.
NOTE: Staples are loaded from the bottom.
4. Push magazine core closed (Fig. 21).
5. Observe the low fastener indicator (A) Fig. 22 and reload as needed.
6. Adjust directional exhaust deflector (A) Fig. 23, so that the exhaust air or
debris will be directed away from the operator. Grasp the deflector
and rotate it to the desired position for the current application.
PREPARING THE TOOL
Fig. 23
B
A
NOTE: This tool is shipped completely assembled. No assembly time or
tools are required.
A
