330A Power Amplifier
____________________________________________________________________________________
10
Bridged-Mono Operation

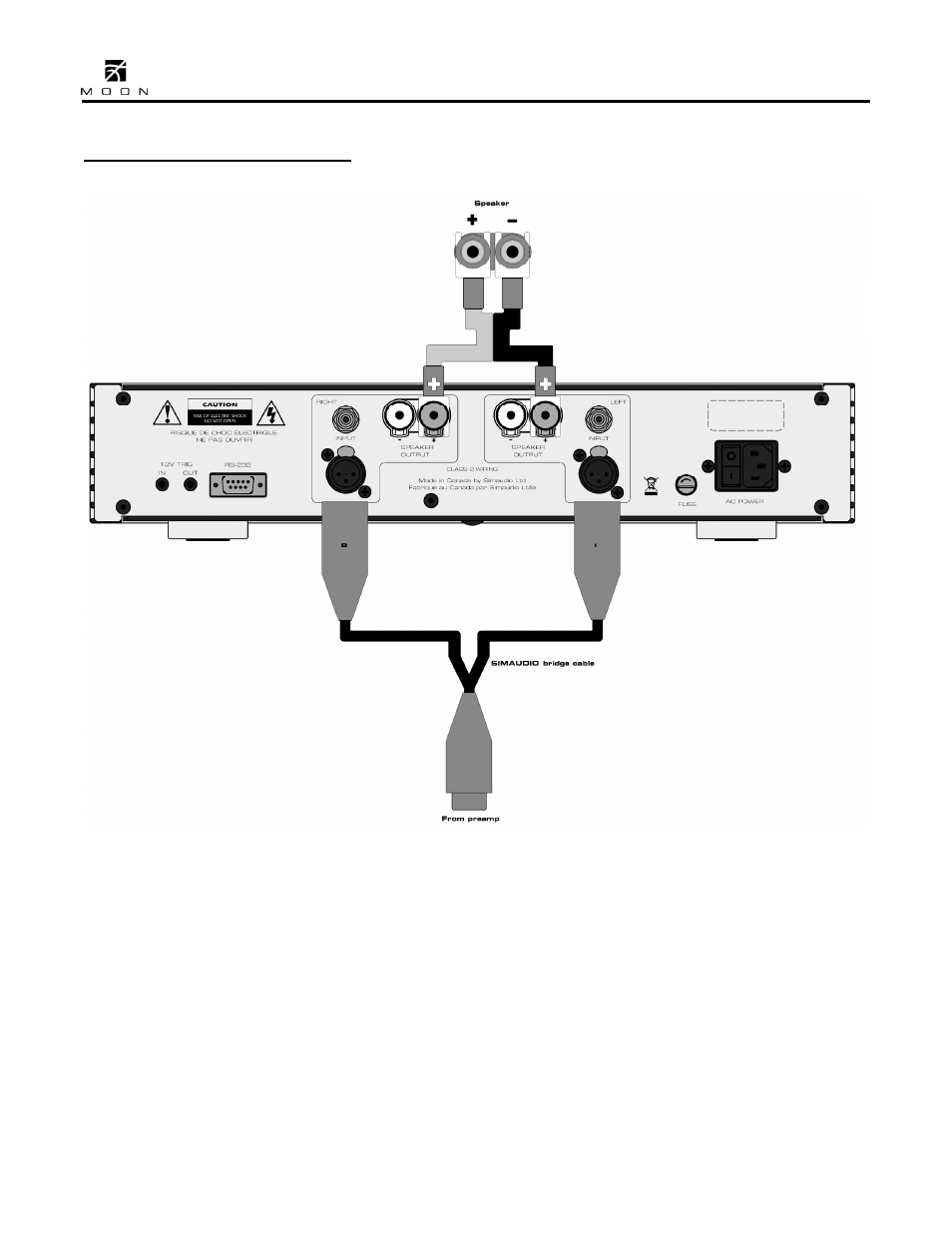

Figure 3: Bridged-Mono operation of the Nēo 330A Power Amplifier
In the event that you wish to operate the Nēo
330A Power Amplifier as a monoblock amplifier, it
can be converted to bridged mode without any
complex modifications. Only a MOON XLR-BRIDGE
adapter cable is required. This custom cable will
allow one input signal to be sent to both channels of
the amplifier’s inputs, as pictured above in Figure 3.
One lead from the “Y” adapter must plug into right
channel XLR input and the other lead must plug into
left channel XLR input. As well, you must use the
positive terminal of each output binding post
(exactly as in figure 3) for the loudspeaker
connection. If you are unsure about how to
accomplish a bridged-mono mode of operation,
don’t hesitate to contact your Authorized MOON
Retailer.
