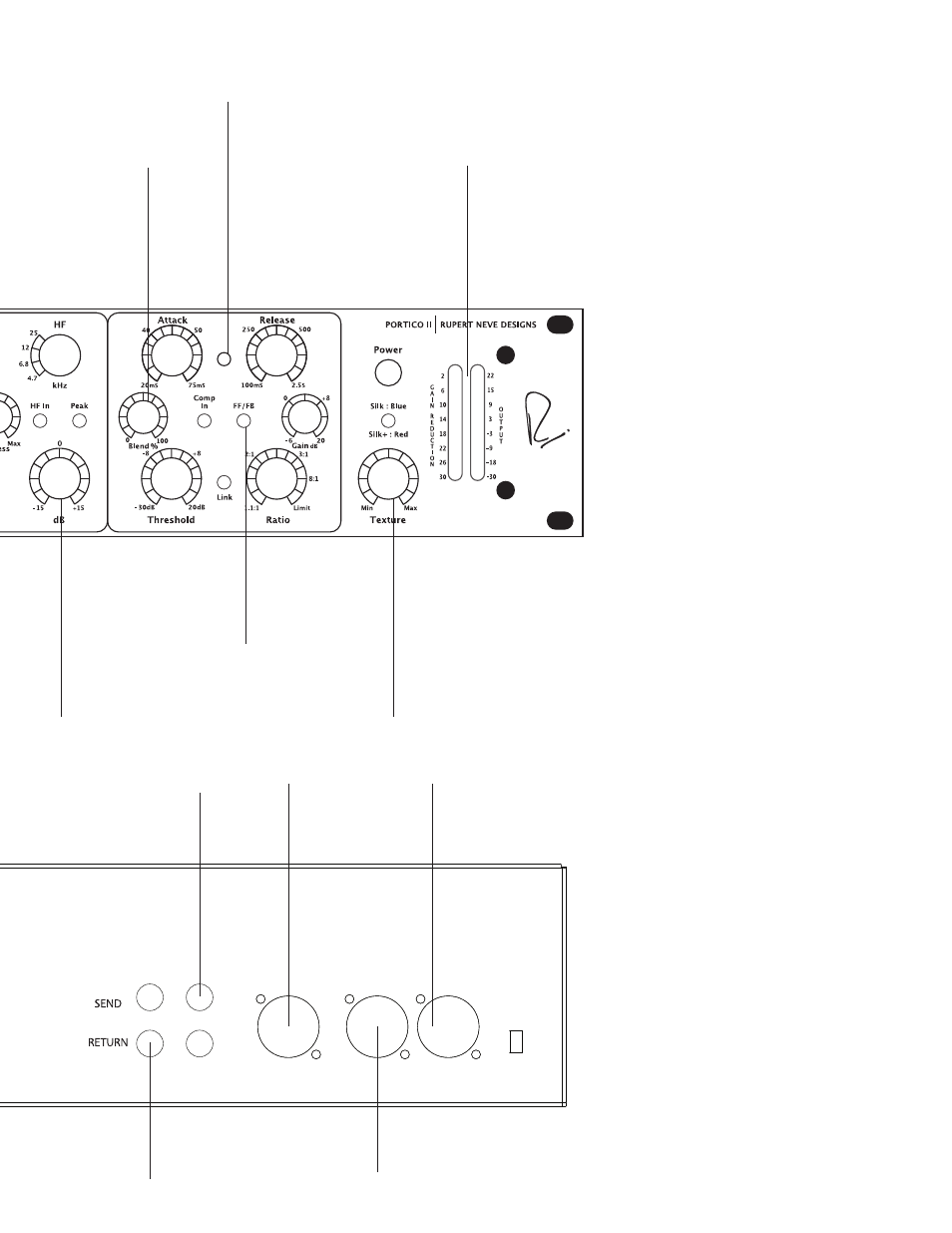

Direct Input
Transformer coupled input for
Hi-Z instruments with passive
1/4” thru circuit
Microphone Preamp
66dB of gain utilizing discrete
op-amp and custom
transformer coupled inputs
with selectable phase, mute
and +48V switching
High Pass Filter
Continuously variable from
20 to 250Hz at 12dB/Oct.,
with with a send to the
compressor side-chain
LF EQ
+/- 15dB gain selectable at
35, 60, 100 and 220Hz, with
in / out and peak / shelf
modes
Line Input
Transformer balanced line
level input with +/- 6dB trim
control
EQ Master
Master engage for the EQ
section with pre or post
compressor selection
HMF EQ
+/- 15dB gain from .7 to
14KHz, with continuously
variable Q from 0.7 to 5.0
HF EQ
+/- 15dB gain selectable at
4.7, 6.8, 12, and 25KHz, with
in / out and peak / shelf
modes
Compression Mode
Changes the VCA detection
from a forward feed design
(faster, more accurate attack
& release) to return feed
(smoother, more musical and
vintage response)
Texture
Continuously variable control
for Silk & Silk+ modes
allows the engineer to fine
tune the harmonic ratio of
the channel module
LED Metering
Dual 16 point peak meters
display compressor gain
reduction and output levels
Compressor-Limiter
Fully featured classic
compressor-limiter with
attack, release, threshold,
ratio, link, compression
mode, parallel blend,
make-up gain, HPF side
chain and master engage
LMF EQ
+/- 15dB gain from 70 to
1400Hz, with continuously
variable Q from 0.7 to 5.0
De-esser
Multi-variable de-esser
tuned with the HMF
frequency and Q controls
(EQ adjustments may be
made simultaneously with EQ
level control)
Blend
A parallel matrix providing
continuously variable control
to mix compressed and
uncompressed signals
II
CHANNEL
Fast
MIC IN LINE IN OUTPUT
LINK
SIDE
CHAIN
Mic In
Discrete TLA and transformer
balanced Input. Can handle
signals up to +25dBU
1= GND 2= Hot 3= Cold
Line Output
Transformer coupled fully
balanced and floating. Can
Output signals up to +25dBU
1= GND 2= Hot 3= Cold
Line Input
Discrete TLA and transformer
balanced input. Can handle
signals up to +25dBU.
1= GND 2= Hot 3= Cold
Side Chain
TRS Send and return that
effects the compressor VCA.
The return may also be
used for a Key input.
Link
Two TRS jacks can be used
to join multiple Portico
compressors VCA signals
AC Input
IEC input jack for
100-240V AC
GND
LIFT
2.5A FB FUSE
50/60Hz
100-240 VAC
