Rocktron Deep Blue - Manual (Page 7)

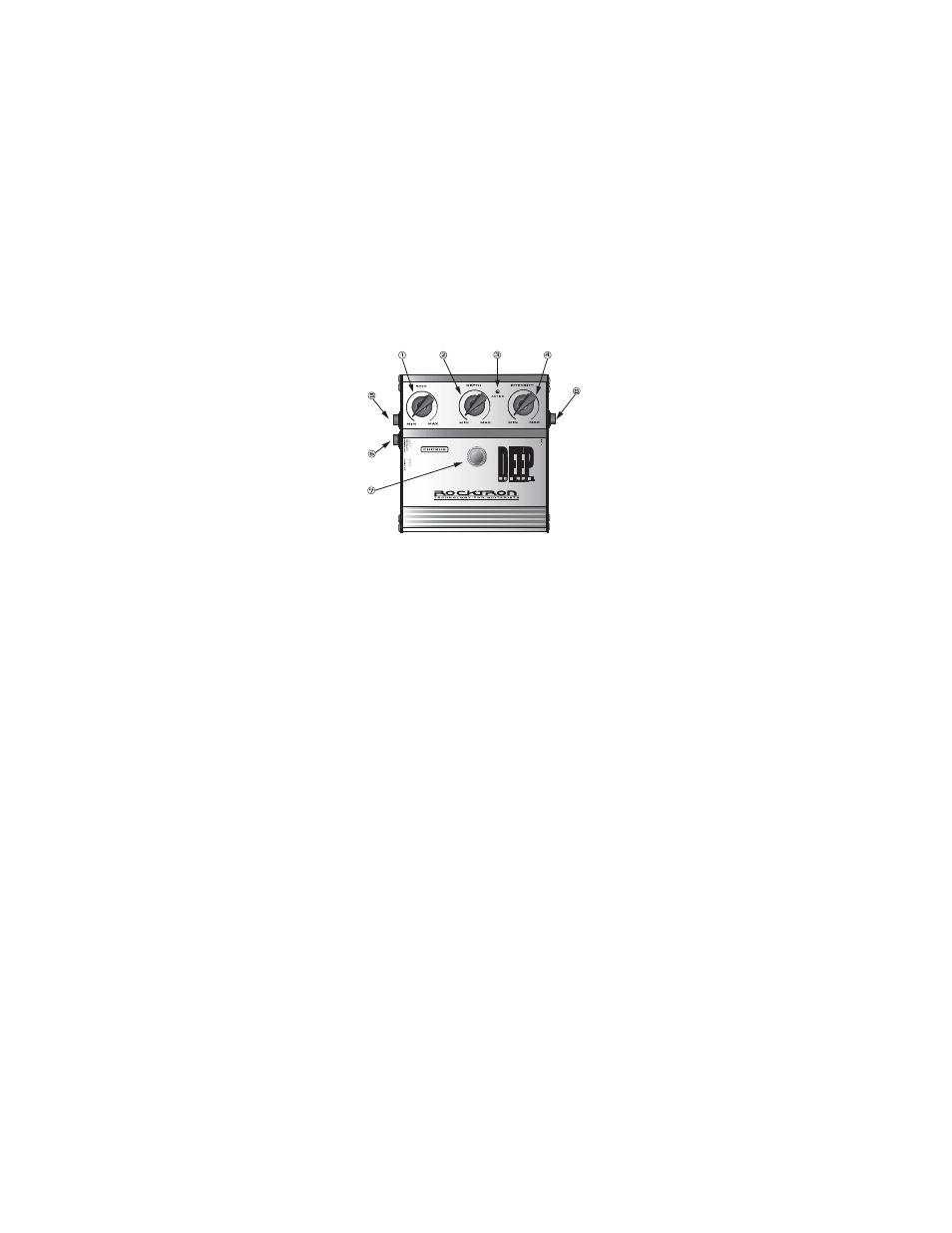

Rate Control - Adjusts the speed of the modulation. Turning
this control clockwise increases the speed. Turning it counter-
clockwise decreases the speed.
Depth Control - Adjusts the amount of modulation. Turning it
clockwise increases the depth of modulation. Turning it
counter-clockwise decreases the depth of modulation
Active LED - When lit the pedal is “active” or “on”
Intensity Control - Adjusts the amount of Chorus effect that is
added to the signal. Turning it clockwise increases the amount
of chorus added. Turning it counter-clockwise decreases the
amount of chorus added.
Output Jack - Using a standard guitar cable with a 1/4” jack,
plug into the input of your guitar amplifier or next stomp box
in the signal chain. When using the Deep Blue in mono
(plugging into only one amplifier) use this output jack. When
using in stereo (plugging into two amplifiers) use this jack for
the right side out.
1
2
3
4
5
