Effects loop – Rocktron Velocity V80R User Manual
Page 7
21
* Rocktron single (RFS1) and double (RFS2) footswitches are available and sold separately.
EFFECTS LOOP SEND
Using a standard guitar cable, connect this jack to the input of the outboard effects device you are using.
22
FOOTSWITCH Input RFS2
Using a ROCKTRON RFS2 footswitch and a stereo cord (both sold separately) you can change channels
between DISTORTION and CLEAN and turn the REVERB ON and OFF.
EFFECTS LOOP RETURN
Using a standard guitar cable, connect this jack from the output of the outboard effects device you are
using.
The effects loop allows you to insert different effects into the signal chain after the preamp section of the
amplifier. Please follow all manufacturer’s instructions when connection an outboard device to this amplifier.

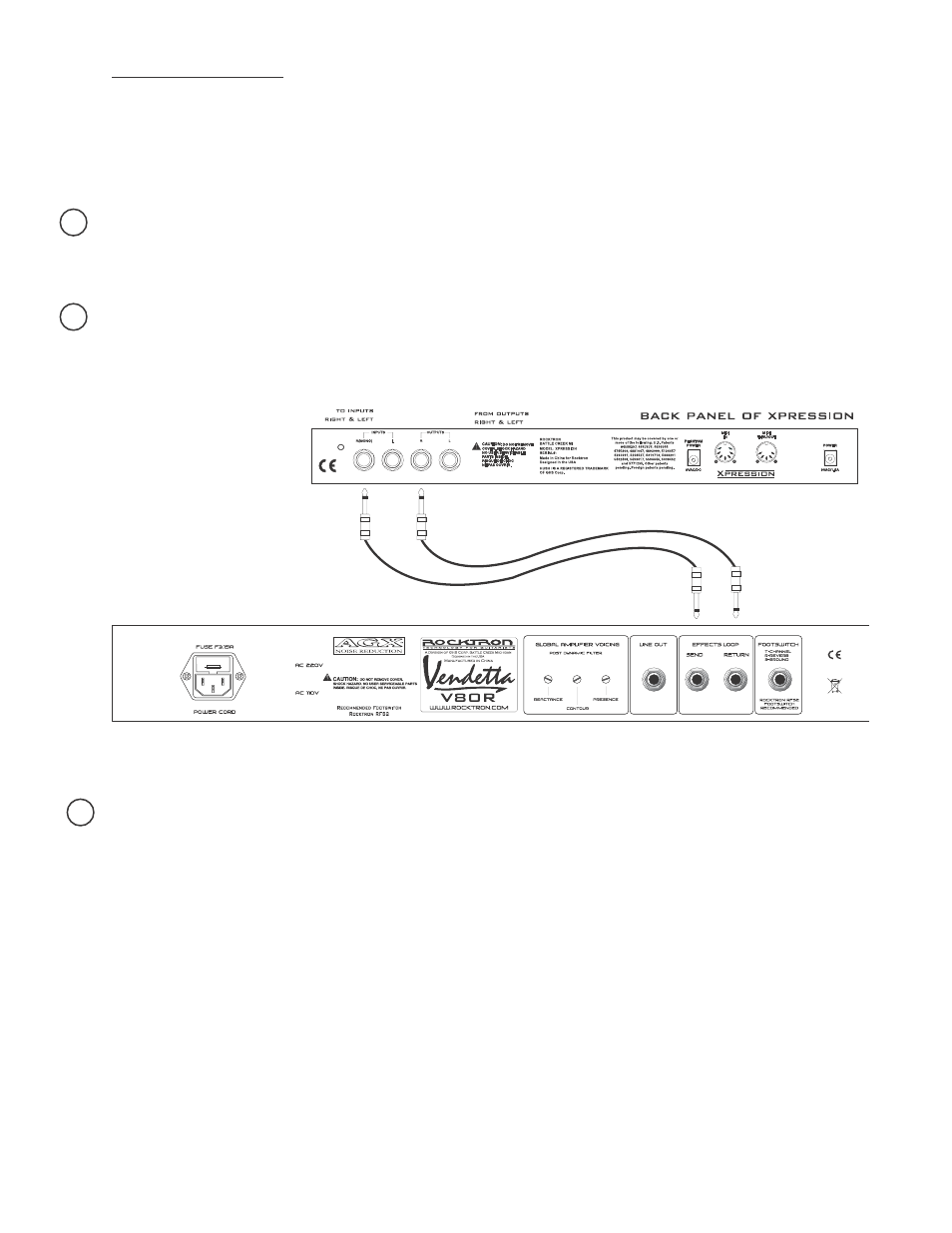

See drawing below showing you how to hook up a Rocktron Xpression effects processor.
EFFECTS LOOP
23
