INPUT jack
Connect the output of your guitar to the 1/4” input jack with a shielded guitar cable.
CH SELECT Button & LED
Channel Select button allows you to select between the DISTORTION or the CLEAN channel. When the
Channel Select LED is ON (or lit) the DISTORTION channel is active. When the Channel Select LED is
OFF (dark) the CLEAN channel is active.
EQUALIZATION CONTROLS
DISTORTION CHANNEL
LEVEL control
This knob determines the LEVEL (or volume) of the CLEAN channel. Turning the knob clockwise will
increase the LEVEL of the clean channel. Turning the knob counter-clockwise will decrease the LEVEL of
the clean channel.
CLEAN CHANNEL
GAIN control
This knob determines the amount of GAIN (or distortion) added to the signal in the distortion channel.
Turning the knob clockwise will add more GAIN to the signal. Turning the knob counter-clockwise will
decrease the amount of GAIN added to the signal.
LEVEL control
This knob determines the LEVEL (or volume) of the distortion channel. Turning the knob clockwise will
increase the LEVEL of the distortion channel. Turning the knob counter-clockwise will decrease the
LEVEL of the distortion channel.
BASS control
This knob controls the overall bass of both the DISTORTION and CLEAN channels. The BASS control
boosts or cuts the amount of low frequencies, or bass sound in the signal.
MIDDLE control
This knob controls the overall MIDDLE frequencies of both the DISTORTION and CLEAN channels.
The MIDDLE control boosts or cuts the amount of mid-band frequencies present in the signal.

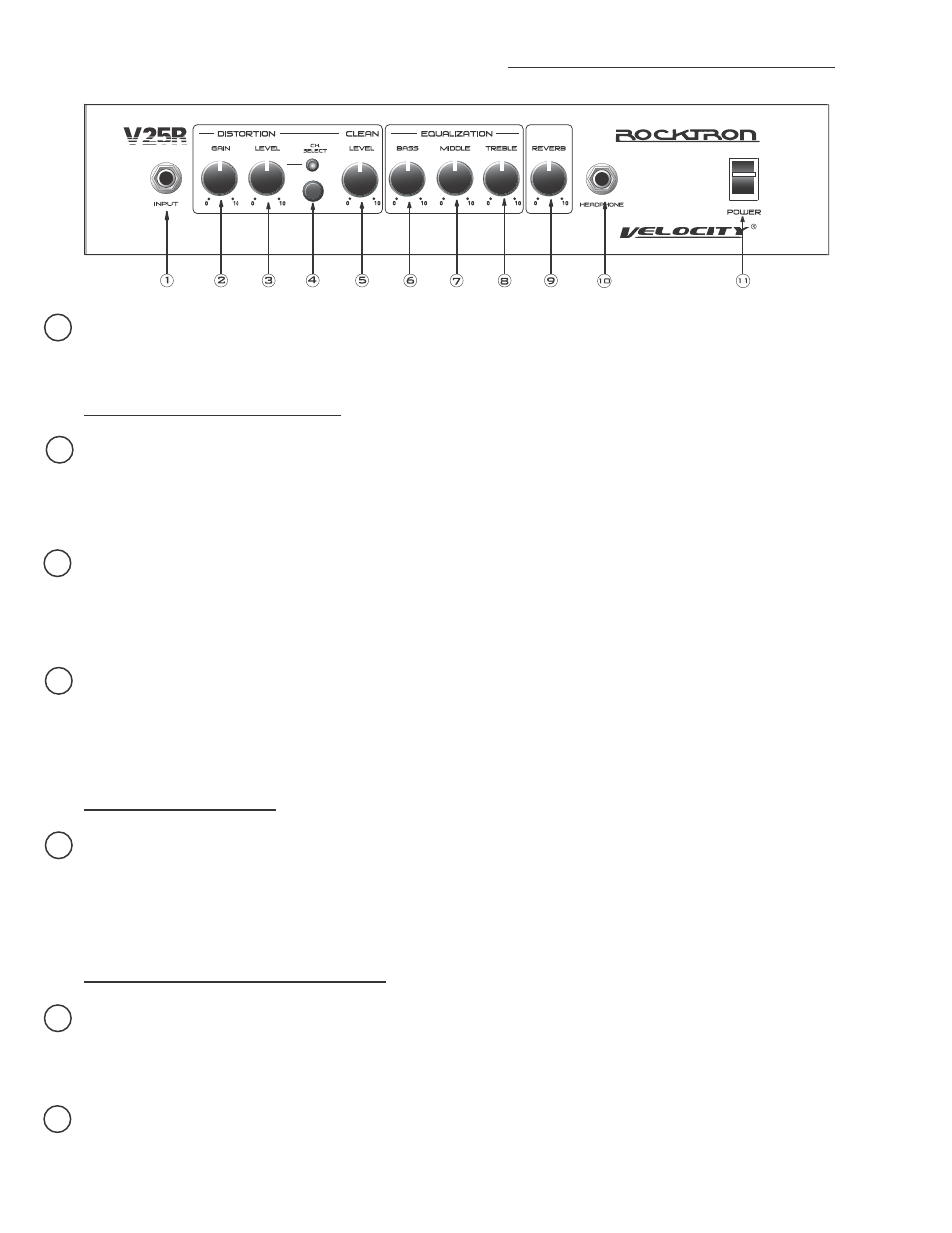

FRONT PANEL DESCRIPTIONS
1
2
3
4
5
6
7
