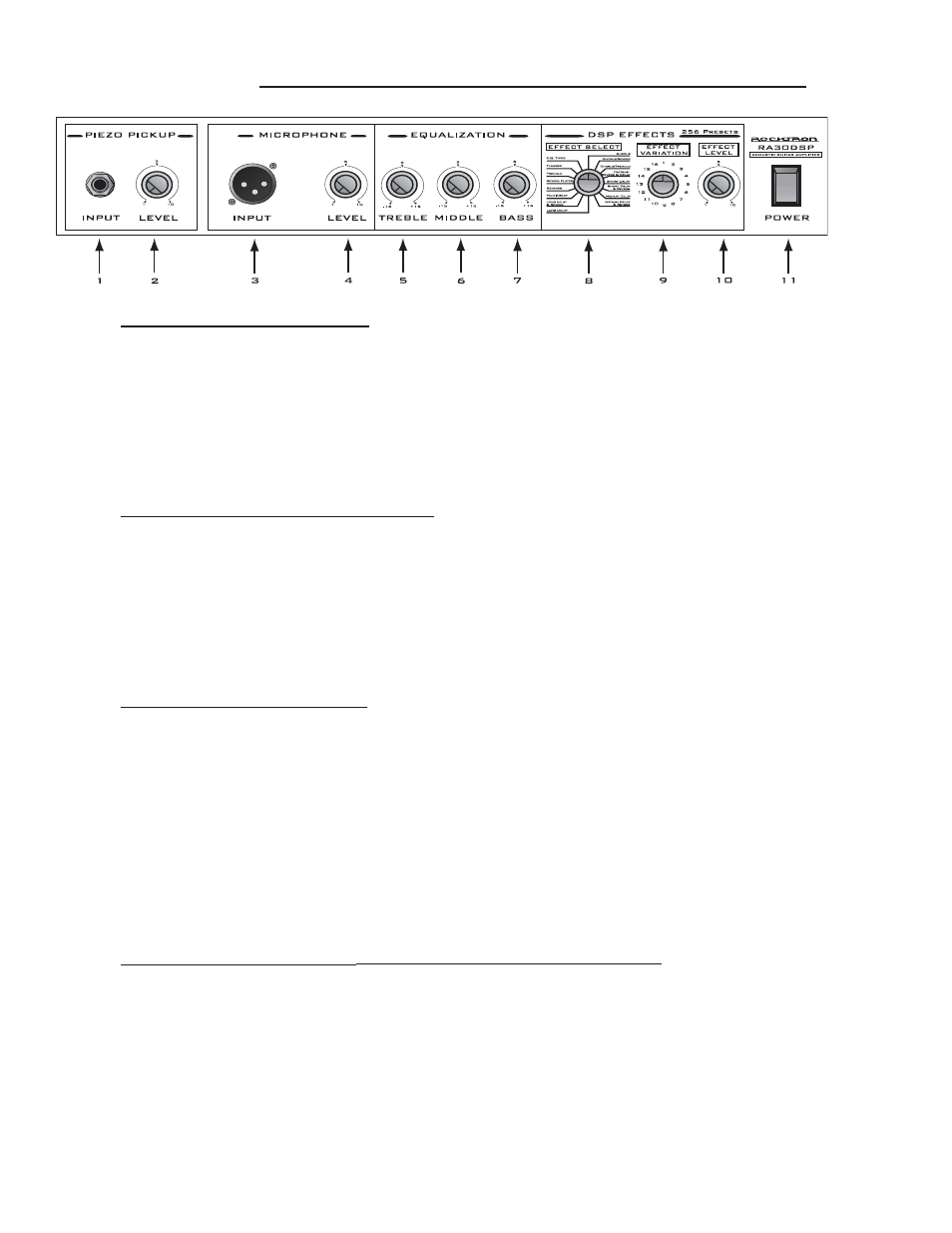

Front Panel
1
2
Piezo Pickup Section
INPUT Jack
Using a standard guitar cable with a 1/4” jack - plug your guitar into this jack
LEVEL Control
Adjusts the overall “LEVEL” or output of the guitar signal
Microphone Input Section
XLR Input Jack
Using a standard microphone cable with XLR jacks, plug a microphone into this jack.
LEVEL Control
Adjusts the overall “LEVEL” or output of the microphone signal.
Equalization Section
TREBLE Control
Adjusts the high frequencies of the signal
MIDDLE Control
Adjusts the midrange frequencies of the signal
BASS Control
Adjusts the low-end frequencies of the signal
DSP Effects Section
(Explained in detail on following pages)
EFFECTS SELECT Knob
This 16 position knob allows you to select one of 16 different preset effects “blocks”. Each
effect block (or each position) contains 16 different preset effect “settings” which are selected
via the EFFECTS VARIATION Control (see point 9).
3
4
5
6
7
8
