Rear panel, Agx™ (automatic gain expander) – Rocktron R20 User Manual
Page 7
3

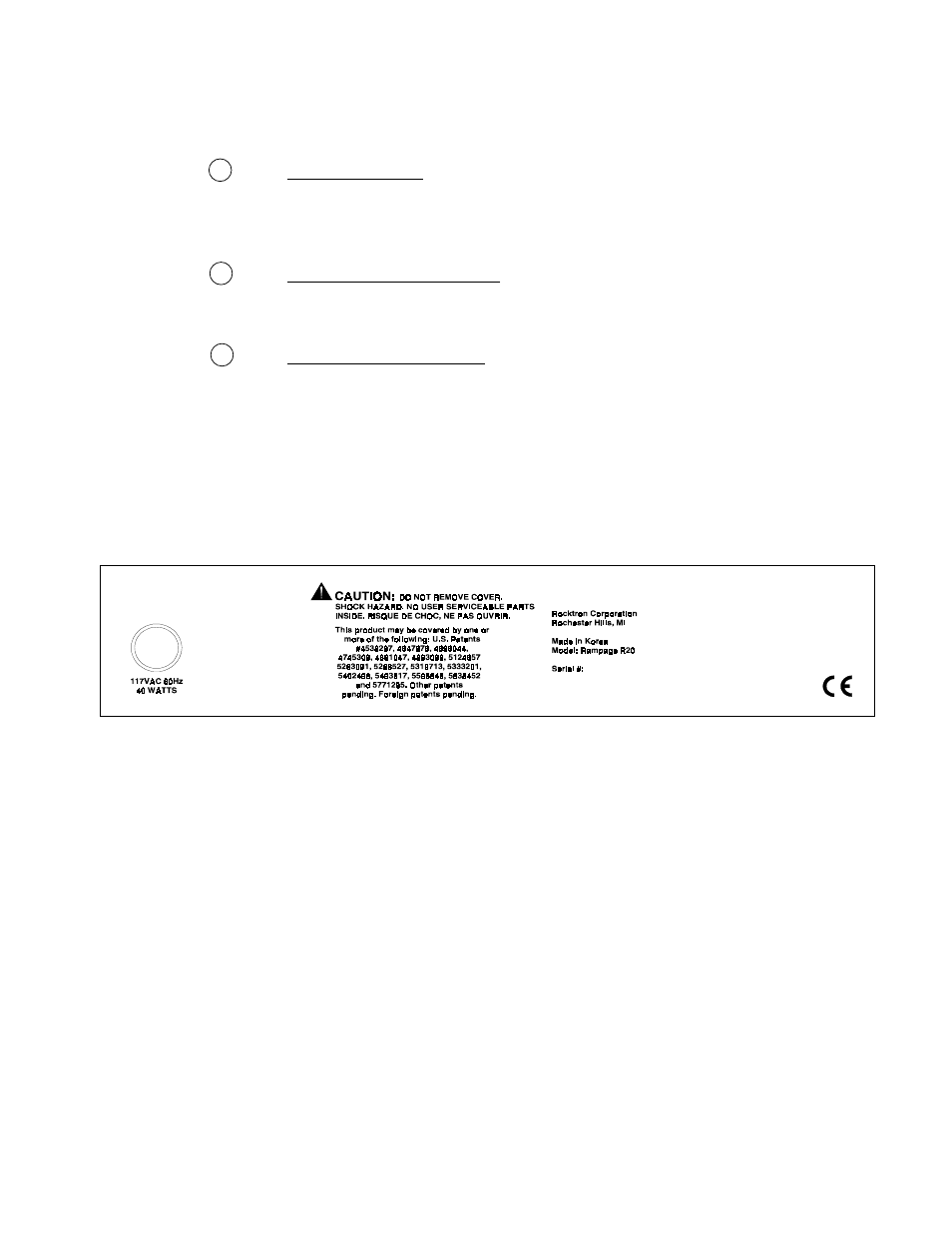

Rear Panel
REVERB control
Regulates the amount of REVERB mixed with the original signal from
your guitar. When turned fully counterclockwise, no REVERB is
present.
PHONE (Headphone) jack
Plug headphones into this jack to bypass the power amp and practice
in private.
POWER switch and LED
Switch turns the amp ON and OFF. The red LED shows the amp is
ON.
8
9
7
AGX™ (Automatic Gain Expander)
Rocktron's patented AGX™ system solves the long standing problem encountered by guitar players
when using high gain distortion. The AGX™ circuit expands the gain of the amplification circuit only when
required based on the input level. When no signal is present, the AGX™ circuit expands down the amplifi-
cation level to a point where hum and noise are dramatically reduced.
