9
E
n
g
lis
h
WARNING: RISk of electRIcAl Shock
WHat can HaPPen HoW to PreVent It
• Spray directed at electrical
outlets or switches, or objects
connected to an electrical
circuit, could result in a
fatal electrical shock.
• Unplug any electrically
operated product before
attempting to clean it. Direct
spray away from electric
outlets and switches.
WARNING: RISk of INjuRy fRom lIftING
WHat can HaPPen HoW to PreVent It
• Serious injury can result
from attempting to lift too
heavy an object.
• The pressure washer is too
heavy to be lifted by one
person. Obtain assistance
from others before lifting.
SAvE ThESE InSTrucTIonS
For FuTurE uSE
InSTALLATIon

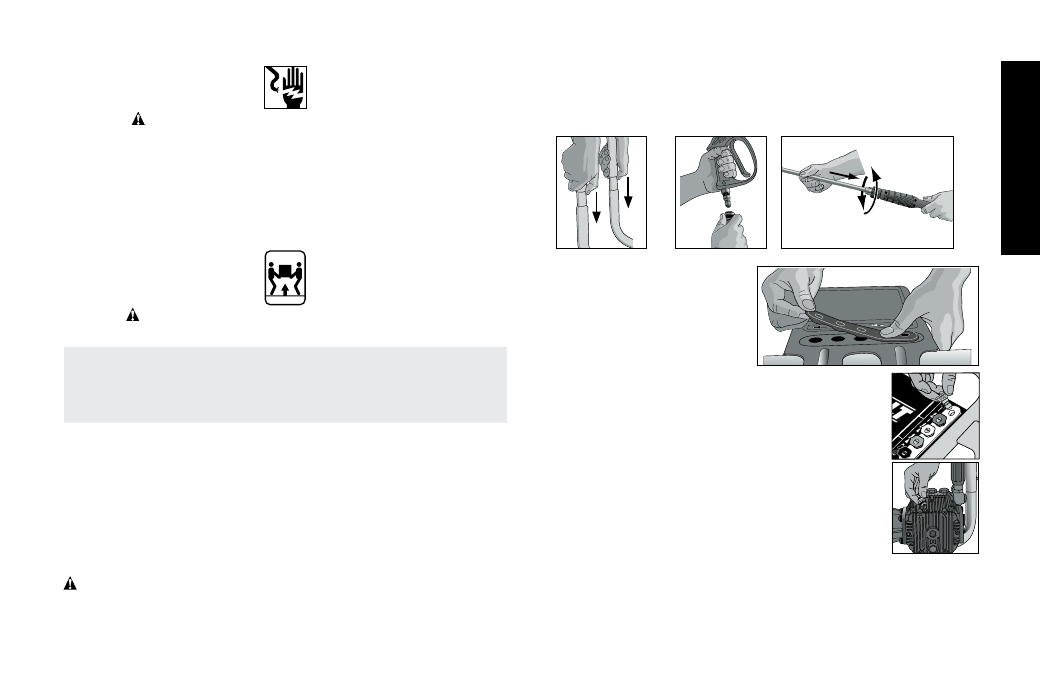

Pressure Washer Assembly (Fig. 1)
1. Place handle assembly (A) onto frame, depress the snap
buttons, and slide the handle assembly onto the frame (B) until
snap buttons are secured in place.
cAutIoN: Risk of personal injury. Avoid placing hands between
handle and frame when assembling to prevent pinching.
. Attach high-pressure hose (C) to spray gun (D). Make sure it is
secure.
3. Connect wand (E) to spray gun. Make sure connection is
secure.
4. Place the nozzle holder (G)
onto the panel assembly (F)
and push each nozzle holder
into place.
5. Remove the five colored
quick-connect nozzles from
the plastic bag and insert
them into correct grommet on the nozzle holder.
Nozzles are color coded to match colored
nozzles on panel assembly.
6. Using a 7/8" wrench, remove shipping plug
from pump by turning it counterclockwise.
Discard shipping plug.
note: The high-pressure pump was filled with
oil at the factory. Always check oil level before
using (refer to Maintenance for more
information).
