Step 3
Attach the 48 inch, black attachment
straps by looping the strap around the
planks of your dock.
IMPORTANT: Your decking must have
openings that are minimum 1/8” x 1 ½”
wide to accommodate the straps passing through.

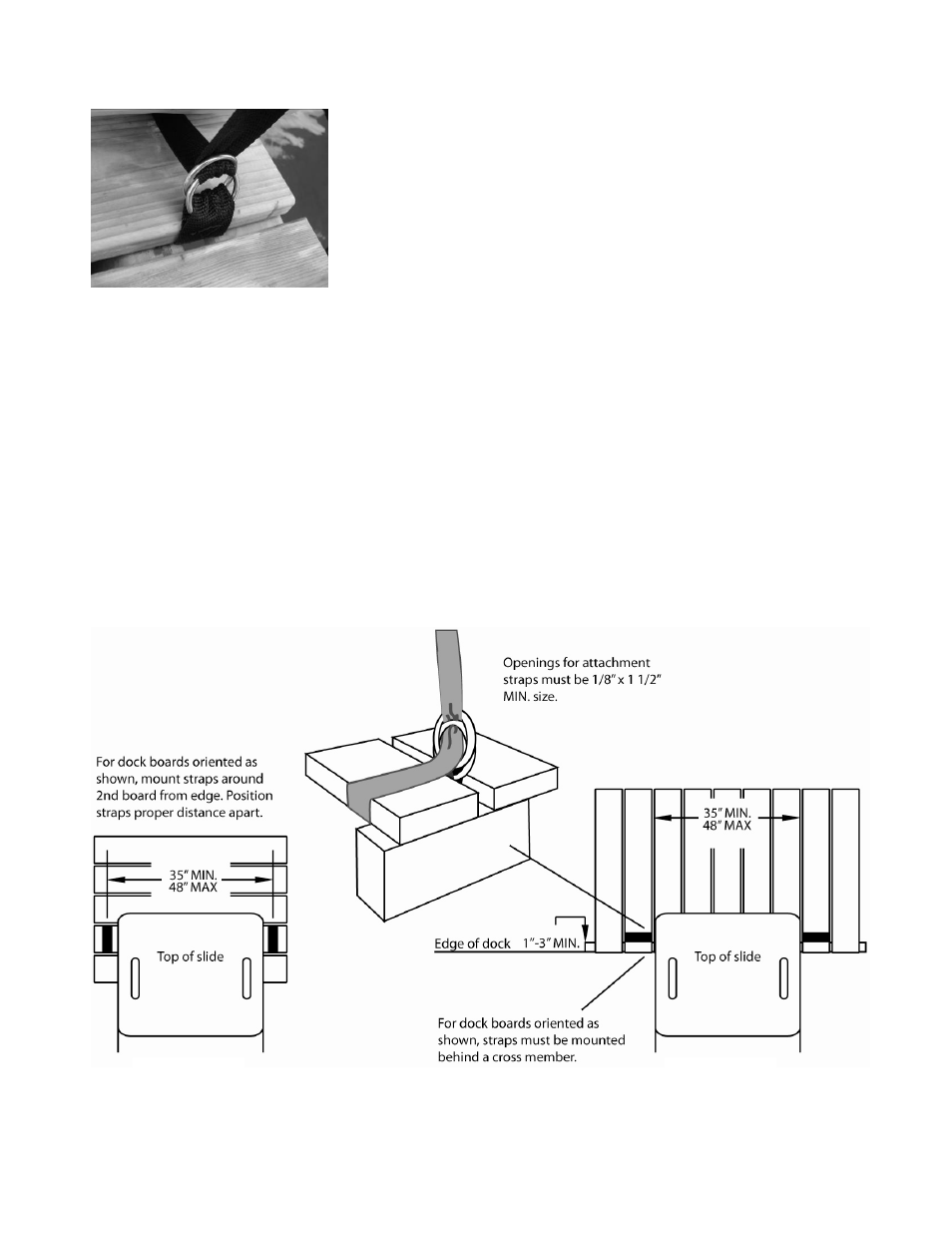

For planks that run perpendicular to the slide direction (Fig.
A), insert the straps around the second or third plank. Space
straps approximately 36” apart.
For planks that run parallel to the slide direction (Fig. B),
insert the straps behind a frame support member that is
running perpendicular to the decking. This is critical to
prevent the straps and slide from slipping forward.
Attach both straps to the dock and tighten securely.
Figure A Figure B
