1.14 RWX119 (Single console)
– USB Server Connection
- Use RCE-6 to connect to server via USB interface
*- Note: if you requested the RCB-6 it is a USB only connection

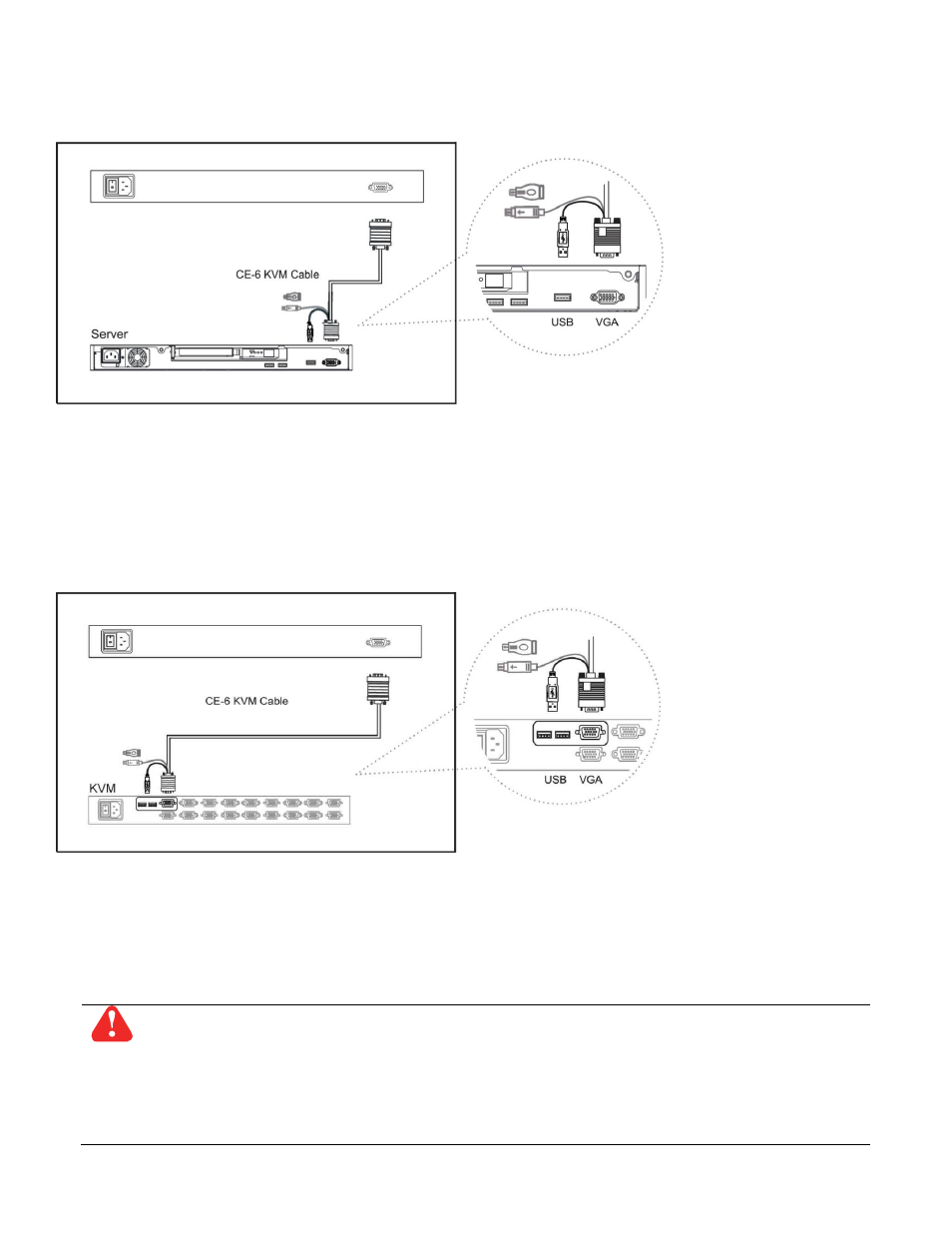

Figure 11. Example of connecting RCE-6 4-in-1 Combo KVM cable to server via USB interface
1.15 RWX119 (Single console)
– USB KVM Connection
- Use RCE-6 to connect to KVM via USB interface
*- Note: if you requested the RCB-6 it is a USB only connection
Figure 12. Example of connecting RCE-6 4-in-1 Combo KVM cable to KVM via USB interface
Remarks:
The above connection is only for the LCD keyboard without KVM switch built-in.
For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.
Caution:
The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as
the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers
and KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard
drawer. Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the
power to all devices before connecting them. Apply power to connected devices again only after the
LCD keyboard is receiving power. The company is not responsible for damage caused in this way.
