4.0 OPERATING
INSTRUCTIONS
The instruction label from the top of the instrument is reprinted here in case it is ever defaced.
4
EB TCAT-2LV Rev 1 08/14/07
OPERATING INSTRUCTIONS
The TCAT-2 Controller parameters are set at the factory for for the specific load supplied with it. If the
TCAT-2 has not been so supplied, see the Operating Manual for adjustment of the control parameters
1.
Connect the thermocouple sensor to the blue Feedback Sensor Socket on the rear panel and
position the sensor.
2.
Connect the load (heating pad or blanket) to the Low Voltage 7-pinOutput Socket on the rear of
the controller.
3
Connect the controller power cord to a suitable AC outlet.
4.
Turn on controller Power Switch (rear panel).
5.
Set the control temperature:
a) Press Function Key. SP will appear on the
display.
b) Press UP or DOWN buttons and hold until
desired control temperature is reached.
c) Press Function key again to enter new
control temperature.
SPECIFICATIONS:
Operating Range:
-128°C to +400°C
Resolution:
0.1°C
AC Input Voltage:
110-130VAC or 220-240VAC, 50 or 60Hz (see Operating Manual)
SPECIAL DISPLAY INDICATIONS:
Red lamp will be illuminated when power is being supplied to load.
VIEWING ANGLE
The two front feet can be flipped down to adjust the viewing angle. Rotate feet down and
towards the front until they lock in position. To return to original position, pull down slightly,
then rotate back.

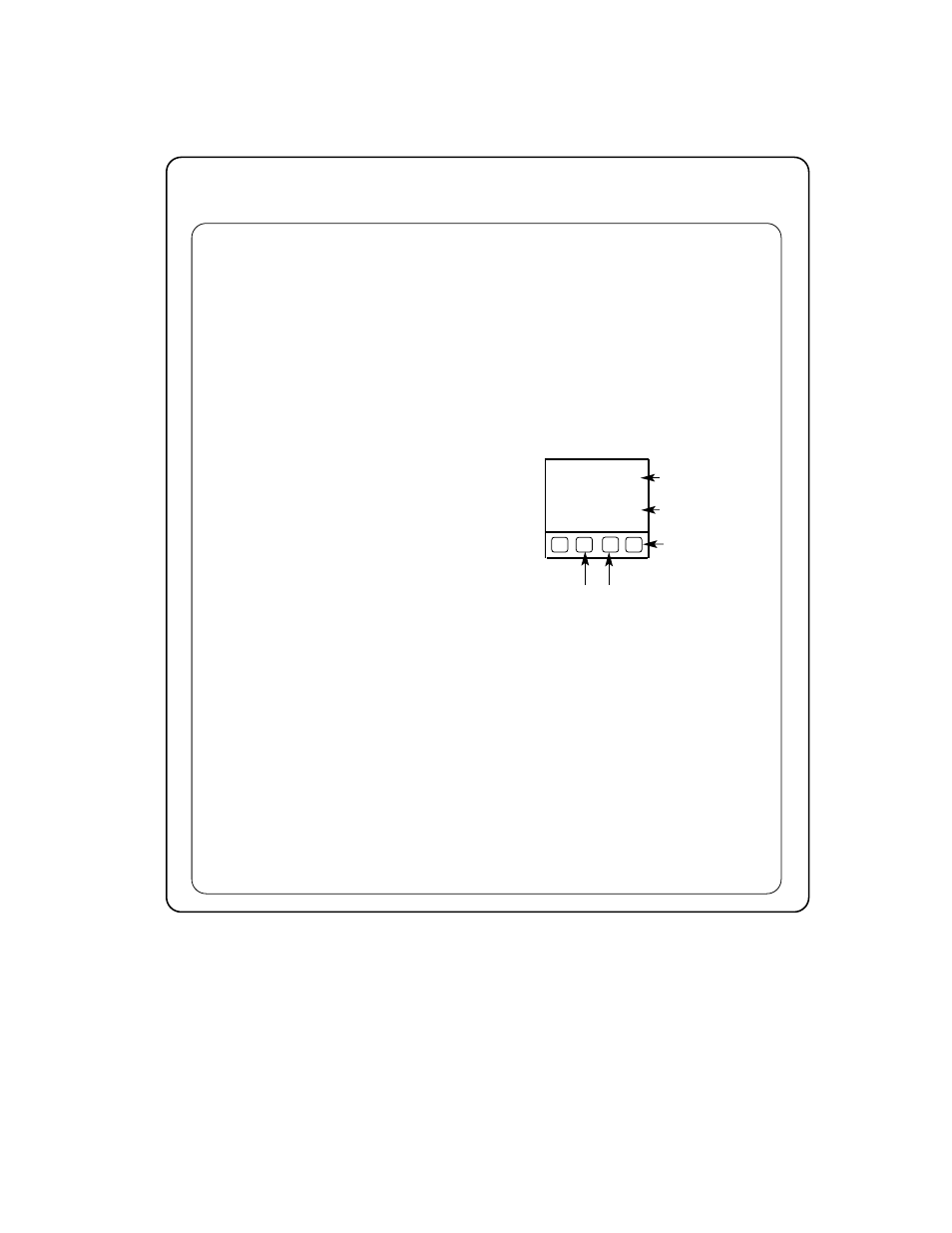

Function Key
(Scroll)
UP
-14.9
DOWN
RUN Display
SET Display
PV
SP
-15.9
