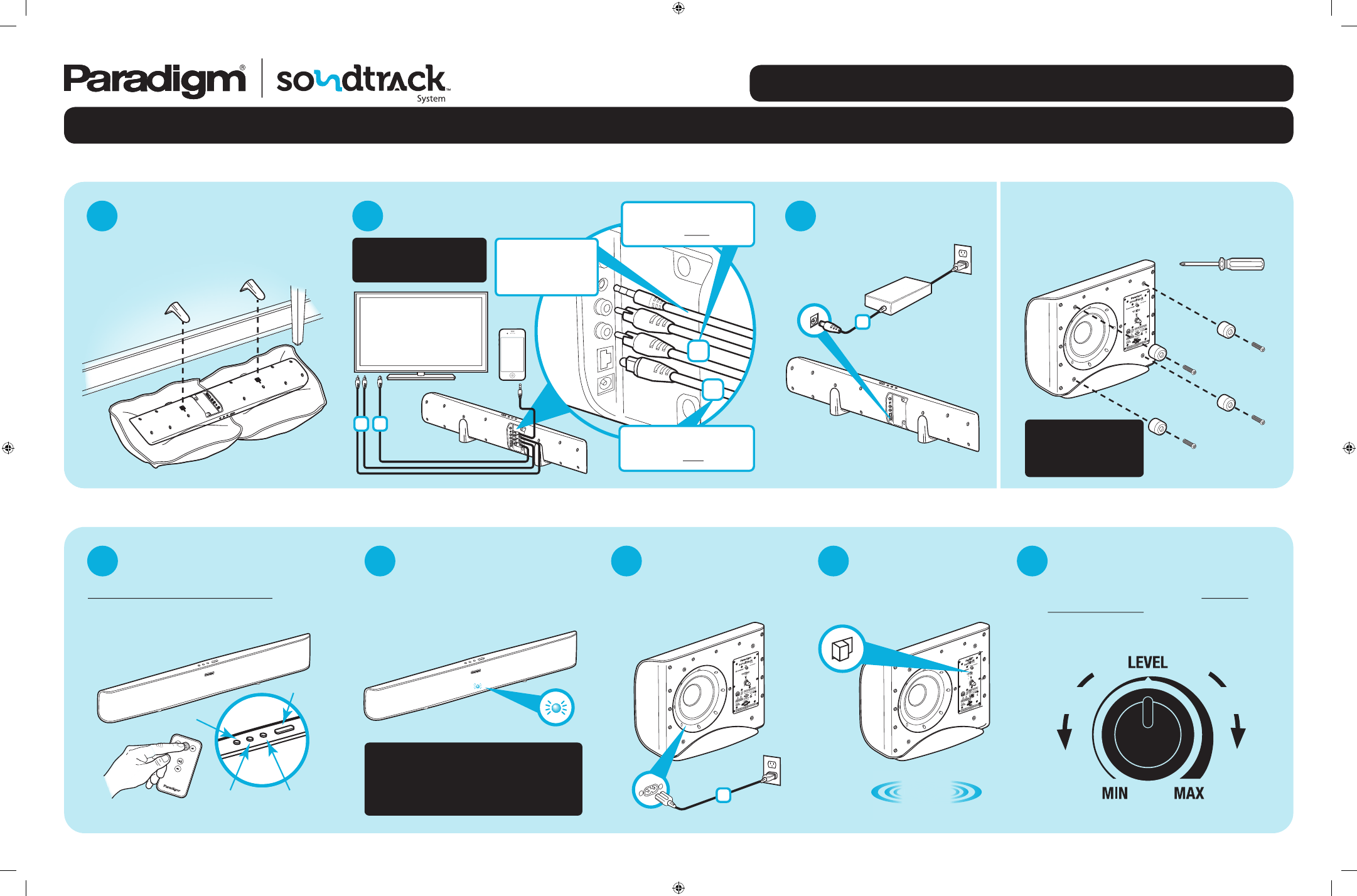

OPTIONAL Setting up the soundbar
To find your iOS version:
SETTINGS GENERAL ABOUT
If your version is not 4.3, upgrade now.
YES
NO
50’
or 15 Meters
Wireless Range
Wireless pairing
2 3 1
5
+
BASS
–
BASS
+
BASS
–
BASS
50’
or 15 Meters
Wireless Range
1 2 3 4 5
+
BASS
–
BASS
NOTE: Choose analog
OR digital connections
OPTIONAL: For wall mounting instructions, refer to Owners Manual.
3.5-mm to mobile
audio device,
not included
Connecting to source Power connection
Adjust subwoofer loundness
Analog connection to
TV (use for good audio)
Digital connection to
TV (use for best audio)
B
C
*If the soundbar Wireless Status Indicator
alternates between red and blue blinking,
pairing has failed and the process must
be repeated.
Power on, sync to subwoofer Wireless setting Power connection Wireless status indicator Adjust subwoofer loundness
Volume
Power
Input
Selector
Wireless
Sync
Attach the Feet Attach feet to subwoofer
for horizontal positioning
TV
Lay your soundbar face down on a soft
surface. Insert feet as shown, press firmly
until you hear a 'click'.
Attach the feet.
Your subwoofer’s LEVEL switch is set to 12 o’clock
to suit average preferences. If desired, adjust up or
down to match sound level of your speakers.
Move switch to “wireless”
setting on subwoofer.
Connect to power source.
Using the Remote or Onboard Interface. Turn Power
ON and repeatedly press Input Selector until you
hear audio. Press the Wireless Sync button to
initiate connection to subwoofer. NOTE: Within
15 seconds plug in subwoofer.
The Wireless Status Indicator on the soundbar
should blink blue for less than 30 seconds
and then go back to normal operation.
Your subwoofer’s LEVEL switch is set to 12 o’clock
to suit average preferences. If desired, adjust up or
down to match sound level of your speakers.
Connect to power source.
C
A
B
E
Feet must be
attached for heat
dissipation clearance
#2 Phillips
(not supplied)
2
*If the soundbar Wireless Status Indicator
alternates between red and blue blinking,
pairing has failed and the process must
be repeated.
Wireless status indicator
The Wireless Status Indicator on the soundbar
should blink blue for less than 30 seconds
and then go back to normal operation.
1
Power on, sync to subwoofer
Volume
Power
Input
Selector
Wireless
Sync
Using the Remote or Onboard Interface. Turn Power
ON and repeatedly press Input Selector until you
hear audio. Press the Wireless Sync button to
initiate connection to subwoofer.
50’
or 15 Meters
Wireless Range
4 3
Wireless setting Power connection
Move switch to “wireless”
setting on subwoofer.
Connect to power source.
D
