Figure 4.3 – Secondary Air Tube replacement
4.6 Fan Maintenance & Care
Clean the fan air inlet louvres and squirrel cage impeller regularly. The fan should be kept clean and
dust free. Life of the fan will be shortened if operated in a dust filled environment, or if the fan is
overheated by restricting air supply. Stalling the rotor, or over firing the insert with the fan turned off
will also damage the fan. The fan must not be overheated. Do not disassemble the fan.
"ALTERING
OR TAMPERING WITH THE FAN WILL VOID THE WARRANTY".

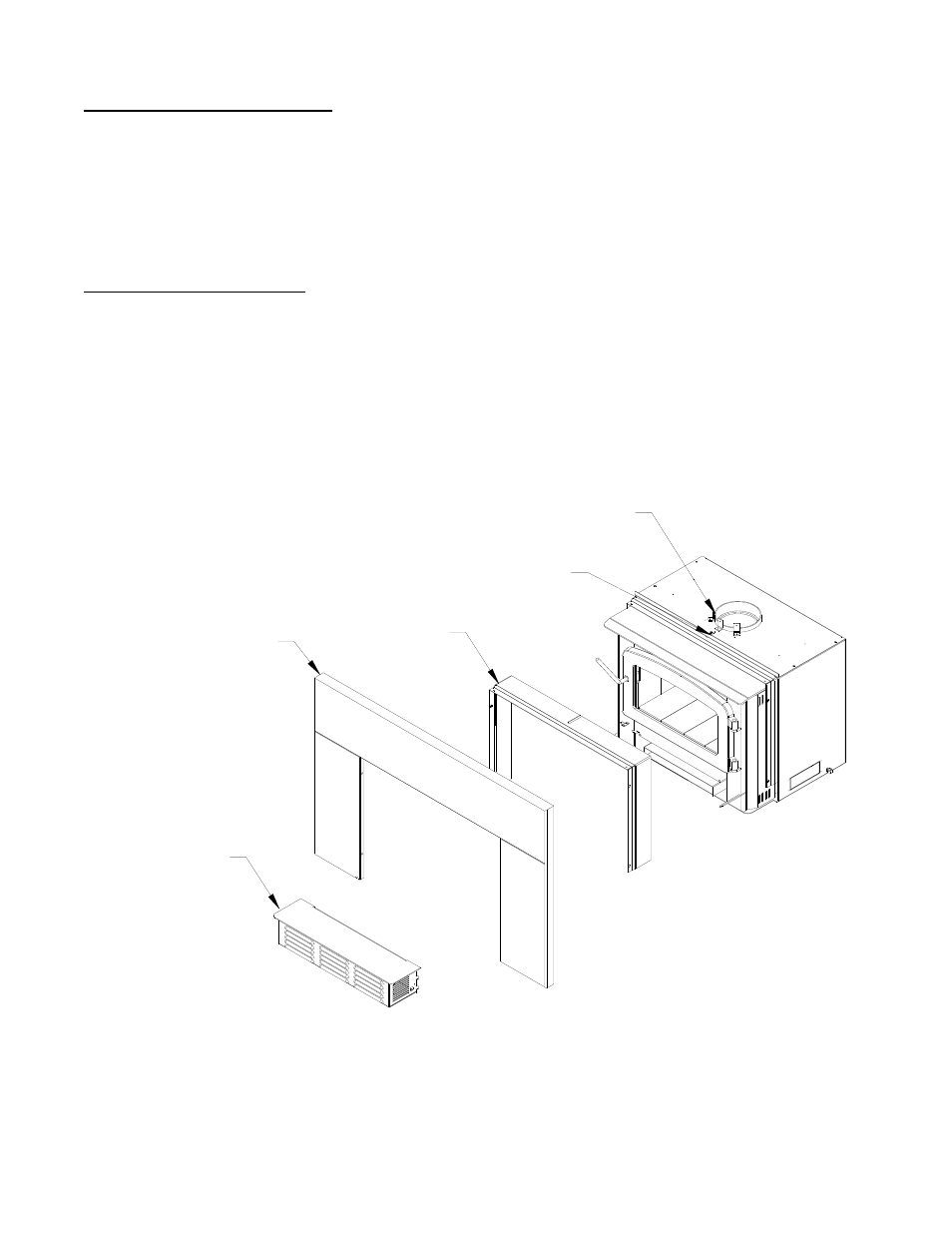

4.7 Removal instructions
To remove your insert :
• Unscrew the faceplate fastener holding the faceplate to the faceplate extension
• Remove faceplate by pulling on it
• Remove faceplate extension
• Unclip the blower assembly
• Remove the three screws securing the pipe connector
FACEPLATE
FACEPLATE
EXTENSION
BLOWER
ASSEMBLY
FACEPLATE
FASTENER
CONNECTOR
BRACKETS
