Wireless Driveway Alarm Instruction Manual • 03.04.12
3

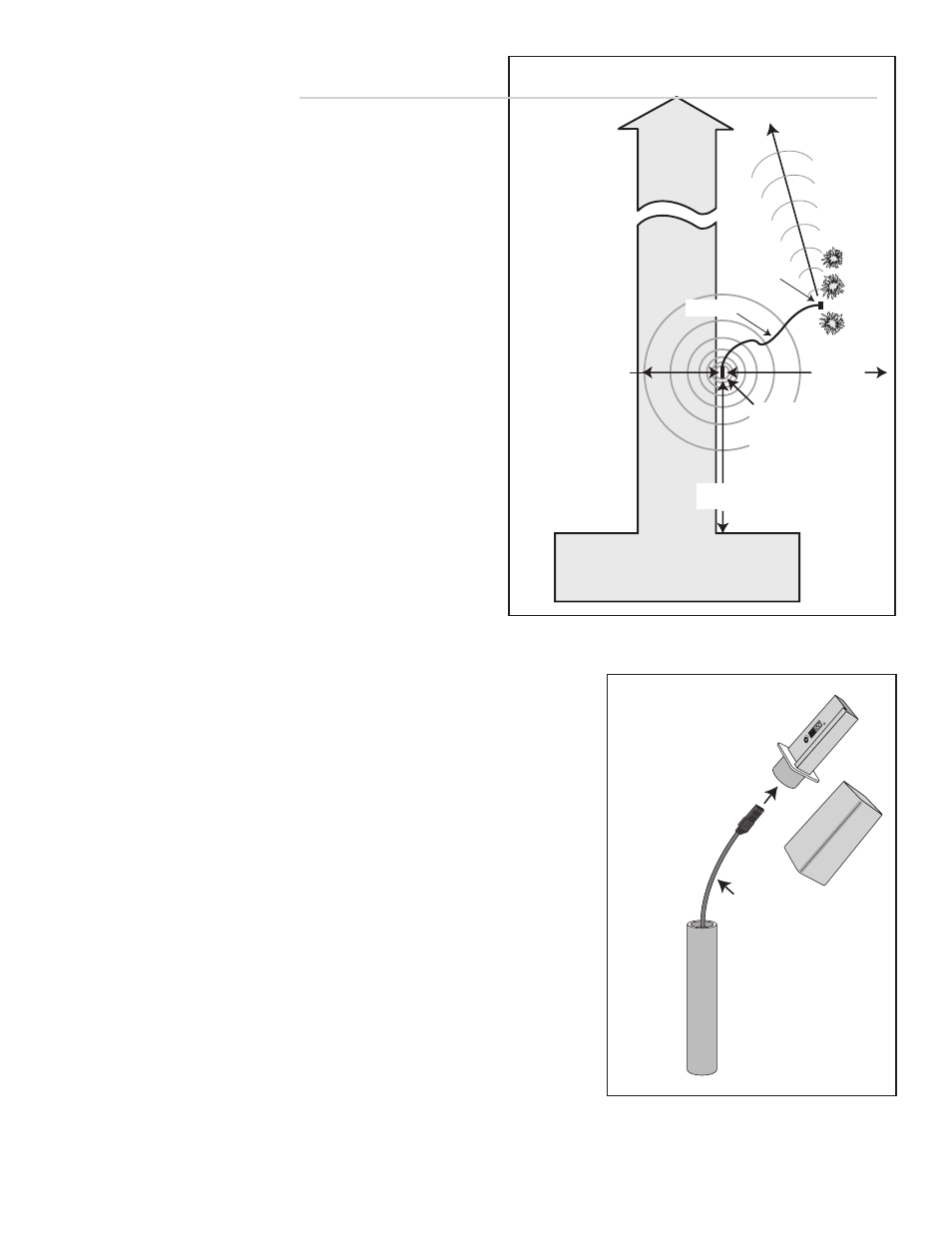

Sensor Placement
Determining Sensor Location
IMPORTANT: Clear an area 25 ft. in all directions of
metal tools, toys and automobiles, to prevent magnetic
disturbance during testing and installation.
• Determine the optimum location for the SENSOR
using the information found in “Installation
Overview.”
• Dig a hole approximately 1 ft. deep and 1 ft. long
within 2 ft. and parallel to the edge of the driveway.
• Place the SENSOR flat in the hole and parallel to
the driveway.
• Keep the SENSOR and the cable uncovered at
this time.
DRIVEWAY
HOUSE or BUILDING
where RECEIVER is located
ROADWAY
TRANSMITTER
400 ft. Max
Wireless
SENSOR RANGE:
12 ft. radius (max)
SENSOR:
2 ft. from
driveway (max)
and 1 ft. deep
25 ft. from
neighbor’s
driveway
25 ft. from
roadway
Signal Cable
• Choose a location for the TRANSMITTER module that is far
enough from the driveway edge that vehicles are unlikely to
hit it.
• Run the SENSOR cable through the PVC mounting post and
plug it into the connector at the bottom of the Transmitter
module.
• Leave 2” to 3” of slack in the cable to prevent damage to the
connector when the transmitter is removed.
• Test the chosen location before permanently trenching
and setting the TRANSMITTER (see “Placing Receiver and
Testing System” section).
Transmitter Placement
Determining Transmitter Location
Connect Sensor Cable
to Transmitter Module
Leave 2” to 3” of slack
in the Sensor Cable
MIN
MAX
SENSITIVITY
TRANSMIT
TER CODE TRANSMIT
TIN G
