980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858 Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
N
6/
N
10
/N
14
Fr
ee
-S
ta
n
d
in
g
S
el
f-
C
on
ta
in
ed
M
ilk
O
r
Be
ve
ra
g
e
D
is
p
en
se
rs
Printed in the U.S.A.
MSN6_10_14
07/08
Delfield reserves the right to make changes to the design or specifications without prior notice.
Specifications
Model Unit Height
Crate
Capacity H.P. Amps BTU Load BTU Capacity Ship Weight
N6-1313-34 34” (86.4cm) 6 1/4 5.0 250 1170 382 lbs/ 173 kg
N6-1313-36 36” (91.4cm) 6 1/4 5.0 250 1170 402 lbs/ 182 kg
N10-1313-34 34” (86.4cm) 10 1/4 5.0 350 1320 545 lbs/ 247 kg
N10-1313-36 36” (91.4cm) 10 1/4 5.0 350 1320 565 lbs/ 256 kg
N14-1313-34 34” (86.4cm) 14 1/4 5.0 460 1420 650 lbs/ 295 kg
N14-1313-36 36” (91.4cm) 14 1/4 5.0 460 1420 670 lbs/ 304 kg
54.50"
138.4cm
32.00"
81.3cm
16.00"
40.6cm
D=DRAIN
19.75"
50.2cm
D
73.00"
185.4cm
32.00"
81.3cm
16.00"
40.6cm
D=DRAIN
29.12"
74.0cm
D
36.00"
91.4cm
32.00"
81.3cm
16.00"
40.6cm
D=DRAIN
10.50"
26.7cm
D

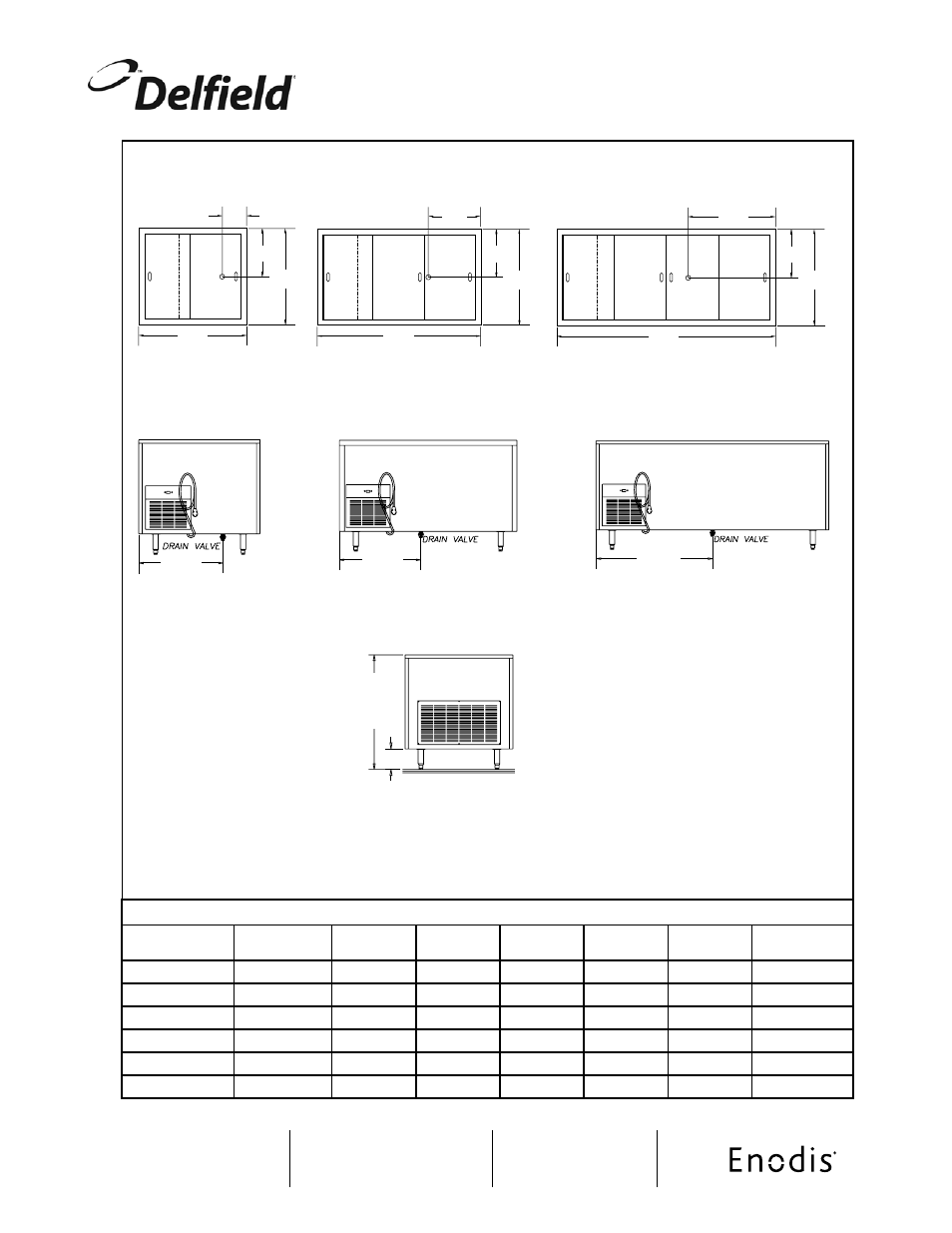

PLAN VIEW
MODEL N6-1331-34
& N6-1331-36
PLAN VIEW
MODEL N10-1331-34
& N10-1331-36
PLAN VIEW
MODEL N14-1331-34
& N14-1331-36
ELEVATION VIEW
MODEL N6-1331-34
& N6-1331-36
ELEVATION VIEW
MODEL N10-1331-34
& N10-1331-36
ELEVATION VIEW
MODEL N14-1331-34
& N14-1331-36
25.5”
64.77cm
34.75”
88.26cm
43.88”
111.45cm
END VIEW
ALL MODELS
34.00”
86.4cm
or
36.00”
91.4cm
6.12”
15.54cm
Drain valve with
garden hose
hookup.
