Marsh

11

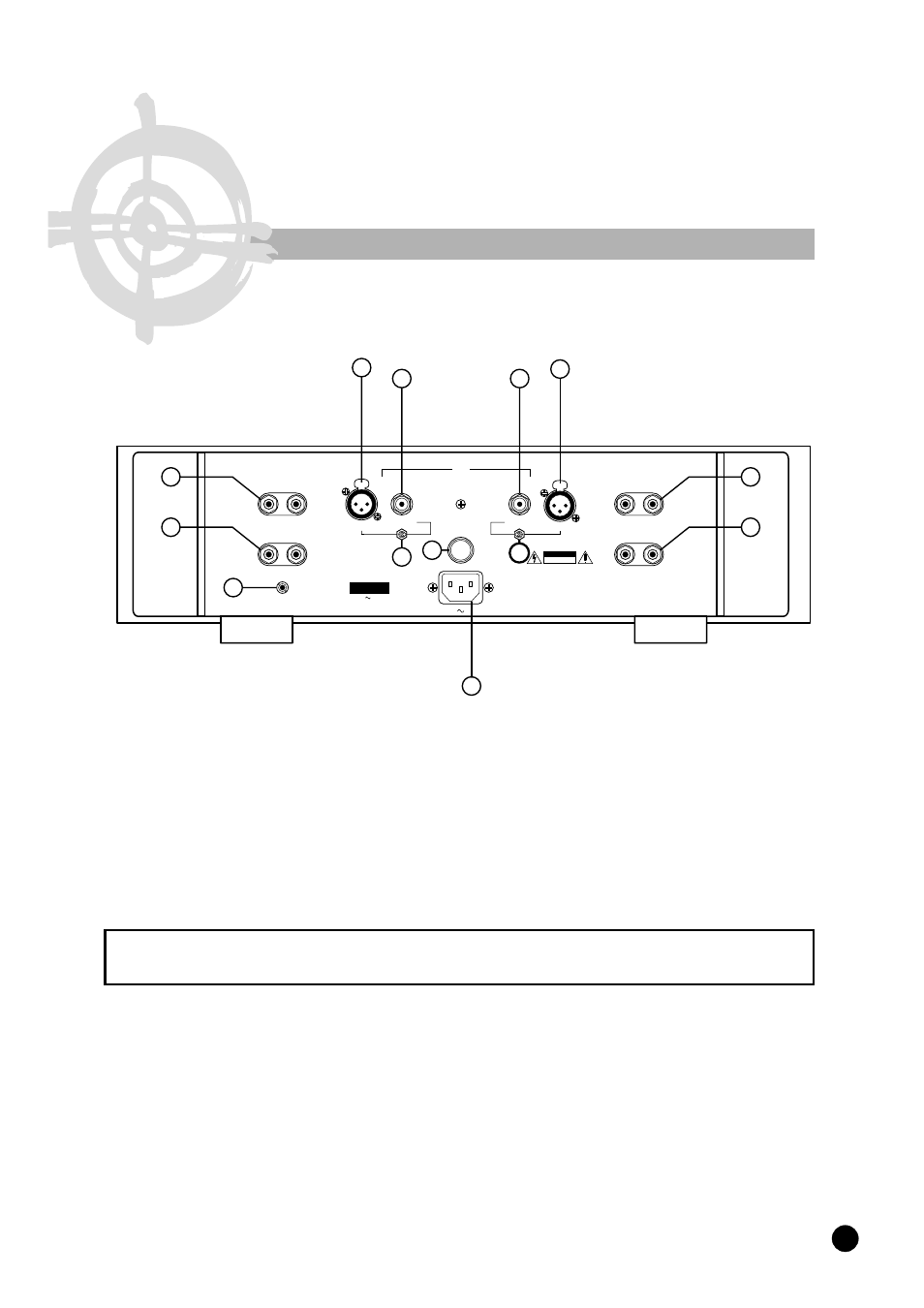

1. UNBALANCED INPUTS

Receive signals from unbalanced preamplifier outputs.

2. BALANCED INPUTS

Receive signals from balanced preamplifier outputs.

3. INPUT SELECTOR SWITCHES Select according to the type of inputs being used.

4. MAIN FUSE

If there is a problem with the fuse, replace with a fuse of the same

type and rating.

5. POWER

Connect the MSD-A200S to the outlet with the enclosed power

cord.

6. REMOTE IN

This is a digitally controlled input designed to receive +12VDC

from others MARSH SOUND DESIGN preamplifiers with

remote Turn on capability or from other equipment e.g. power

control center. With this function, the MSD-A200S can be

powered ON/OFF synchronized with that equipment.

7. SPEAKERS

Output signals to speakers. The MSD-A200s has 2 output

connections for each channel. It is designed to be used with a pair

of bi-wire speakers.

IMPORTANT:

Operate the unit only from the power source of the appropriate voltage indicated on rear

panel.

Connections

3

SPEAKERS

SPEAKERS

BI-WIRED

BI-WIRED

A

A

B

B

RIGHT

LEFT

LEFT

RIGHT

BALANCED

BALANCED

UNBALANCED

UNBALANCED

INPUTS

REMOTE IN

8A SLO-BLO

Marsh

MODEL

: MSD- 200

A

S

POWER AMPLIFIER

SERIAL

NUMBER

POWER CONSUMPTION : 600 W MAX

60 Hz

AC 120 Volts

PUSH

PUSH

TO PREVENT FIRE AND SHOCK HAZARD, DO NOT

EXPOSE THIS DEVICE TO RAIN OR MOISTURE.

- DO NOT OPERATE WITH COVERS REMOVED -

CAUTION FOR CONTINUED PROTECTION

AGAINST FIRE HAZARD, REPLACE ONLY

WITH SAME TYPE AND RATING FUSE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS

: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

WARNING

CAUTION

FUSE

1

1

5

2

2

3 4

6

7

7

7

7
