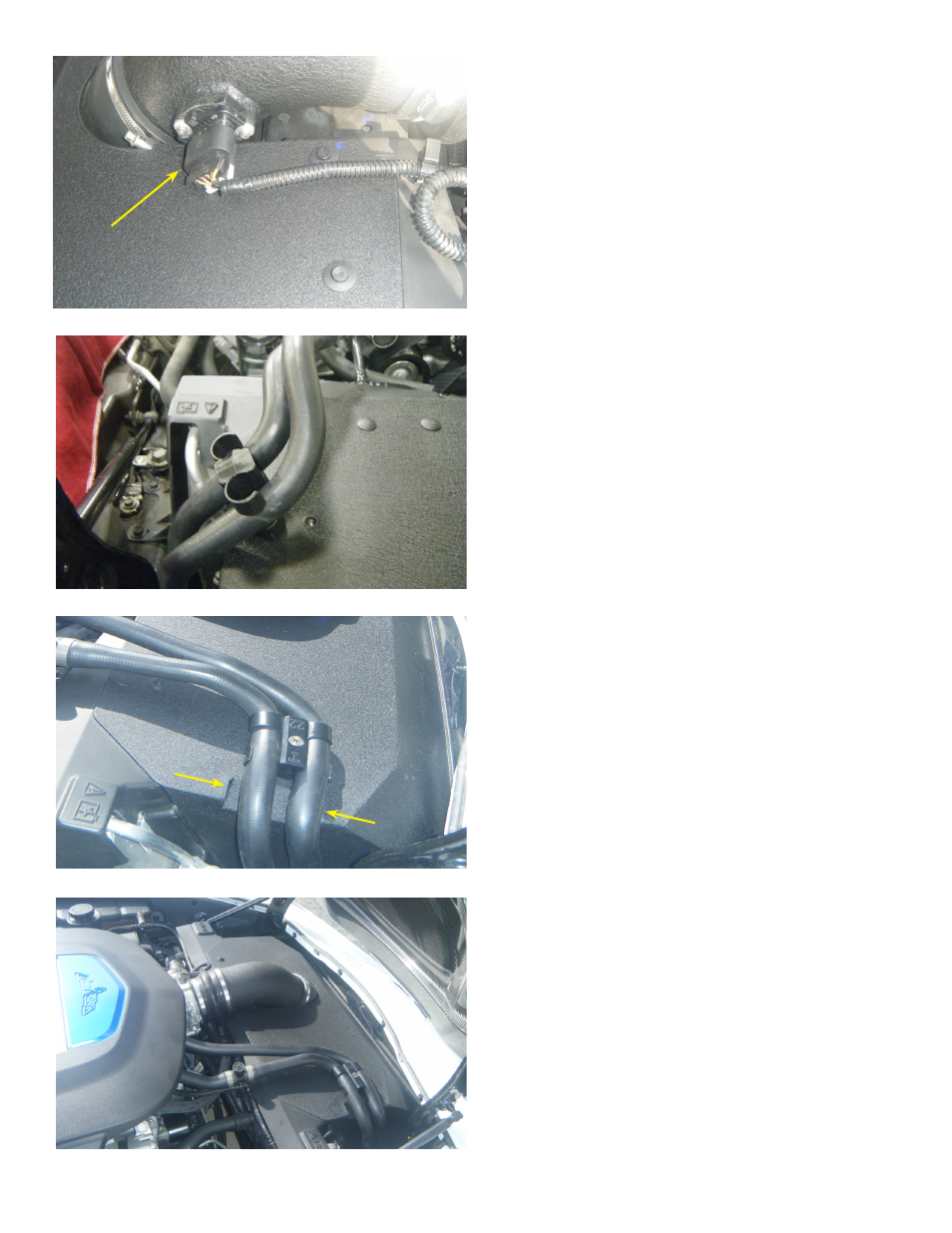

36. Connect the MAF sensor wiring harness
connector to the MAF sensor.
11.
37. Place the plastic coolant hose retaining
clip over the intercooler hoses on the passenger
side of the airbox.
38. Using a 5 mm Allen wrench or socket,
secure the hose retaining clip with the supplied
M6x1.0x40 counter sunk stainless bolt to the
threaded insert in the airbox assembly. Make
sure that the hoses run over the channel on the
corner of the airbox. The channel (shown by
the yellow arrows) is designed to eliminate the
possibility of cutting or kinking the hoses on the
edge of the airbox.
39. Congratulations - you have completed the
installation of the Lingenfelter ZR1 Air Intake
System.
