Install top radiator shroud ensuring it engages fan shroud in
the center as shown.
Tuck water hose back into holders on shroud, secure with four
bolts previously removed.
The following steps need to be done from underneath the
vehicle:
• Replace the previously removed four factory Christmas tree
fasteners retaining the shroud to the plastic side panels (two
per side).
•
Replace the five 7 mm head screws previously removed.

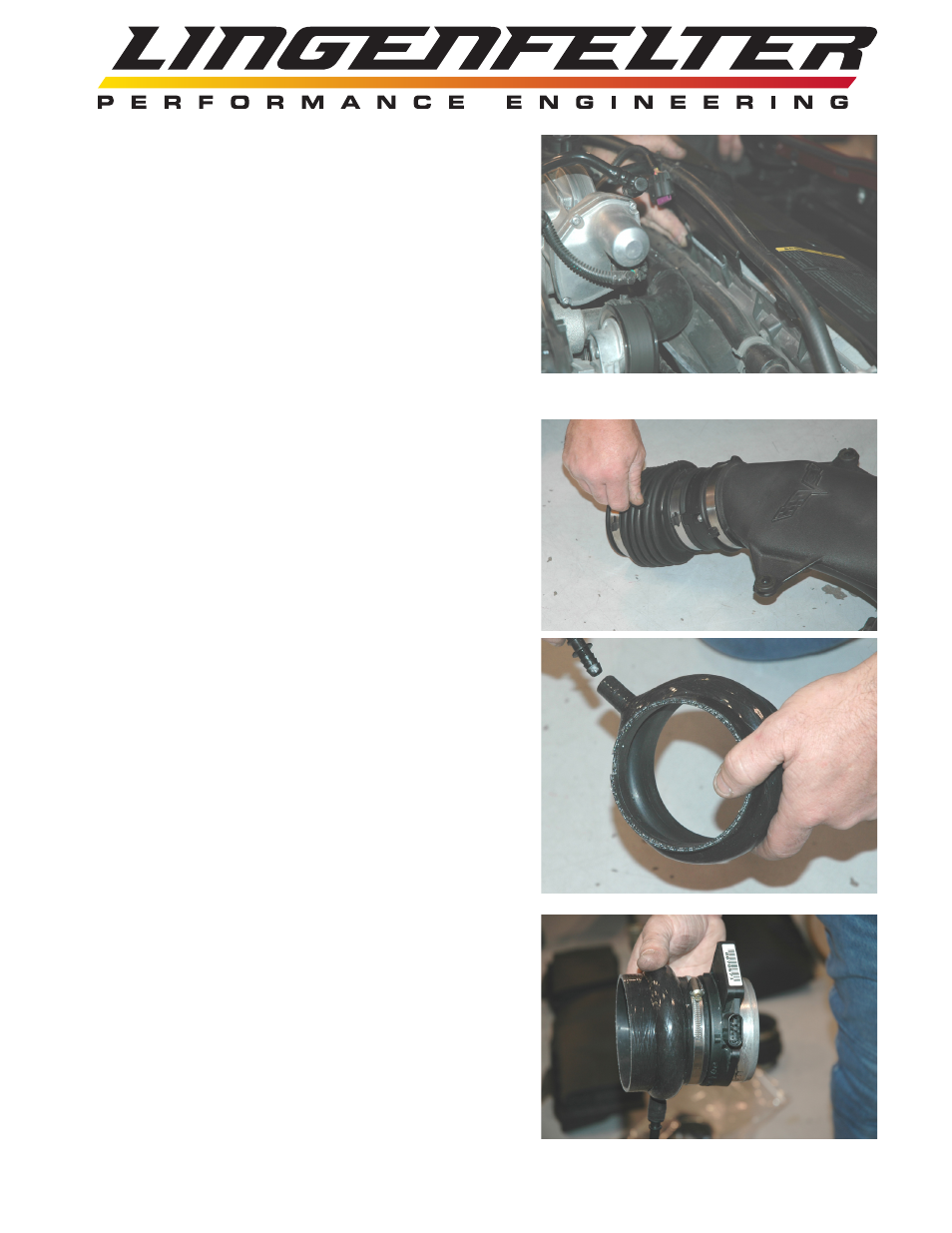

Remove the 3/8” barbed plastic quick couple from the accor-
dion section of your stock air intake system (see picture).
Install the quick coupler into the silicone hump hose by push-
ing the barbed side into the 3/8” nipple on the hump hose. Do
not use lubricant.
Install 90-110 mm clamp over the notched side of the hump
hose and install the black plastic side of the MAF sensor into
the hump hose. Be sure to align the cut out notch on the
hump hose with the protrusion on the MAF sensor.
The clamp must be in the position shown and tightened at this
time.
