Installation:

1. Slide a supplied cable seal on each of the microswitch wires.

2. Crimp a supplied female terminal to each of the microswitch wires that you installed a cable seal

onto in the last step.

3. Insert the terminated wires into the female connector.

4. Repeat steps 1-3 for the male connector, with the exception of installing a cavity plug in place of

any wire that will not be used to enable a device.

5. Connect the switch inline with the device to be enabled.

6. Mount the microswitch in a location that will allow the microswitch to enable the device at the

desired pedal or throttle body position.

Lingenfelter Performance Engineering

1557 Winchester Road

Decatur, IN 46733

(260) 724-2552

(260) 724-8761 fax

www.lingenfelter.com

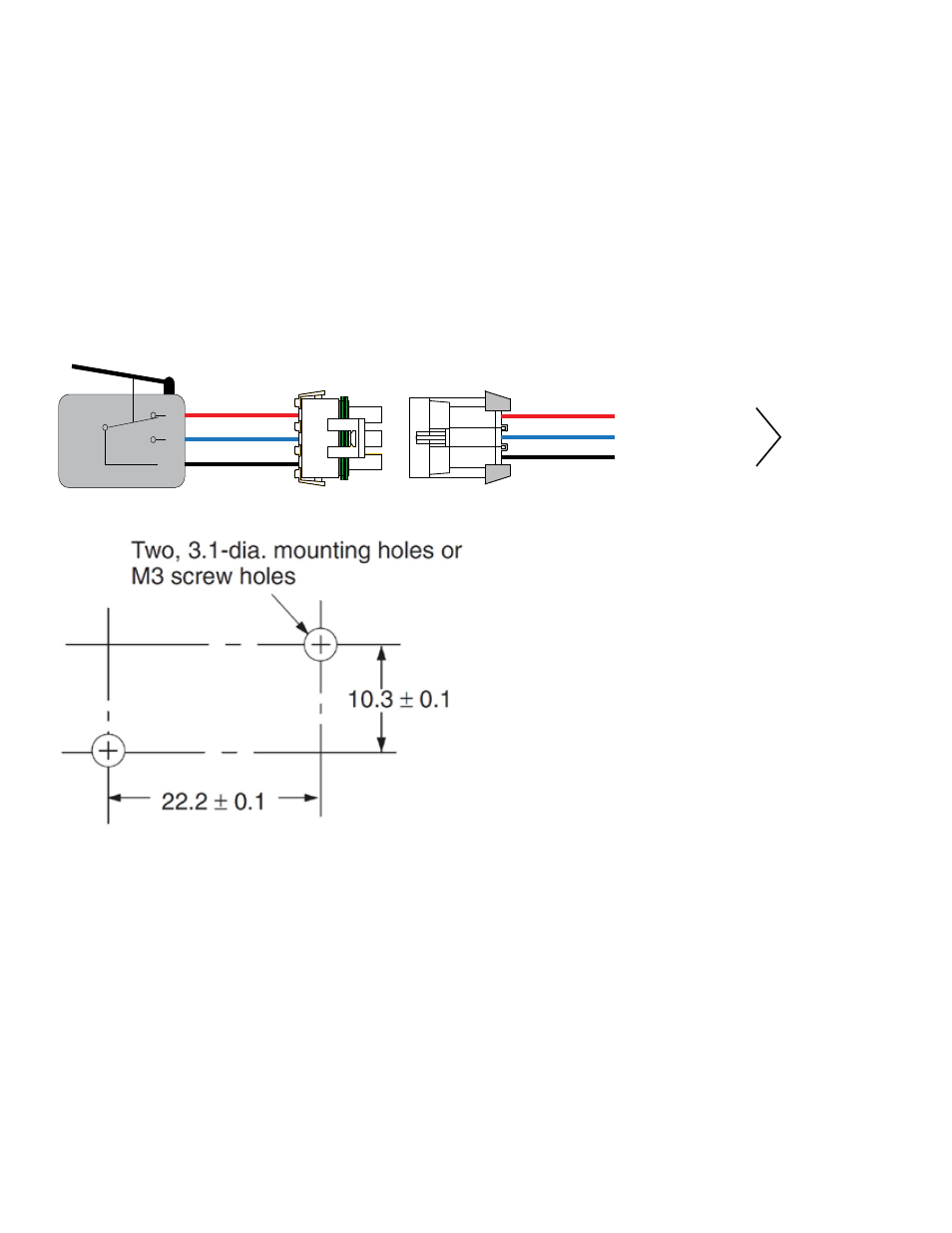

Mounting dimensions

Normally Closed (NC)

Normally Open (NO)

Common

NO

NC

COM

Inputs/outputs

can be voltage

or ground

Microswitch pin-outs:

For additional product installation information and technical support, contact LPE or your LPE

products distributor. You can also find technical support and usage discussions regarding

this product and many other LPE products in our Internet forums:
http://www.lingenfelter.com/LPEforumfiles
