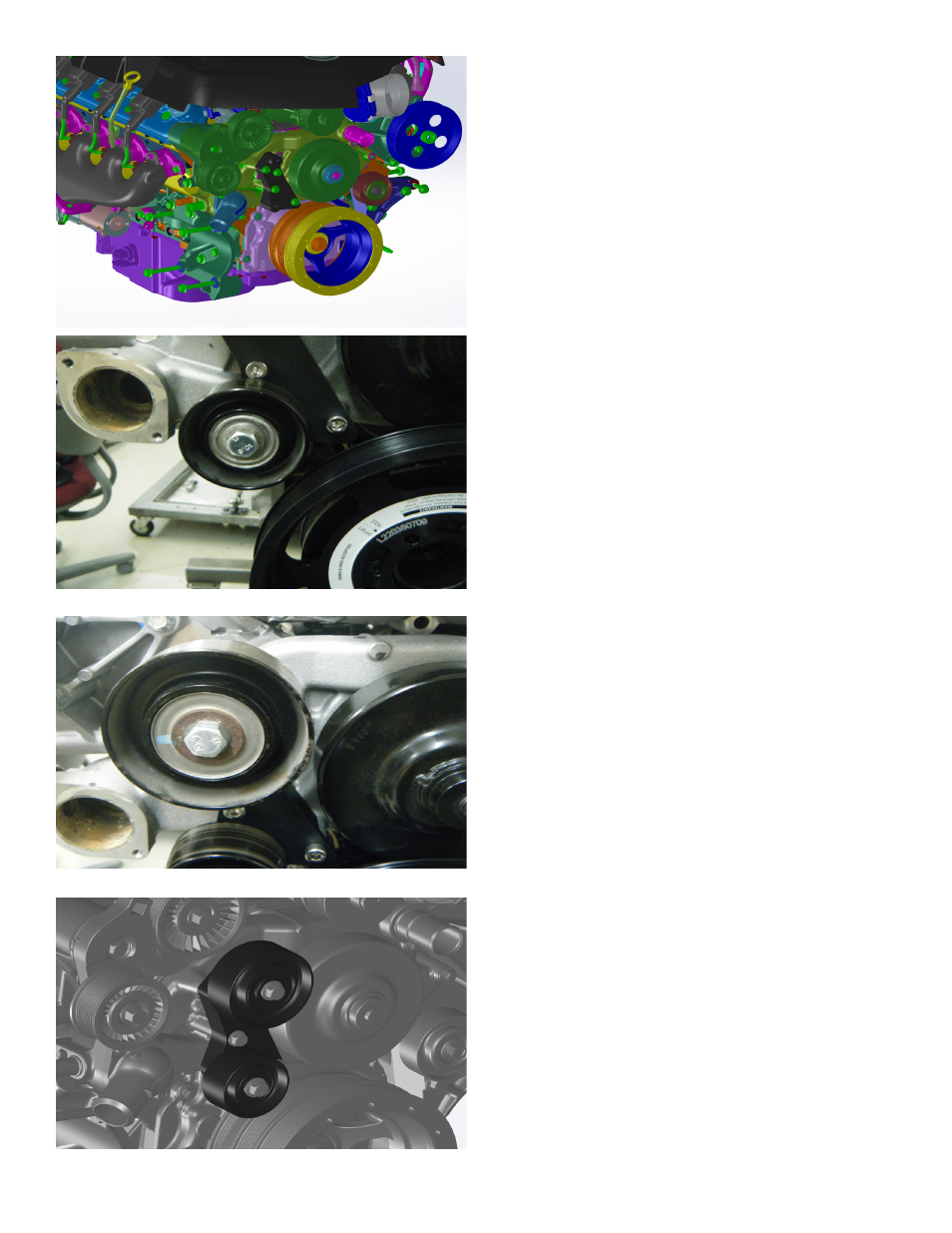

5. Install the LPE-supplied idler pulley relocation
bracket onto the water pump at the same
location where the stock idler pulley bracket
once was. Torque the fasteners to 37 ft-lb (50
N·m).
6. Install the lower idler pulley. If you are
reinstalling the stock 70mm lower idler pulley,
the stock bolt can be reinstalled using a 13mm
socket. Installing an aftermarket idler pulley
will require the use of a pulley spacer. If
you are installing a LPE 76mm idler pulley,
install the .200” spacer (PN: ATI915992) and
M10x1.5x60mm socket head cap screw (PN:
47559) that is supplied in the LPE idler pulley
kit. Use an 8mm Allen socket to tighten the
socket head cap screw. Torque the bolt to 37
ft-lbs (50 N·m).
7. Install the upper idler pulley. If you are
reinstalling the stock 90mm upper idler pulley,
the stock bolt can be reinstalled using a
13mm socket. Installing an aftermarket idler
pulley will require the use of a pulley spacer.
If you are installing a LPE 76mm, 90mm, or
100mm idler pulley, install a .350” spacer(PN:
ATI915993), which is available for purchase
through LPE. Use an 8mm Allen socket to
tighten the M10x1.5x60mm socket head cap
screw Torque the bolt to 37 ft-lbs (50 N·m).
8. Reinstall all other components removed
to provide the necessary clearance for the
bracket installation.
Installation of the LPE LSA idler pulley
relocation bracket is now complete.
