Chapter 3: Getting Started
Product Service 1-800-522-7658 16
16

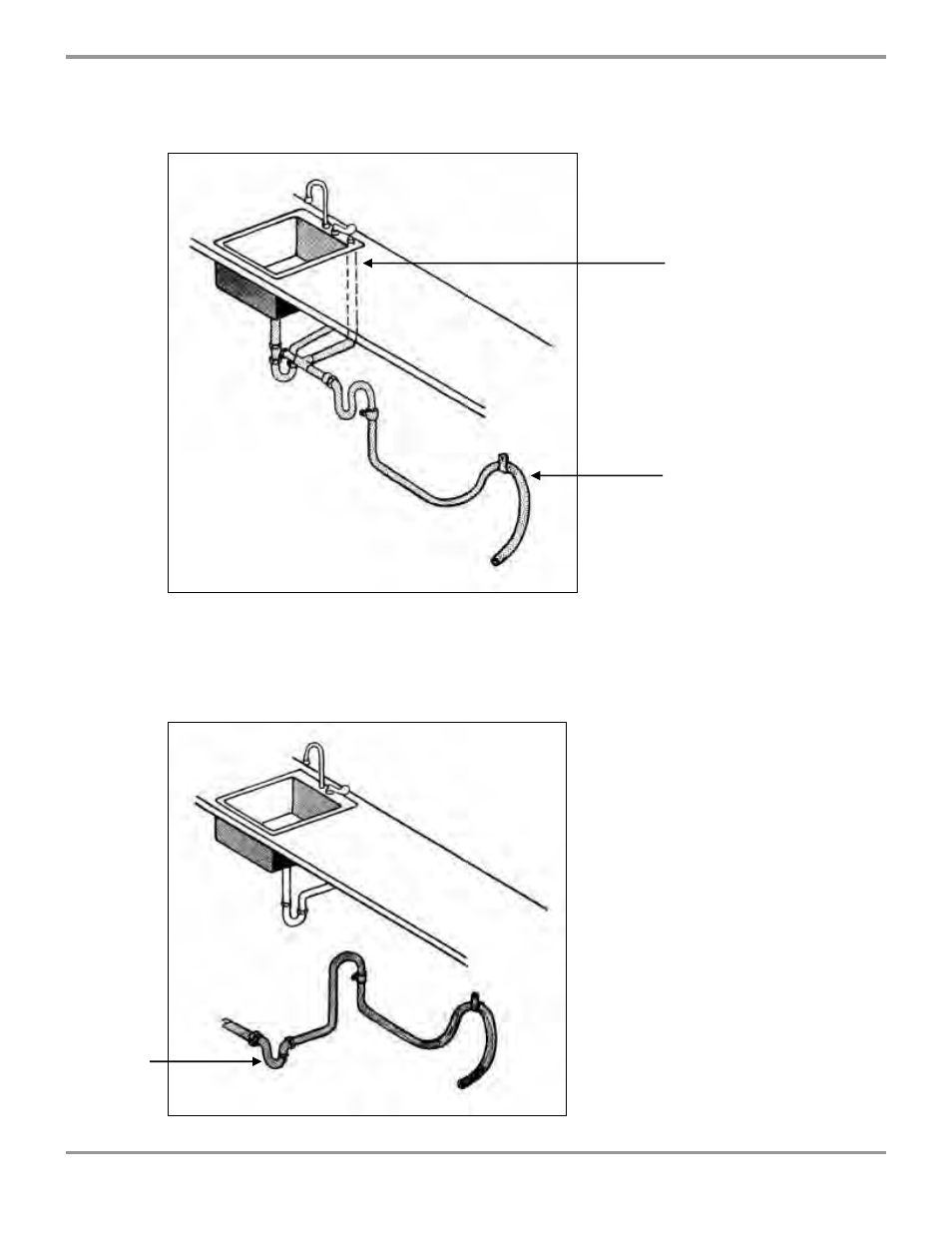

If you route the drain piping to a sink drain and use an air gap, refer to the figure
below for the placement of the air gap.
If you route the drain piping to a floor drain, refer to the figure below for
placement of the drain tubing and trap.
Air gap
Drain line
Drain trap
