7. Fan grill filters
A grille with foam filters is located on the front panel to prevent dust from entering the amplifier. The
grille is removable for easy cleaning of the filter by simply pulling them off. The foam filter should always
be used.
8. Carry/protection handle
Both handles can be used to carry the amplifier; they also act as protection for the front panel. In fixed
installations or where rack front covers are too shallow, they may be removed by unscrewing the
retaining bolts behind the front panel.
QKP= oЙ~к=m~åÉä=

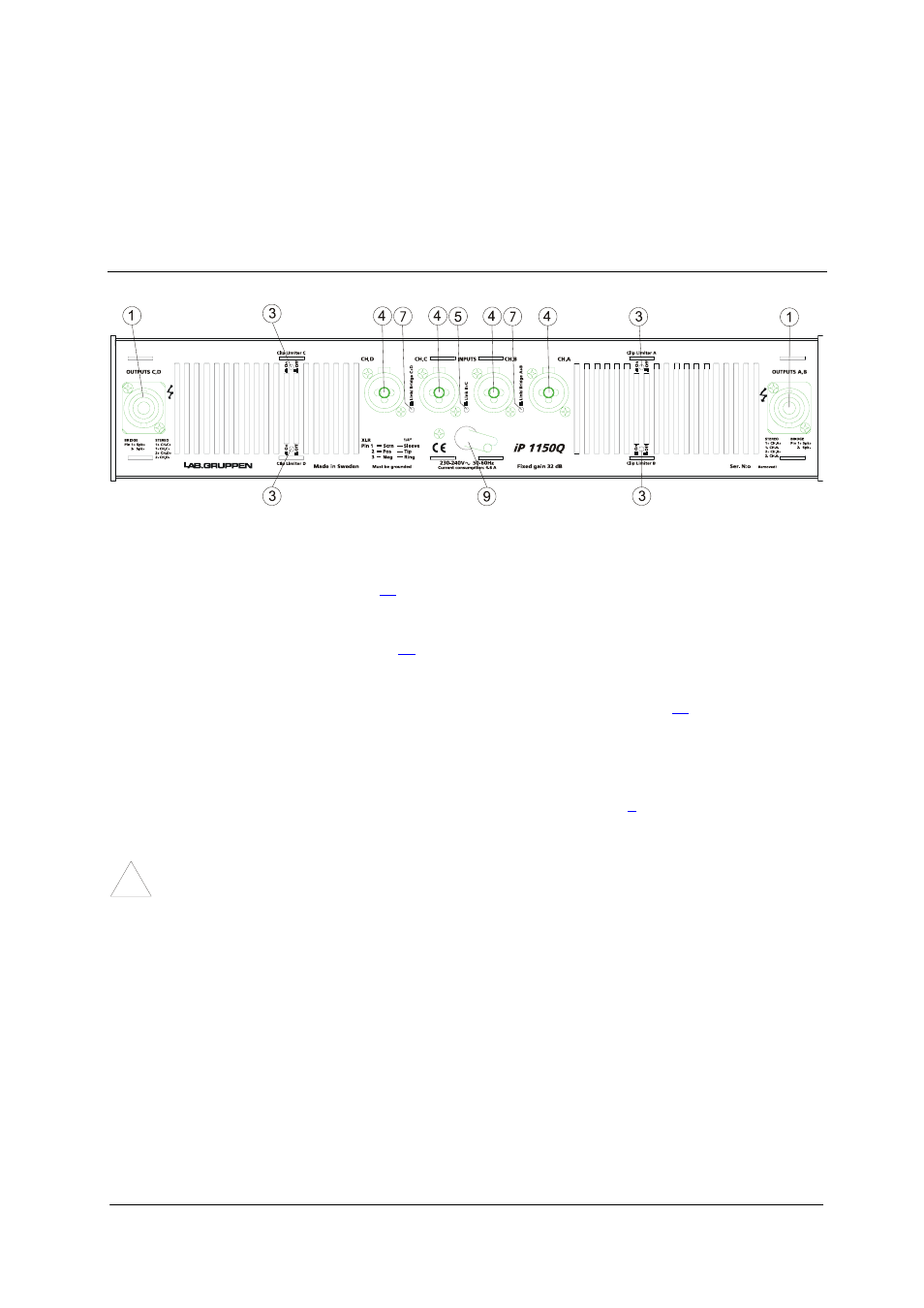

Figure 2. Rear Panel
1. Output / Speaker connector
The Speakon connector from Neutrik® may be unfamiliar to some users. A full description can be found
in the “Connections” section. (See page
11 )
3. Clip limiter switch
Turns the clip limiter on or off. (See page
13 )
4. Input signal XLR.
Neutrik® Combojack features also ¼” TRS phone jacks. (Pin 2 is “hot”, see page
10 )
5. Link switch. Allows a single input to drive channels B and C simultaneously.
7. Link and Bridge switch. Allows a single input to drive channels A and B and/ or channels C and D
simultaneously. Also used for bridged operation of channel pairs (See page
6 ).
9. AC power cable. WARNING!
A label just below the mains cable on the rear of the amplifier indicates the AC mains
voltage, for which the amplifier is wired. Connect the power cable only to the AC source
referred to on the label.
!
