12
Digital Signal Processing.

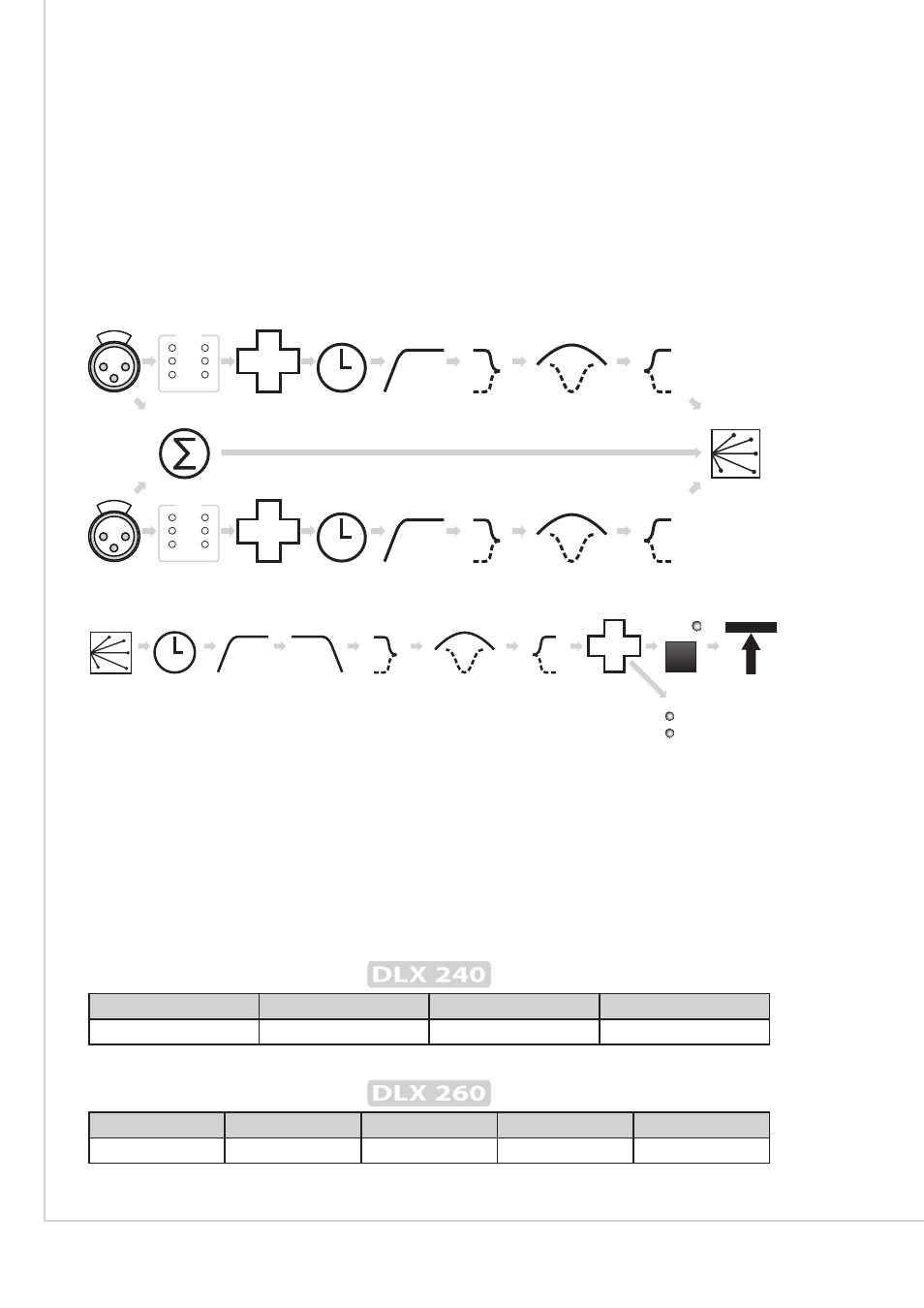

INPUT DSP BLOCK DIAGRAM
Input
PK
+4dB
SIG
A B
METERS
Gain
Delay HPF High Shelf Low Shelf 6 x Parametric EQ
Input
PK
+4dB
SIG
A B
METERS
Gain
Delay HPF High Shelf Low Shelf 6 x Parametric EQ
Sum (-6dB) Routing
OUTPUT DSP BLOCK DIAGRAM
Gain
Delay HPF LPF High Shelf Low Shelf 6 x Parametric EQ Routing Limiter MUTE
Meters
LIMIT
-6dB
STEREO / MONO FORMATS
Formats affect the way the above DSP modules are controlled. In Mono format, all outputs have
unique parameter settings and flexible routing.
Stereo format pairs the inputs and outputs for stereo operation, the parameters of each member
of the pair being identical. The routing of inputs to outputs is fixed. This format is intended for
symmetrical stereo operation, eliminating the need to make identical parameter adjustments for
each channel. The channel pairing is differs for four and six output units:
Left Input A Output 1 Output 2
Right Input B Output 3 Output 4
Left Input A Output 1 Output 2 Output 3
Right Input B Output 4 Output 5 Output 6
