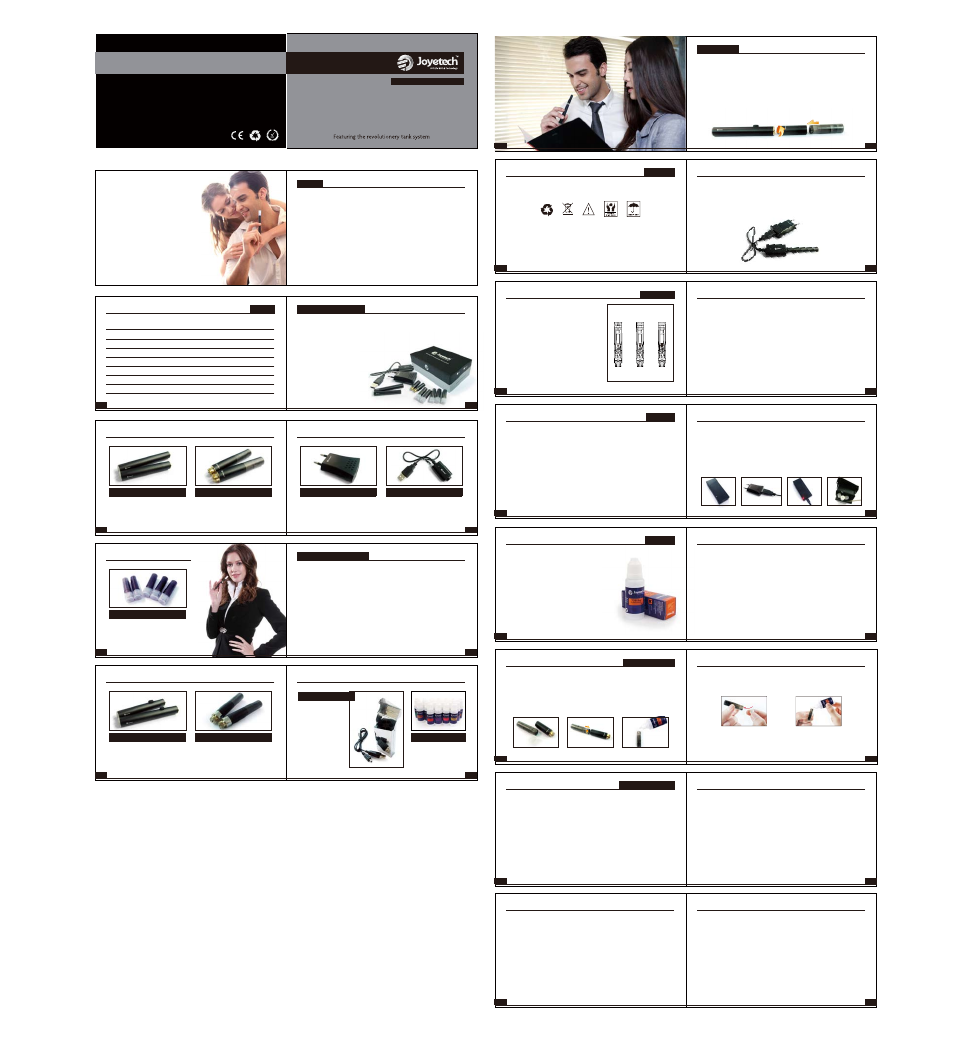

Joyetech 510/510-T - Manual

Atomizer in tank system, cone shape,
no cotton in the tank /cartridge
(510: the cartridges are Joye 510 A
type with cotton)
510-T A type tank / cartridge can hold
0.55ml liquid 510 A type tank / cartridge
can hold 0.58ml .
Joye 510/510-T manual battery Capacity:
150mAh, Charging time: 1.5H
Joye 510/510-T XLmanual battery Capacity
280mAh, Charging time: 2H
Constant voltage output:3.3V
2.1 Joye 510/510-T Battery
For convenient carrying and
charging of product while you
are out.You can carry 1 atomizer,
2pcs 510-T B cartridges, 1pcs
510 battery. Customers can carry
accessories according to their
needs, and the PCC can charge
the battery.
The parameters to charge 510
battery:4.2V, 100 mA
The parameters to charge PCC
5V, 400mA
In conjunction with a working
atomizer the liquid gets
heated to vapor. There are
different flavors for your
choice.
2.3 Joye 510/510-T PCC
2.4 Joye e-Liquid
6. P C C
1. How to assemble battery and atomizer: Thread the battery and atomizer together
to assemble. Please refer to picture.
2. Assemble the tank/cartridge: Please refer to picture. Push the tank/cartridge
straight onto the atomizer, when it is 3mm from the bottom of the atomizer, push
harder, when you feel the tank/cartridge is punctured, then spin 30°to 60°, as this
insures the tank/cartridge is in the correct place.
3. Use: Inhale the tank/cartridge while pressing the button on the battery. Do not
release the button until your mouth leaves the cartridge.
4.1 Basic performance of lithium battery: To extend the battery life, please do not subject
it to hot or humid environments. Do not throw or squeeze the battery and avoid contact
with sharp objects.
4.2 Special features of Joye 510-T battery: The Joye 510-T battery is a rechargeable,
energy saving battery. It has a constant output of 3.3V and has safety protection. It usually
takes 2-4 hours to fully charge (the charging time differs according to the battery). The
510-T battery has protection to prevent overcharging and when the battery is fully
charged, charging will stop automatically.
4.3 Power off: If the LED starts flashing while you are using the electronic cigarette, it
indicates that the battery needs to be charged.
4.4 Charging the Joye 510T 220mAh,340mAh battery: To charge the battery, screw the
threaded side of the battery to the usb charger and then connect the usb port to the wall
adapter or the computer. The LED light on the button will flash 5 times, then go out, and
the LED on the usb charger will turn red, indicating the battery is charging. When the LED
light on the charger turns green, it means the charge is complete.
5.1 The Atomizer uses heat to atomize the liquid.
The normal working temperature is 200℃. The
liquid in the tank / cartridges reaches the heating
device with assistance from inhale pressure.
The heat generated by energizing the heating
coil turns that liquid to vapor. If there is more
liquid flowing into the atomizer than can be heated
to vapor, it will lead to slight leakage, if there is
not enough liquid in the atomizer, then a slightly
burnt taste will result.
These are normal conditions, because people
have different smoking habits. 5.2 After using the atomizer for a period of time, there will be accumulation on the internal
components due to carbonization and impurities.
At this point the average vapor will lessen or you will need to inhale harder. Customers can
put the atomizer into an ultrasonic cleaner for a few minutes, and put the atomizer aside
to dry for a few hours. Do not restart use until the atomizer is fully dry. This cleaning
method is used to get rid of the internal impurities in the atomizer and improve the
efficiency.
6.1 There is a chargeable 1300mAh lithium battery in our Joye 510-65 PCC. The external
charging interface is a standard Mini USB port, which is very common. The PCC can hold
1 atomizer, 2pcs 510 cartridges, 1pcs 510-65 battery. There are 3 LED indicator lights by
the USB port.
6.2 Charging the Joye 510-65 PCC Joye 510-90 PCC : When the PCC is charged with
an external adapter (output is a USB interface) or usb interface in the computer, the input
voltage is 5V. The LED light is red when it is charging and will turn green when the charge
is finished. Disconnect from the external adapter or computer and the light will go out. You
can charge the PPC and 510 battery at the same time. It takes about 4 hours to fully
charge the Joye 510-65 PCC. In theory, a fully charged PCC can charge 5 220mAh
batteries before the PCC requires a recharge.
6.3 Indication of low power: When the voltage of the internal battery is less than 3.3V, the indicator light will be red, indicating the PCC needs to be charged. At this time, the PCC
will stop charging the battery automatically.
6.4 Charging the 510 battery with the Joye 510-65 PCC: To charge a battery, screw the
battery to the charging port. The battery will flash rapidly 5 times and then go out(except
the 510-T battery). Close the PPC and as shown in the picture, the first LED light will be
red which means charging has begun. It usually takes about 2.5 hours to charge the 510
(180mAh) battery.
7.1 Joyetech's liquid nicotine bottles have a child-resistant screw-press cap.
Please refer to the picture to open the cap.
7.2 LIQUID WARNING
• Nicotine can be toxic by inhalation, in contact with skin,
and if ingested
• Nicotine is classified as Harmful: Danger of serious
damage to health with prolonged exposure, if ingested.
• Nicotine is irritating to eyes and skin.
• Nicotine may cause sensitisation by prolonged skin contact.
• Nicotine may cause harm to the unborn child.
• Nicotine vapours may induce drowsiness or dizziness.
• Nicotine is classified as Very Toxic to aquatic organisms, and may cause long-term
adverse effects to the aquatic environment.
• In case of an accident, or if you feel unwell, seek medical advice (show the label
where possible).
• This material and its container must be disposed of in a safe manner and in
accordance with local waste disposal regulations.
• Use appropriate containment measures to avoid possible environmental contamina
tion To avoid risks to man and the environment, comply with the instructions for use.
• Keep your electronic cigarette locked away when not in use.
• If any contents are swallowed, seek immediate medical advice and show this leaflet.
• Nicotine in its pure form is a poison and can cause serious harm.
• All nicotine-containing fluids must be kept in a safe place and away from children at all times.
We have empty tank/cartridges for Joye 510-T A or B, and they are transparent.
This allows you to see the liquid when you fill. There are 2 ways to fill with liquid
(refer to the picture), please ensure you use Joyetech-brand liquid.
1. Open the bottom cap and fill the liquid as the picture shows. Please do not fill
the cartridge full, and it is better to leave 1-2mm space.
2. Fill the liquid through the small hole on the bottom cap, refer to the picture.
Please ensure the tip is completely in the tank. Squeeze the bottle to let liquid
flow into the tank/cartridge, and leave 1-2mm empty space.
When use of your electronic cigarette produces a continuous burning taste, this
indicates that you need to add liquid. Empty tanks/cartridges are disposable.
Please replace the cartridge frequently to ensure proper function.
LIMITED MANUFACTURER'S WARRANTY
2 3
4 5
6 7
8 9
10 11
12 13
14 15
16 17
18 19
20 21
22 23
Capacity of Standard Automatic battery: 220mAh
Capacity of XL Automatic battery: 340mAh
Constant voltage ouput:3.3V
Charging time: 2Hr minimum
Joye 510/510-T Battery
Use with B type cartridge(the difference
between A and B type atomizer is just
the outer appearance)
2.2 Joye 510/510-T Atomizers
① ②
③
2. Optional Accessories
Thank you
for using our Joyetech Electronic Cigarette!
All the pictures in this manual are real. Please
read the instructions in detail before use to
ensure you master the correct use of an
electronic cigarette. Note: We do not recommend
using Joyetech electronic cigarettes and spare
parts with Non Joyetech products. Use of Non
Joyetech products may result in decreased
effectiveness and shortened lifespan, and will
void the Joyetech Warranty.
For all after-sale support, please consult your
local Joyetech agent.
1. Product Introduction
1.2 Kits Standard Accessories
Catalog
The Joyetech electronic cigarette is a new concept and alternative to traditional cigarettes.
Basically, the output of the battery, controlled by intelligent integrated circuits, applies
power to heating components, which, in turn, heat the liquid to produce an atomization
effect. The battery and components can be repeatedly used. The main components of the
liquid used by Joyetech are food grade flavoring and fragrance.
1.1 standard configuration:
2 x Joye 510/510-T Atomizers
1 x Joye 510/510-T standard
Batteries
1 x Joye 510/510-T XLBatteries
5 x Cartridges
1 x USB Wall Adaptor
1 x USB Cable Charger
Preface
Input: 100-240V 50/60Hz, 100mA
Output: 5V, 500mA
USB Wall Adaptor
Input: 5V, 500mA
Output: 4.2V, 150mA
Joye 510/510-T USB Cable Charger
9. Quality warranty
24 25
8. Refilling Liquid
7. Liquid
5. Atomizer
4. Battery
3 Quick Start
Besides the standard configuration, Joyetech offers optional accessories that will
provide enhanced functionality of your electronic cigarette. Unlike the components
that come with the standard configuration, optional accessories are not required for
proper function. As there is a wide range of options, please read the instructions or
contact your supplier to prevent incompatibility situations.
The following are some accessories outside of the standard configuration. Custom-
ers can consult and purchase from your local Joyetech agent.
Product Introduction 3
Opitional Accessories 7
Quick Start 11
Battery 12
Atomizer 14
PCC 16
Liquid 18
Refilling Liquid 20
some puffs
acceptable
Too little
liquid
correct amount
of liquid
Too much
liquid
some time
acceptable perfect
Joye 510/510-T Atomizers
Joye 510/510-T Cartridge
The Electronic cigarette is a new type of personal technology. It is not like the mobile phone
or computer which is a culmination of technologies with a defined and easily measured
purpose, nor is it like an air conditioner or refrigerator whose advantages or disadvantages
can be determined by the successful cooling of a particular area. The quality and usefulness
of our product is affected by each user’s particular habits and idiosyncrasies and judged on a
very individual level in the personal response of our mouth, throat, and body.
Our testing includes our utilizing our product each day and experiencing its ability to satisfy.
We are constantly making improvements, some bold and some more subtle, and we test for
the delicate results each change brings. We consider it our responsibility and challenge to
pursue this somewhat evasive feeling, and we strive to achieve a level that would be the
same as the quenching of a great thirst with pure water.
In addition to this standard, it is our goal to make our product simple and easy to use, so that
it is as convenient as smoking a traditional cigarette. It is our hope that our efforts serve to do
nothing less than enrich your life.
Frank Chur Joyetech President and CEO:
510/510-T User Manual
Email: [email protected]
Web: www.joyetech.com
Shenzhen Joyetech Co., Ltd.
For your information, Joyetech's limited product warranty does not apply to:
ATTENTION: THE GUARANTEE PERIOD IS SUBJECT TO THE CRITERION ABOVE.
