User Manual of “EZRUN” Series Splash-Proof Brushless Speed Controller HW-SM411ENG-20120630 Page - 4 -
【OPTIONAL ACCESSORIES FOR UPGRADE】
We provide the following optional accessories for upgrade your power system:
1. Cooling fan (12V): The high voltage fan is necessary when you are using 3S
Lipo or NiMH battery more than 6 cells.
WARNING! Please note the original cooling fan (5V) can only work with 2S Lipo
or 4-6 cells NiMH battery. DON
’T use it with a 3S Lipo or NiMH battery more than 6
cells. Please check the label of the cooling fan carefully to confirm its working
voltage before using it.
2. LED Program Card (Digital LED Display).
The Program card is an optional accessory which needs to be purchased separately. It
has a friendly user interface. The process of programming the ESC becomes quite
easy and fast with this pocket sized device.
3. Advanced LCD Program Box (LCD Display).
Advanced Program Box is an optional accessory which needs to be purchased
separately.
It has LCD display to show the programmable items, so it can work as an individual
device to set the ESC. And it also works as an USB adapter to connect the ESC with a
PC to update the ESC firmware online.
Note:

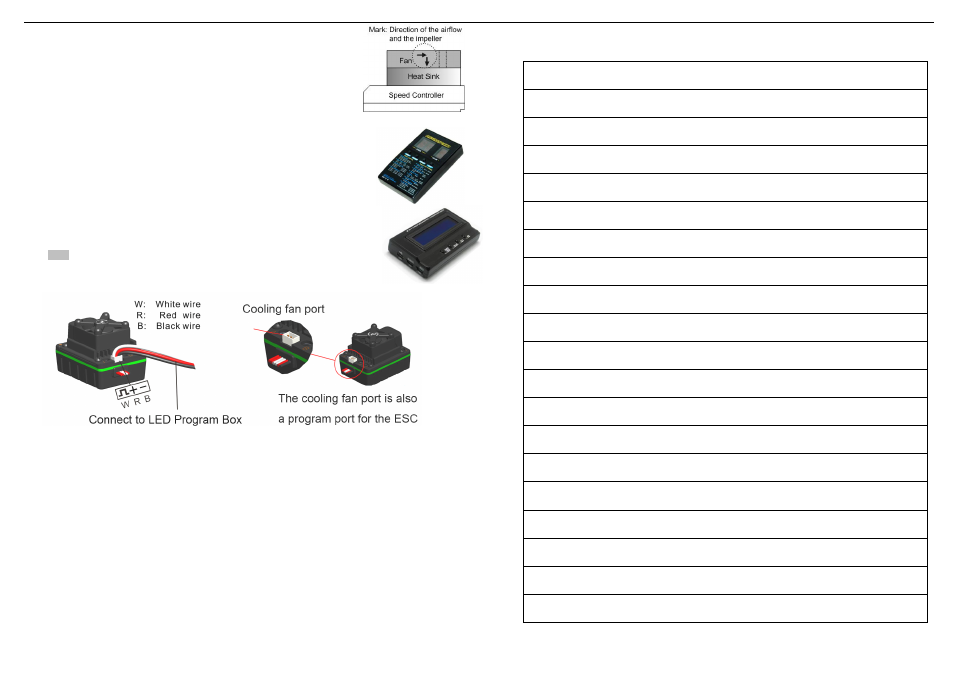

Please connect the ESC to LED Program Card via the cooling fan port.
(Please check the picture for reference)
