HITEC ePowerBox 17-amp Power Supply - Manual (Page 2)

CAUTION: Make all other connections before you connect the power supply to standard AC
power.
WARNING: Follow the correct polarity when connecting the power supply and the device to
avoid damage to both the power supply and the device. Always connect the red (+) positive lead
from your charger or other DC device to the red (+) positive terminal on the power supply, and
the black (+) positive lead from your charger or other DC device to the black (+) positive terminal
on the power supply. Never let the ends of the positive and negative wires touch each other
while powered on.
On the top of the of the ePowerBox 17A there is a DC output specifically designed for use with
our X1 Pro Charger. Remove the plastic short protectors from the charger and replace with the
included dual sided banana clips. Now you can set the X1 Pro on top of the ePowerBox 17A for
an integrated charging solution.
OPERATION
To use the power supply after you connect the device to it, turn it on with the power switch on the
side.
In the event of a charger malfunction, such as overheating or short circuit, all LEDs will shut off.
Correct the problems and restart the power supply.
The LEDs indicate output power from minimum to maximum in 2 amp increments.
RELATED PRODUCTS
X1 PRO - PROFESSIONAL BALANCE CHARGER/DISCHARGER
ONE YEAR LIMITED WARRANTY
For a period of one year from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at our option,
defective equipment covered by this warranty. This warranty does not cover cosmetic damages and damages
due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations
by unauthorized persons. This warranty only applies to the original purchaser of this product, who purchased and
used the product in the United States of America, Canada and Mexico.
THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY. HITEC RCD USA, INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT,
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW.
STATE OF CALIFORNIA PROPOSITION 65 WARNING:
This product contains chemicals known to the State of California to cause cancer. Use caution when handling this
product and avoid exposure to any electronic components or internal assemblies.
Distributed by
Hitec RCD USA, Inc.
www.hitecrcd.com
12115 Paine Street • Poway, CA 92064 • Ph: 858.748.6948 • [email protected]
Input Voltage Range 11~18 Volts DC
Charge Circuit Power 180 Watts
Disharge Circuit Power 30 Watts
Charge Current Range 0.1-16.0 Amps
Discharge Current Range 0.1-8.0 Amps
LiPo, LiFe & LiIon Balancing
Current Drain
200mA per Cell
LiPo, LiFe & LiIon Cell Count 1 - 6 Cells
Maximum NiCd/NiMH Cell Count 1 - 15 Cells
Lead Acid (Pb) Cells / Voltage 2 - 20 Volts
Dimensions (W x D x H) 3.6 x 4.4 x 2.0 in.
Weight 14.3 Ounces
X1 Pro
ePowerBox 17A
Dual
Bananna
Plugs

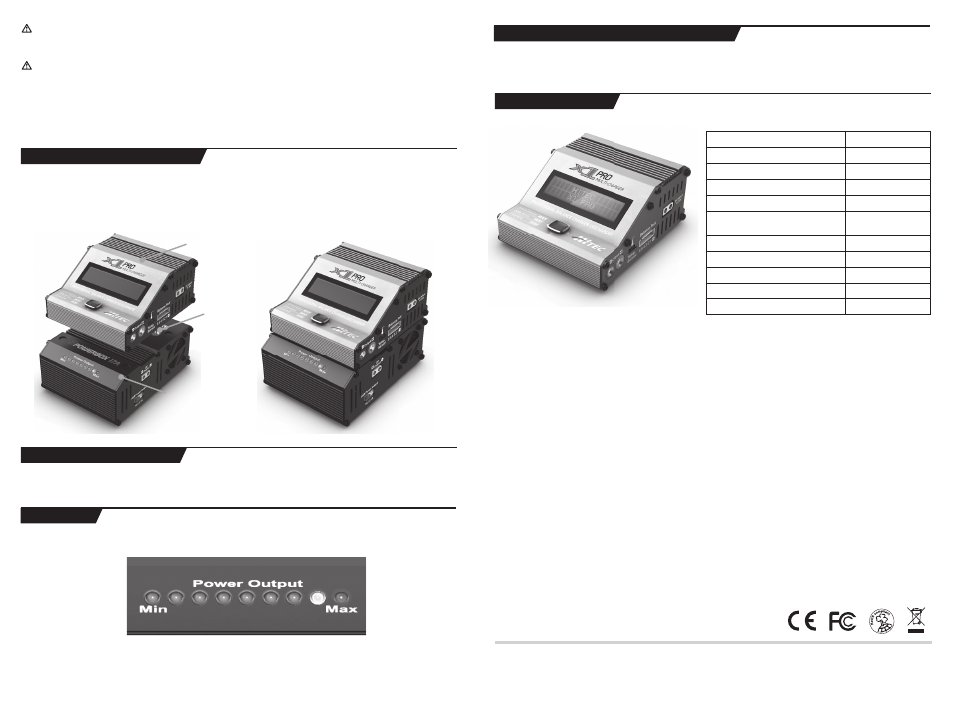

Connecting to the X1 Pro Charger
You can connect the ePowerBox 17A to other devices by using the banana plugs on top of the
unit or by utilizing the XT60 plug on the side.
Connecting to Other Devices
LED ERROR INDICATOR
3 4
