6

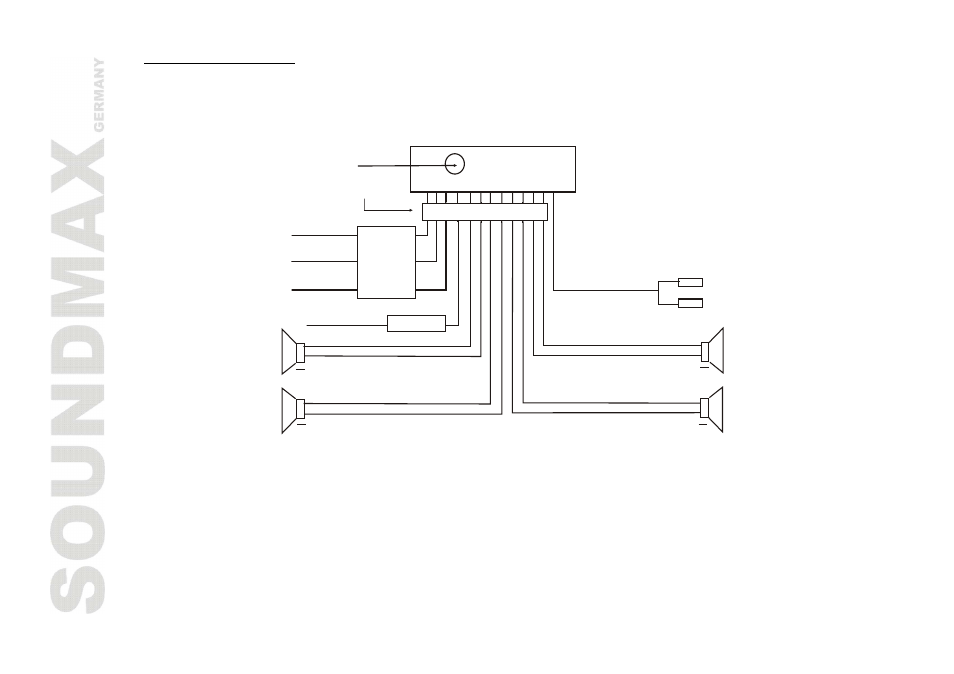

Speaker connection
Notes:
- In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the
distortion during high volume level.
- Prohibit to make the conductors of auto antenna and ground touch with each other.
+ +
+ + + +
+ +
YELLOW
ANTENNA SOCKET
MEMORY B+
BLACK(GND)
RED (B+)
FRONT
REAR
RIGHT
SP
BLUE AUTO ANT
FRONT WHITE
WHITE/BLACK
GREEN/BLACK VIOLET/BLACK
GRAY/BLACK
GRAY
VIOLET GREEN
REAR
LEFT
SP
FUSE
0.5 A
FUSED
FILTER
BOX
0.5A & 10 A
FUSES
RED R
WHITE L RCA LINE OUT
ISO CONNECTOR
