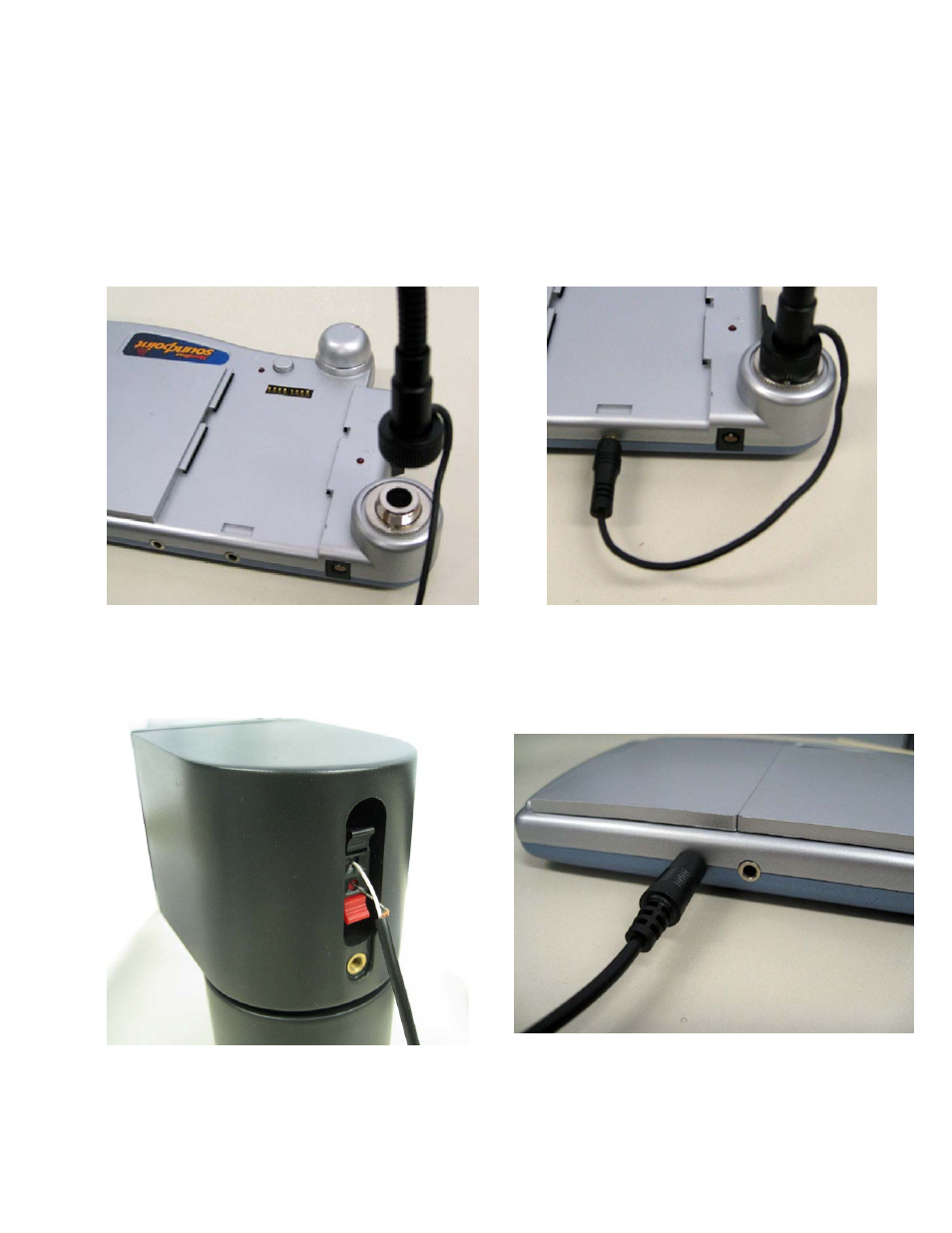

2. Turn the amp right‐side up and lock the microphone mount in place using the
threaded metal ring. Do not over‐tighten.
3. After installing the microphone collar, thread the gooseneck microphone to
its base and hand‐tighten. Connect the short microphone cable to the MAIN
MIC IN jack as shown.
4. Connect the included speaker wires to the left and right speakers. Bare leads
attach to the speaker end, 1/8” mini plugs go to the amplifier.
