8
A&E CATALINA 2500
the awning case.

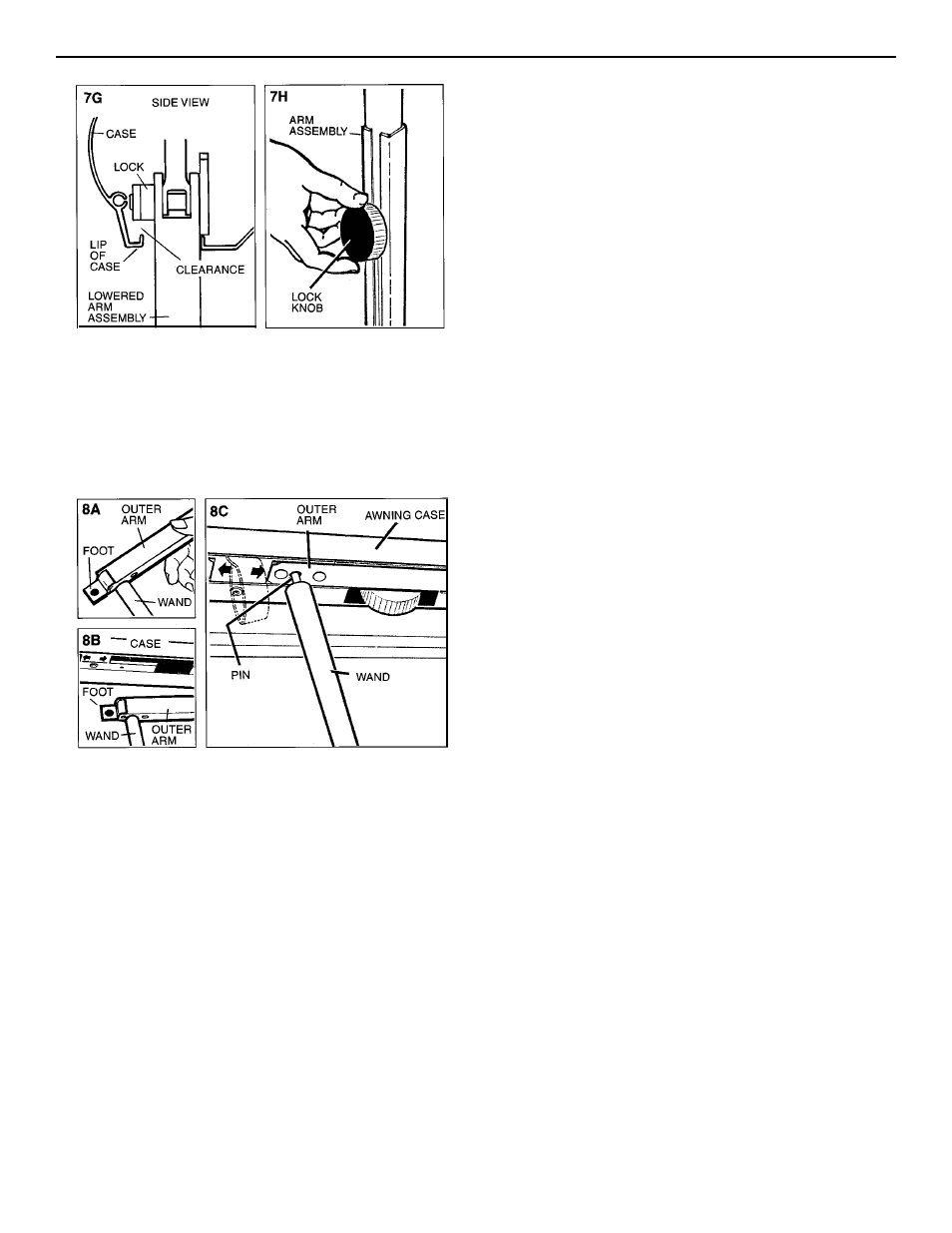

Note: Make sure lock in top of awning arm assembly
engages case lip (FIG. 7G). If lock does not engage case
lip, raise arm height until lock clears lip and then engages.
This is necessary for proper operation of awning case
locks.
E. Loosen lock knob on arm assembly (FIG. 7H).
Repeat for other side.
8. Insert pin at end of wand, through hole in outer arm so
it aligns foot for easy storage (FIG. 8A). Swing arm up
to case (FIG. 8B). Slide arm and foot away from center
of case so foot can be inserted into center section of
awning case (FIG. 8C). Repeat for other side.
AWNING
UNLOCKED
