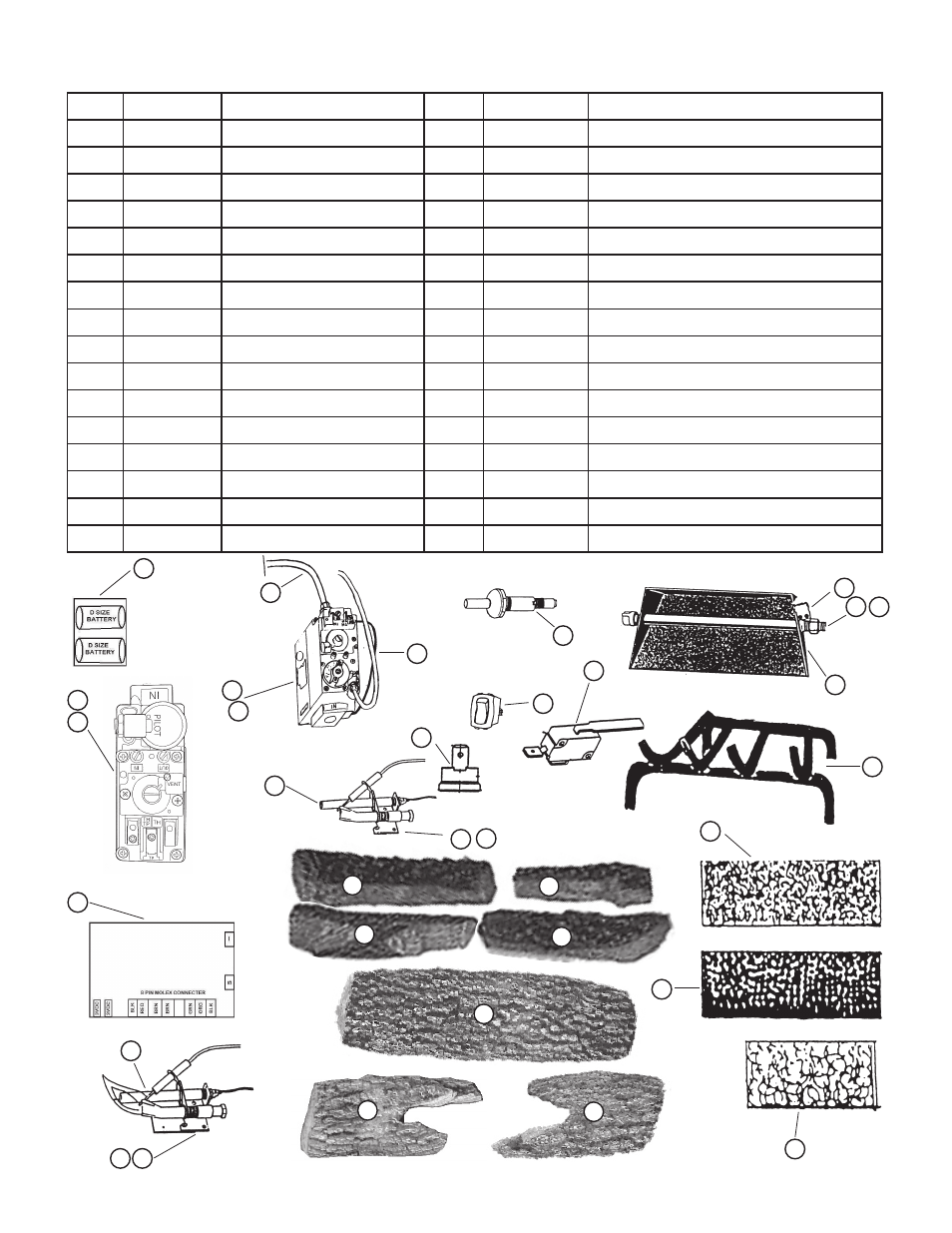

REPLACEMENT PARTS
23
25
1
2
3
4
9
7 8
6
5
15 15
24
11 12
13
14
22
21
10
ITEM PArT # DESCRIPTION ITEM PArT # DESCRIPTION
1 TV-101 Gas Valve - N/G 17 TV-117-42 Middle Left Log
2 TV-102 Gas Valve - LP 18 TV-118-42 Middle Right Log
3 TV-103 “1/4" Pilot Line” 19 TV-119-42 Top Left Log
4 TV-104 “3/8" Burner Line” 20 TV-120-42 Top Right Log
5 TV-105 Piezo Ignitor 21 TV-121 Ember Material
6 TV-106 On/Off Switch 22 TV-122 Vermiculite
7 TV-107 Pilot Assembly - Nat. 23 TV-123 Volcanic Rock
8 TV-108 Pilot Assembly - LP 24 TV-124 Temp Limit Switch
9 TV-109 Thermopile 25 TV-125 Damper Switch
10 TV-110 Pilot Assembly Bracket 26 TV-126 Battery Pack (STP Model)
11 TV-111 Burner Orifice NAT 27 TV-127 Gas Valve-N/G (STP Model)
12 TV-112 Burner Orifice LP 28 TV-128 Gas Valve-LP (STP Model)
13 TV-113-42 Burner Pan Assembly 29 TV-129 Ignition Module (STP Model)
14 TV-114-42 Log Grate 30 TV-130 Pilot Assembly - Nat. (STP Model)
15 TV-115-42 Bottom Front Logs 31 TV-131 Pilot Assembly - LP (STP Model)
16 TV-116-42 Bottom Rear Log 32 TV-132 Flame Sensor
