IMPORTANT
● With due regard to the complete weight of the solar
collector system, (refer to technical data) ensure the roof
rafters and battens are in good condition and have
sufficient load carrying capacity and the battens are
secure.
5.1 Fixing roof anchor type P
Remove the roof tiles to expose the roof battens and rafters
where required, please refer to diagram 5.1 and 5.2 for
position of brackets.
If required loosen the securing screw, see diagram 5.2.
Using a 5mm Allen key, release the bottom plate securing
screw and swivel 180 o and secure.
Position the roof anchor on the rafter, see diagram 5.3.
Ensure that the roof anchor is secured to the rafter with the
screws supplied.
Re-position the tiles ensuring that the roof is water tight before
fitting the collector.

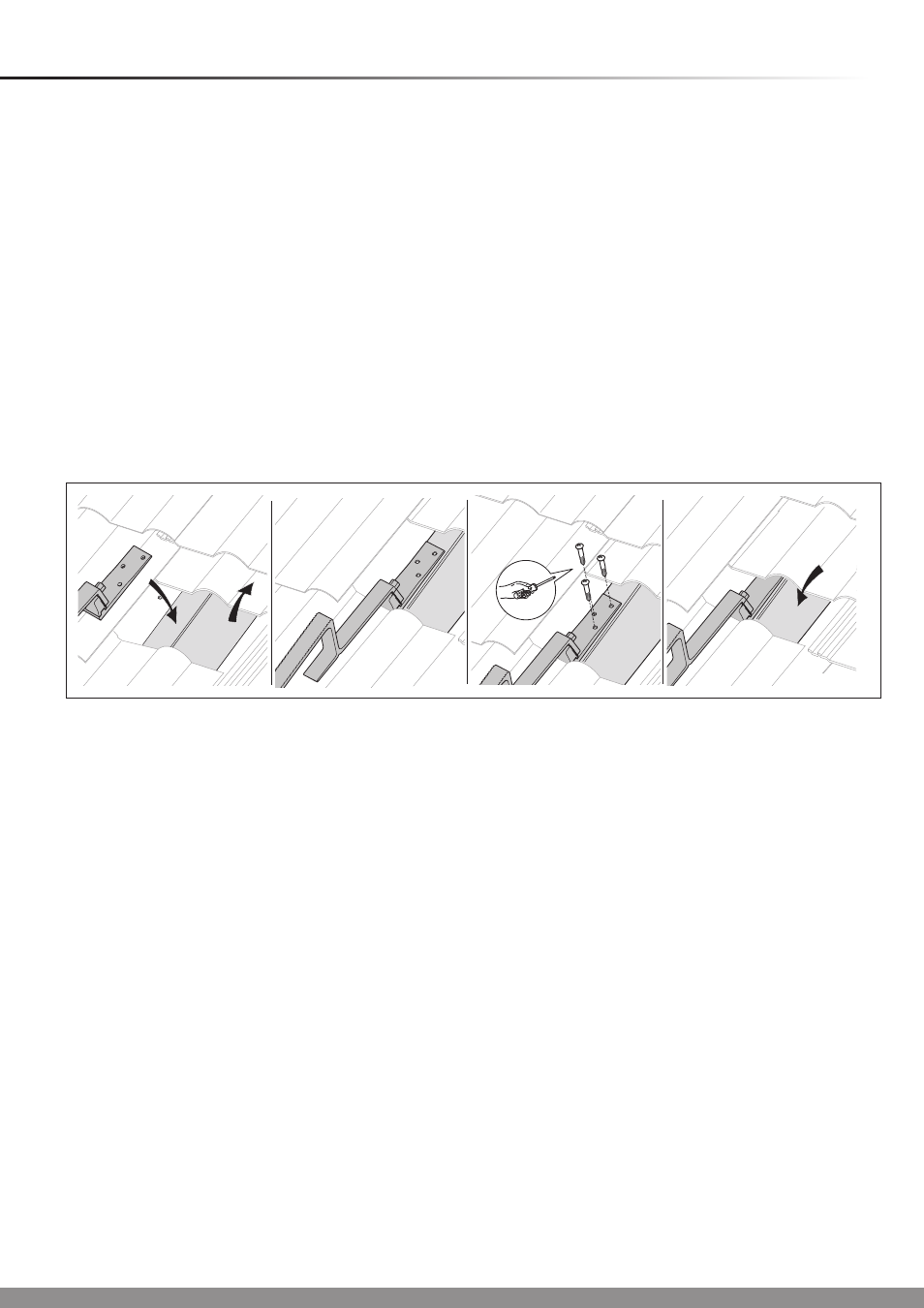

5 Roof Anchor - Type P
15405
Diagram 5.3
