Note: When printing this template for use,
DO NOT “Fit to Paper,” or scale page down. Print page at 100%. scale
Non-Clutch Keyed Lever
Installation Instruction
Re-Install Instructions
(after re-keying)
(shown without handle)

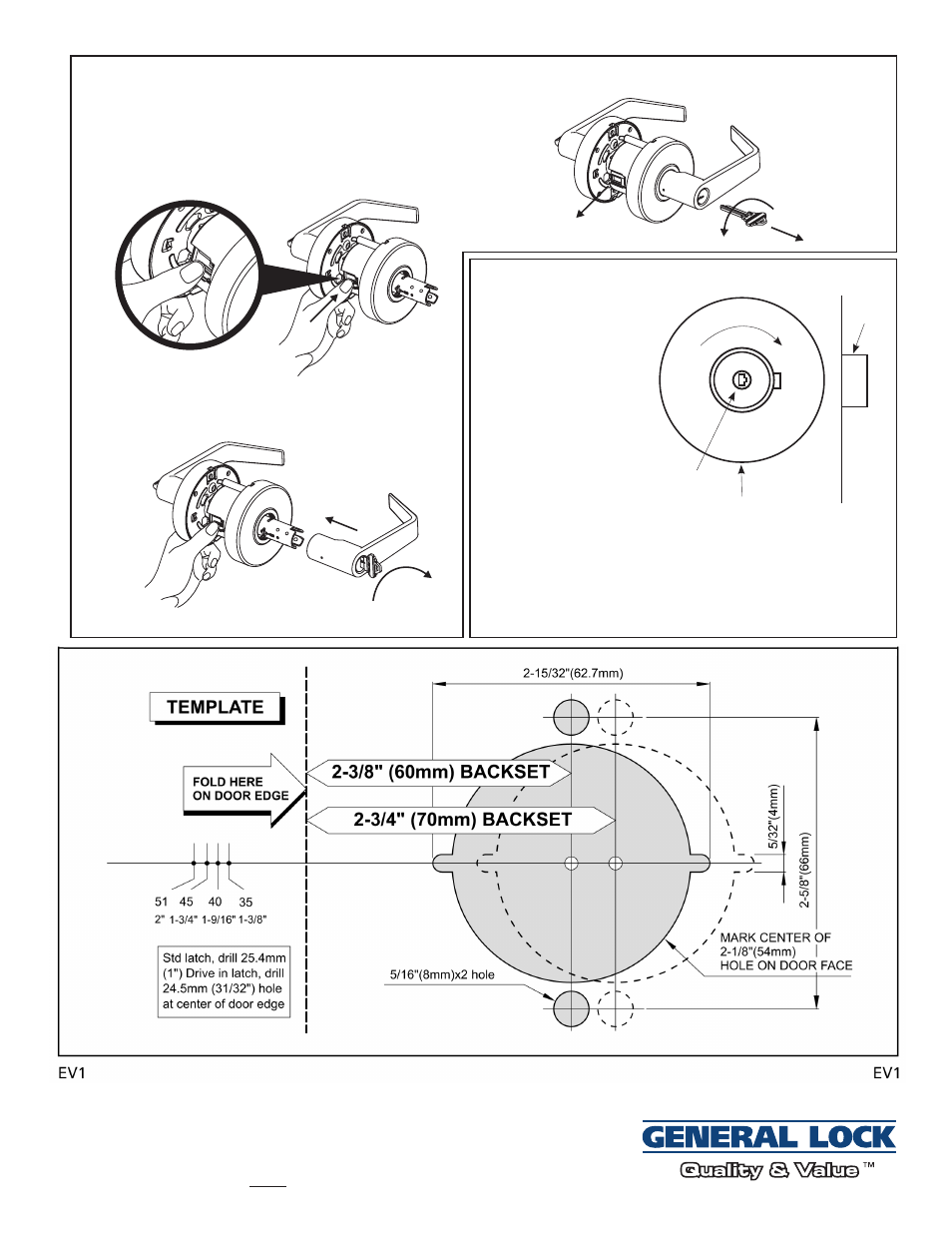

2.) Press the retractor as illustrated.
3.) Insert the key into the outside lever and turn it 90° degree
clockwise. Push the outside lever onto the chassis until the
catch engages in lever.
4.) Turn the key counterclockwise to the position it was
and let go of the retractor.
1.) If a turnbutton exists on the inside lever, ensure it is in the unlocked
position and the lock is unlocked.
LATCH
LOCKING
CAM
CLOCKWISE
ROSE
LATCH
BOLT
Before re-installing, check the
timing of the latch-locking cam,
which can be found by viewing
the lockset in the orientation
shown in illustration.
Then, use a screwdriver to
rotate the locking cam clockwise
to the right direction as shown
(towards latch bolt)
Finally, push back the lever, turn
the key counter-clockwise 90º,
and pull out the key.
User Manual
How to lock the door:
Insert the key and rotate clockwise until it stops. Turn the
key back to the position it was and pull out the key.
How to unlock the door:
Insert the key and rotate counterclockwise until it stops.
Turn the key back to the position it was and pull out the key.
