OPERATION AND SERVICE INFORMATION
Page 5
Owner’s Guide
Read all of manual to become familiar with this vehicle. Pay attention to all NOTICES, CAUTIONS, WARNINGS and DANGERS.
B
B
CONTROLS AND INDICATORS
Vehicle controls and indicators consist of:
1. Key Switch / Direction Selector
2. Speedometer / State Of Charge Meter (optional)
3. Head Light Switch (optional)
4. Turn Signal Switch (optional)
5. Horn Button (optional)
6. Accelerator Pedal
7. Service Brake Pedal
8. Run/Tow Switch
l

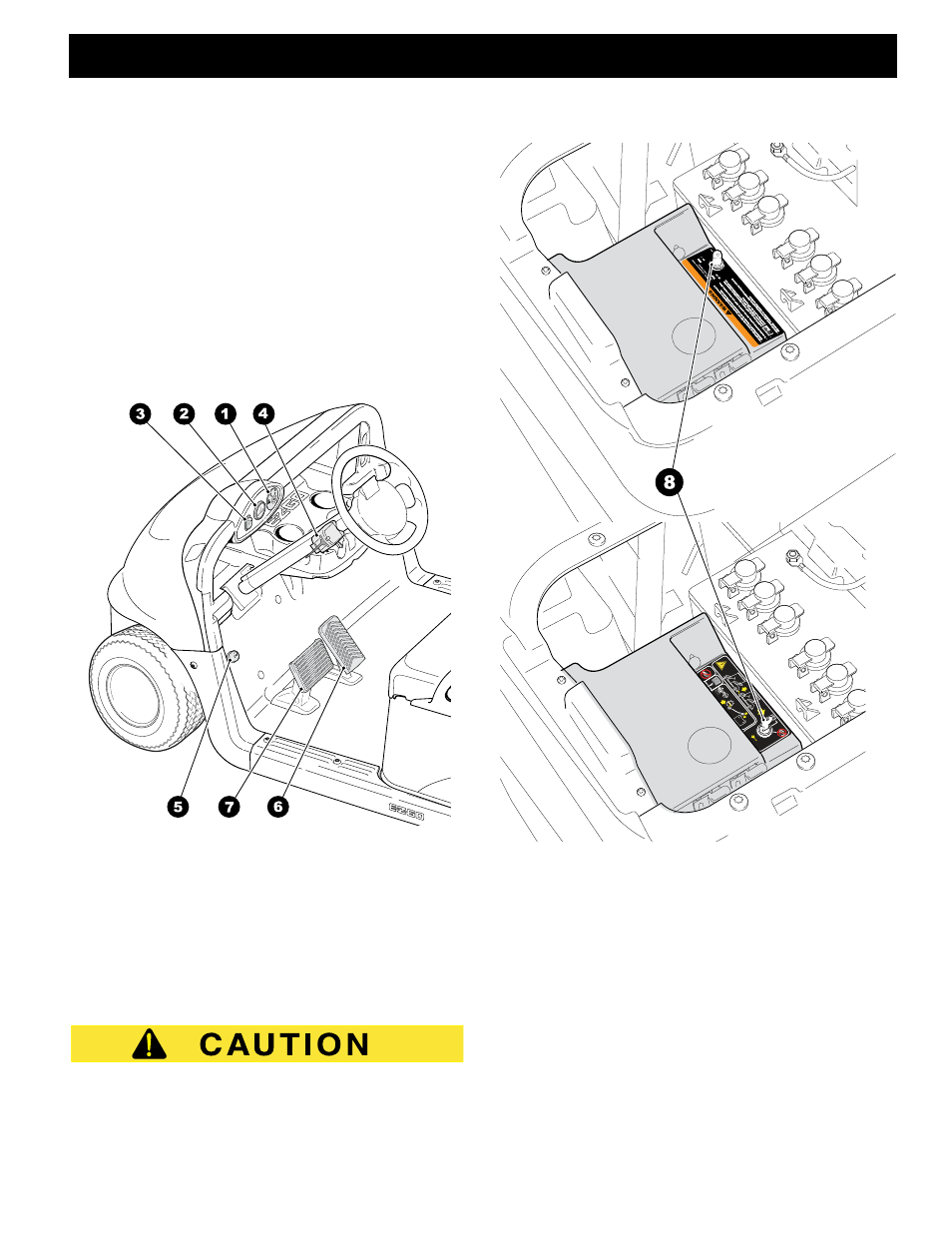

Fig. 8 Operator Controls & Gauges
KEY SWITCH/DIRECTION SELECTOR
Located on the dash panel, the key switch/direction se-
lector (1) enables the electrical system of the vehicle to
be turned on and off by turning the key; it also functions
as the direction selector for forward, neutral or reverse.
To prevent inadvertent operation of the vehicle when left
unattended, the key should be turned to the ‘OFF’ posi-
tion and removed.
To reduce the possibility of component damage, the
vehicle must be stopped before moving the key switch/
direction selector.
Fig. 9 Run/Tow Switch
SPEEDOMETER / STATE OF CHARGE (SOC)
METER (OPTIONAL EQUIPMENT)
If the vehicle is equipped with a speedometer / state of
charge meter (2), it is located in the dash panel to the
left of the key switch (1) (Ref. Fig. 8). The speedometer
displays the MPH, SOC, vehicle mileage, and errors/
warnings. The SOC meter indicates the amount of
usable power in the batteries. The state of charge meter
on the electric vehicle shows the condition of the battery
pack with F indicating a full charge on the battery pack
and E indicating the battery pack needs to be charged.
ST OR A GE
608769
F
R OFF O ON N
