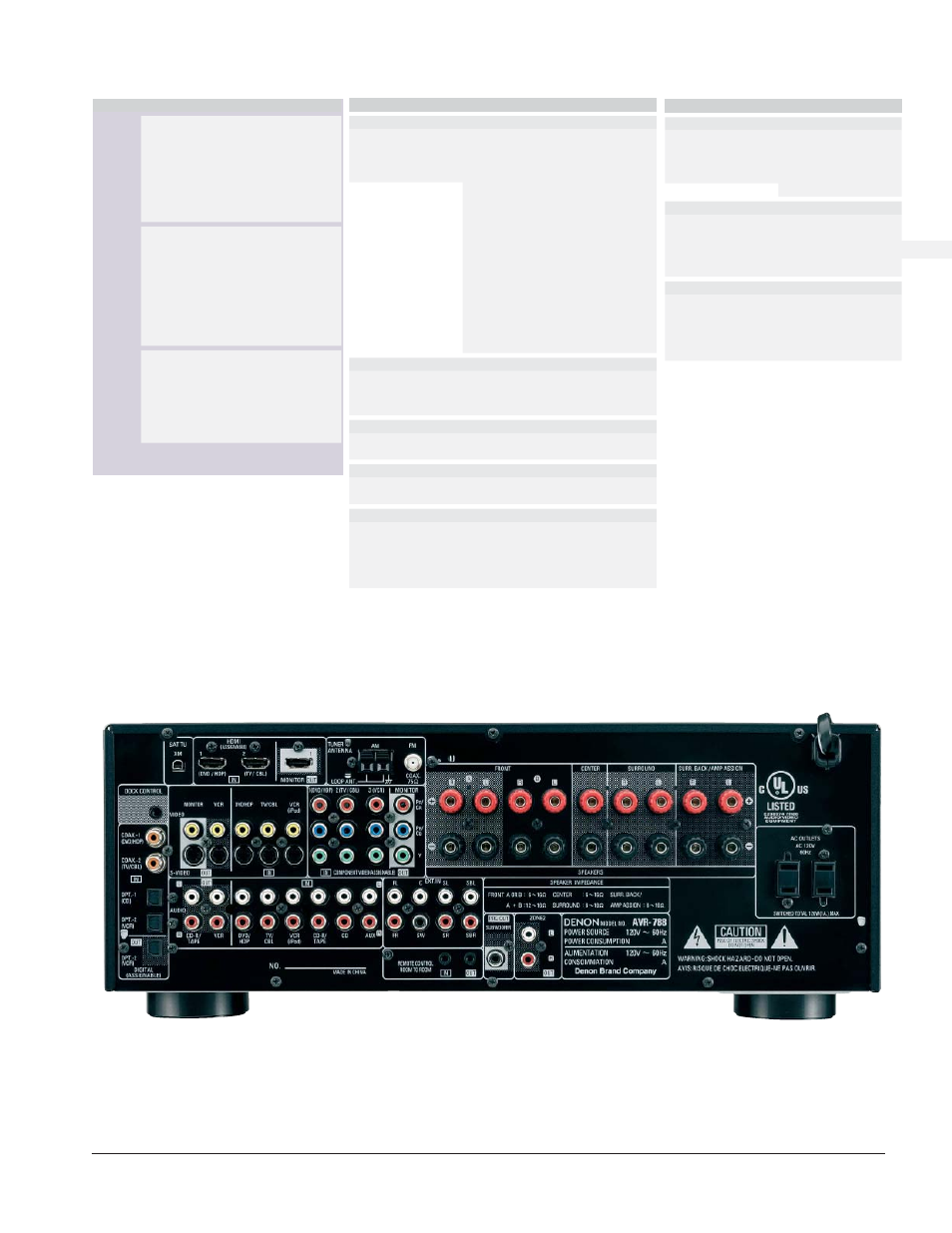

AVR-788 Input / Output Terminals:

HDMI

x 2

Component

x 3

S-Video x

Composite

x 4

Analog Audio (Tuner included)

x 8

Analog EXT. Input

7.1ch

Digital OPTICAL

x 2

Digital COAXIAL

x 2

OUT

HDMI Monitor

x 1

Component Monitor

x 1

S-Video Monitor

x 1

REC

x 1

Composite Monitor

x 1

REC

x 1

Analog Audio REC

x 2

Zone 2

x 1

Audio PRE out (Sub woofer)

x 1

Others

Dock Control Port

x 1

XM Connector

x 1

FM Tuner Antenna

x 1

AM Tuner Antenna

x 1

Remote In/Out

x 1

AVR-788 Main Specifi cations:

Power amplifi er section
Rated output

*THD fi gures are power amp stage values.

Front L/R

90 W + 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W + 125 W
(6 ohms, 1 kHz, THD 0.7%)

Center

90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W
(6 ohms, 1 kHz, THD 0.7%)

Surround L/R

90 W + 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W + 125 W
(6 ohms, 1 kHz, THD 0.7%)

Surround Back L/R

90 W + 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W + 125 W
(6 ohms, 1 kHz, THD 0.7%)

Preamplifi er section
Input sensitivity/impedance 200 mV / 47 k ohms
Frequency response

10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)

S/N Ratio

98 dB (IHF-A weighted, DIRECT mode)

FM section
Tuning frequency range

87.5 - 107.9 MHz

Usable sensitivity

1.0 μV (11.2 dBf)

AM section
Tuning frequency range

520 - 1710 kHz

Usable sensitivity

18 μV

General
Power supply

AC 120 V, 60 Hz

Dimensions (W x H x D)

434 x 171 x 383 mm
17-3/32” x 6-47/64” x 15-5/64”

Weight

11.2 kg, 24.7 lbs

MCS 130 Main Specifi cations:

LCR Speakers
Nominal Impedance

8 ohms.

Dimensions (WxHxD)

127 x 352 x 103 mm

5” x 13-7/8” x 4-1/16”

Weight

2.27 kg, 5 lbs / each

Surround Speakers
Nominal Impedance

8 ohms

Dimensions (WxHxD)

140 x 214 x 102 mm

5-1/2” x 8-7/16” x 4”

Weight

1.36kg, 3 lbs / each

Subwoofer

Power supply

AC 120 V, 60 Hz

Dimensions (WxHxD)

419 x 349 x 419 mm

16-1/2” x13-3/4” x 16-1/2”

Weight

14.15kg, 31 1/4 lbs
