AES/EBU Connection

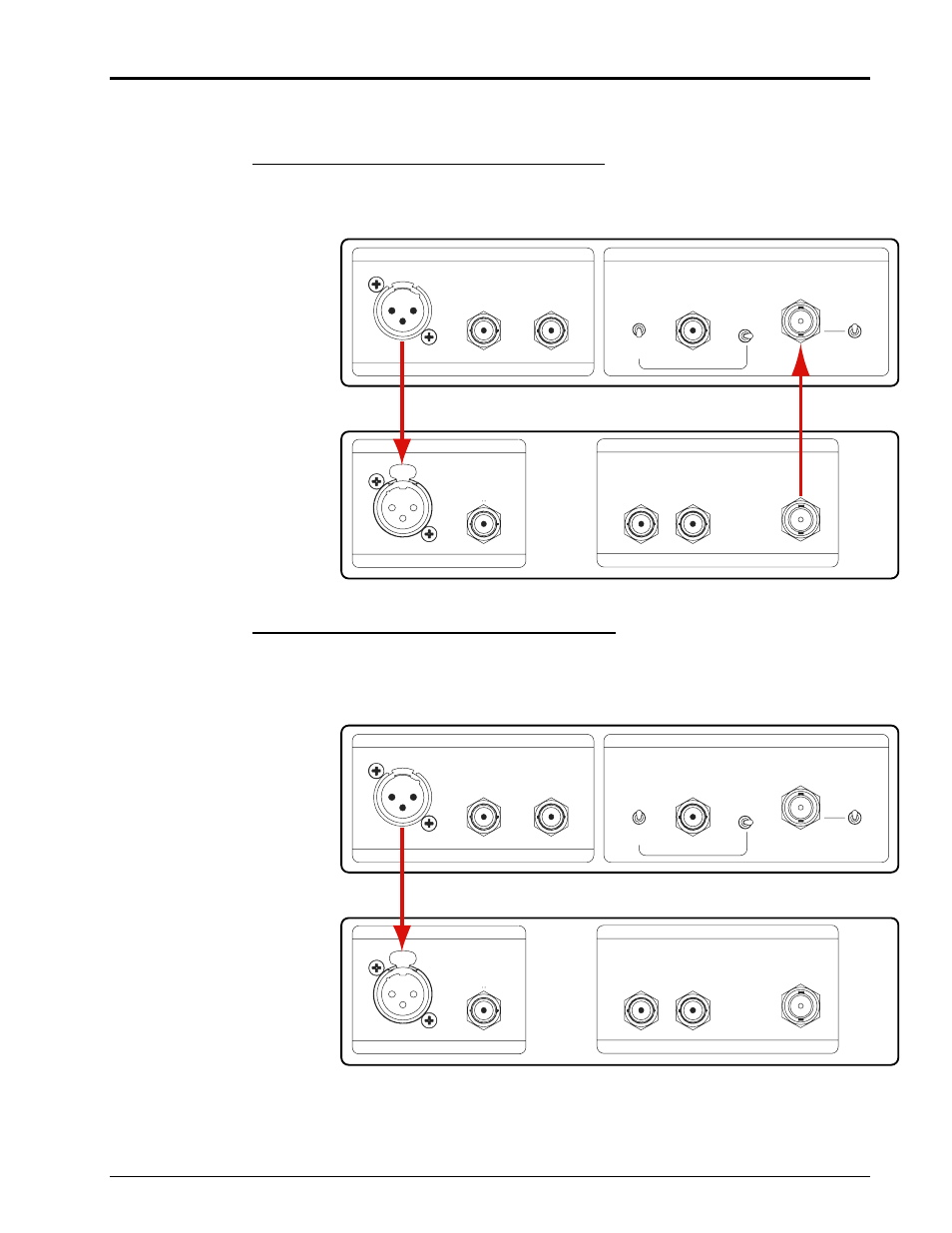

Cable connections for CDSD clock slave operation:
Note: Please note the toggle switch position on rear of CDSD. Refer to manual of DAC
for correct configuration
.
DIGITAL OUTPUTS
DSD AES / EBU - PCM
DATA CLOCK
OPTIC BNC
EXTERNAL CLOCK INPUTS
EXT
INT
HI Z
75
CLOCK
BNC OPTICAL
DIGITAL INPUTS
DSD AES / EBU
OPTICAL
DATA
IN OUT
PUSH
CDSD
DAC
(DCC2,
DAC6e)
Cable connections for CDSD clock master operation:
Note: Please note the toggle switch position on rear of CDSD. Refer to manual of DAC
for correct configuration.
DIGITAL OUTPUTS
DSD AES / EBU - PCM
DATA CLOCK
OPTIC BNC
EXTERNAL CLOCK INPUTS
EXT
INT
HI Z
75
CLOCK
BNC OPTICAL
DIGITAL INPUTS
DSD AES / EBU
OPTICAL
DATA
IN OUT
PUSH
CDSD
DAC
(DCC2,
DAC6e)
