Elenco Surface Mount Technology Kit - Manual (Page 8)

-7-

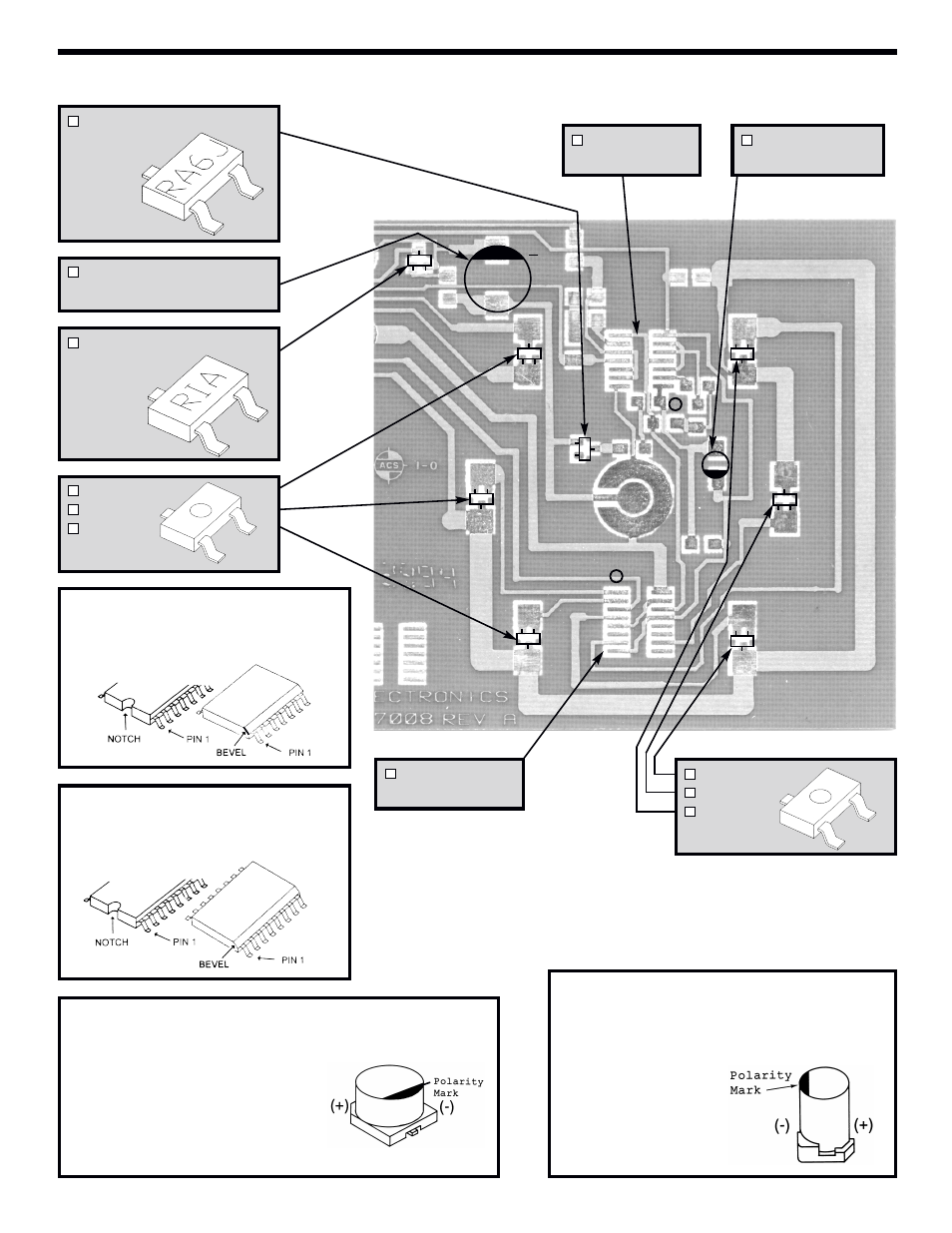

SOLDER CAPACITORS AND SEMICONDUCTORS TO PC BOARD
D1 - Diode (1N4148)
(RA6J), (A6),
(A2) or
(5H)
C3 - 100µF Lytic
(See Figure 8)
Q1 - Transistor (3904)
(R1A), (1A),
(N71), (1AM),
(KINC), or
(ZC)
LED 1
LED 2
LED 3
Figure 6
Mount IC with pin 1 as shown on the
PC board illustration.
Figure 7
Mount IC with pin 1 as shown on the
PC board illustration.
Figure 8
This capacitor is polarized, be sure
that the (+) and (–) sides are
positioned correctly.
Warning: If the capacitor is
connected with incorrect polarity, it
may heat up, and either leak or
cause the capacitor to explode.
Figure 9
This capacitor is polarized, be sure that the (+)
and (–) sides are positioned correctly.
Warning: If the
capacitor is connected
with incorrect polarity, it
may heat up, and either
leak or cause the
capacitor to explode.
IC2 - IC (4017)
(see Figure 7)
LED 4
LED 5
LED 6
C4 - 2.2µF Lytic
(see Figure 9)
IC1 - IC (4011)
(see Figure 6)
+
+
