Page 3
-2-

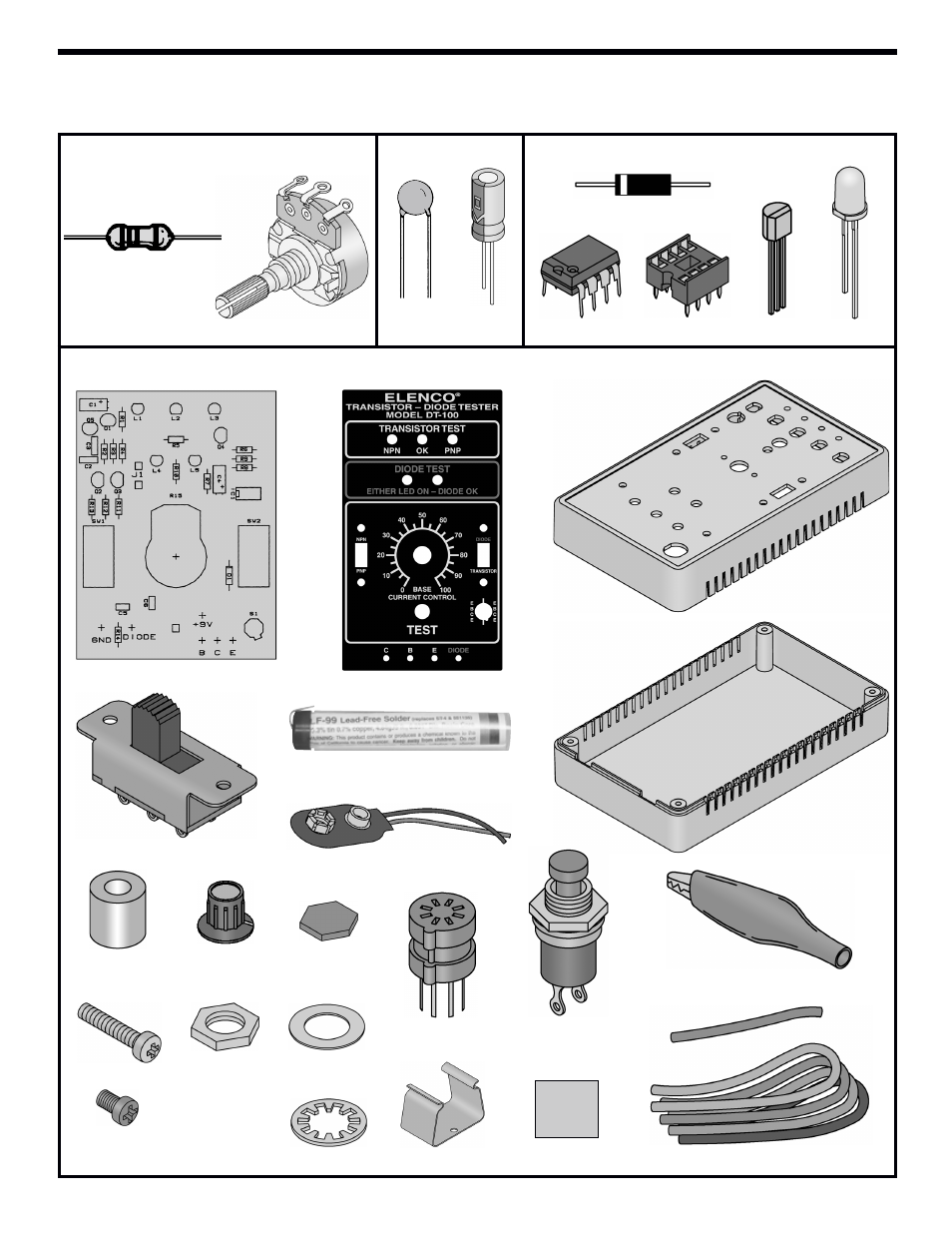

PARTS VERIFICATION
Before beginning the assembly process, familiarize yourself with the components and this instruction book.
Verify that all of the parts are present. This is best done by checking off the parts in the parts list.
RESISTORS
CAPACITOR
SEMICONDUCTORS
Electrolytic
(radial)
Diode
100kΩ Potentiometer
Transistor
LED
Knob
MISCELLANEOUS
Switch DPDT
PC Board
Case top
Case bottom
Screws
2.8 x 8mm
M3 x 0.5 x 5mm
7mm
Nuts
Washers
Flat
8 x 14mm
Lockwasher 5/16”
Rubber foot
Spacer LED
Label
Lead-free solder
Carbon film
8-pin Socket
555 IC
Discap
Battery snap
Transistor
socket
Push button switch with
1/4” nut and washer
Alligator clip
Wires
Double-sided tape
Battery clip
