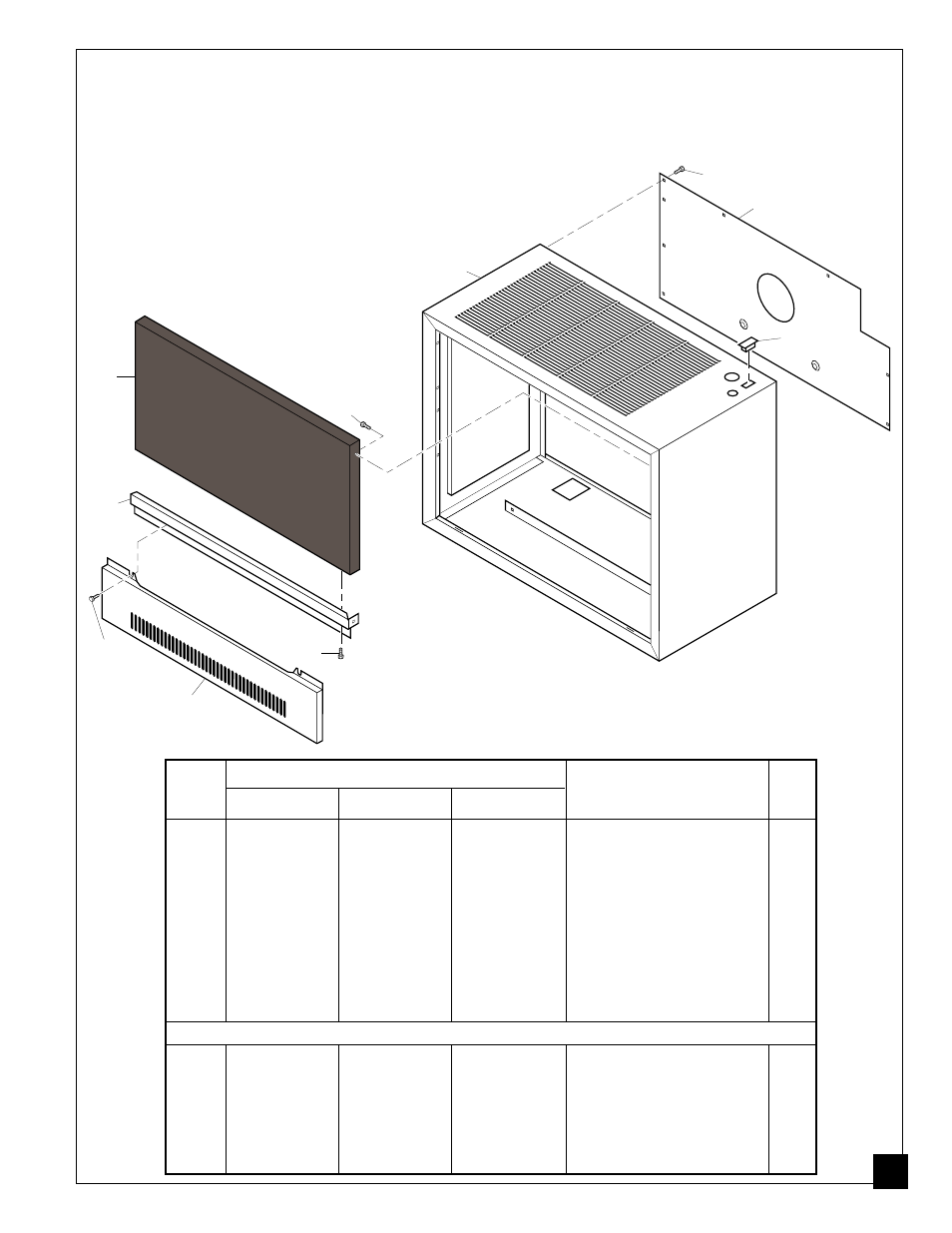

This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Ordering Replacement Parts on page 32 of this manual. ILLUSTRATED
PARTS LIST
Cabinet
Assembly
1
2
5
3
4
5
6
5
7
8
PART NUMBER FOR
KEY
NO.
GVC65NA GVC50NA GVC35NA DESCRIPTION QTY.
1 100202-03 100202-02 100202-01 Lower Front Panel 1
2 098304-01 098304-01 098304-01 Screw, #10-24 x 3/8" 2
3 100046-03BS 100046-02BS 100046-01BS Screen Bottom Trim 1
4 100049-03BP 100049-02BP 100049-01BP Grill Assembly 1
5 M11084-26 M11084-26 —— Screw, #10-16 x 3/8" 22
—— —— M11084-26 Screw, #10-16 x 3/8" 23
6 100203-03 100203-02 100203-01 Cabinet Assembly 1
7 100101-03BS 100101-02BS 100101-01BS Cabinet Back 1
8 099997-01 099997-01 099997-01 Switch Plug 1
PARTS AVAILABLE - NOT SHOWN
099988-01 099988-01 099988-01 Lighting Instructions
Decal, English
1
100157-01 100157-01 100157-01 Lighting Instructions
Decal, French
1
099987-01 099987-01 099987-01 Control Position Decal 1
100154-01 100154-01 100154-01 Warning Decal 1
