COMPATIBILITY
All iPods with Dock Connector
CONNECTIONS
30-Pin iPod Dock Connector
Auxiliary Input: 3.5mm stereo mini jack
Power Output: 5.5mm 12V DC jack
POWER
Input Voltage: 12 – 16 VDC
Input Current: <300mA @ DC12V~16
Detachable Power Socket: 12V DC car adapter
CABLE
3.5mm to 3.5mm Aux Cable
TEMPERATURE
Storage Temperature: -10° to 120° F (-23° to 49° C)
Operating Temperature: -4° to 113° F (-20° to 45° C)
| 11

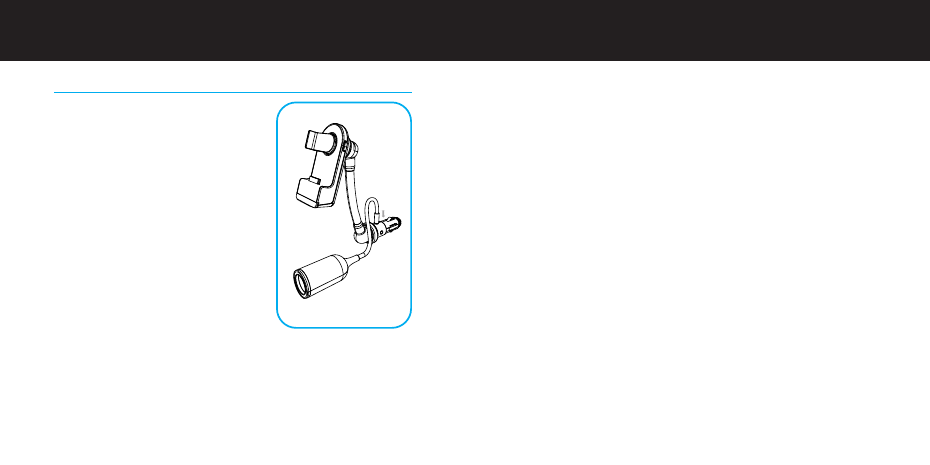

Using Your Detachable 12V Power Socket
The detachable 12V Power Socket allows you
to power other accessories while enjoying your
TransDock Direct. To install, locate the 5.5mm
port on the top of the Car Power Adapter and
insert the 5.5mm jack of the Power Socket.
This will activate the 12V Power Socket.
IMPORTANT: Do not insert anything other
than an appropriate plug that fits the socket,
or allow any liquid to get into the socket. Doing
so may cause electrical failure, electric shock,
or a short circuit. The total combined current
for the 12V DC socket should not exceed 10
amps. This accessory outlet should be used for
accessories only; do not use a lighter element
in this outlet.
10 | DLO TRANSDOCK DIRECT USER MANUAL
Tech Specs
