Parts explosions, Page – EarthQuake CS4518 User Manual
Page 33
Page
8
9
10
12
7
11
KEY Part # DEscriPtion
QtY.
1
845100
Right coveR aSSembly
1
2
845101
aiR filteR coveR kit
1
3
845104
StaRteR aSSembly
1
4
845105
oil pump
1
5
845106
clutch aSSembly kit
1
6
845109
clutch Shell
1
7
845110
fuel cap kit
1
8
845115
fuel tube
1
9
845116
gaS filteR componentS
1
10
845118
pRimeR bulb
1
11
845119
oil cap kit
1
12
845117
aiR filteR
1
13
845103
Scavenge tube
1
14
845102
pump tube
1
15
845107
caRbuRetoR
1
16
838119
bucking Spike, chainSaW
1
17
838120
bucking Spike, chainSaW mount ScReW
2
18
845108
coil aSSy. (not ShoWn)
1
19
845111
tRiggeR aSSembly kit
1

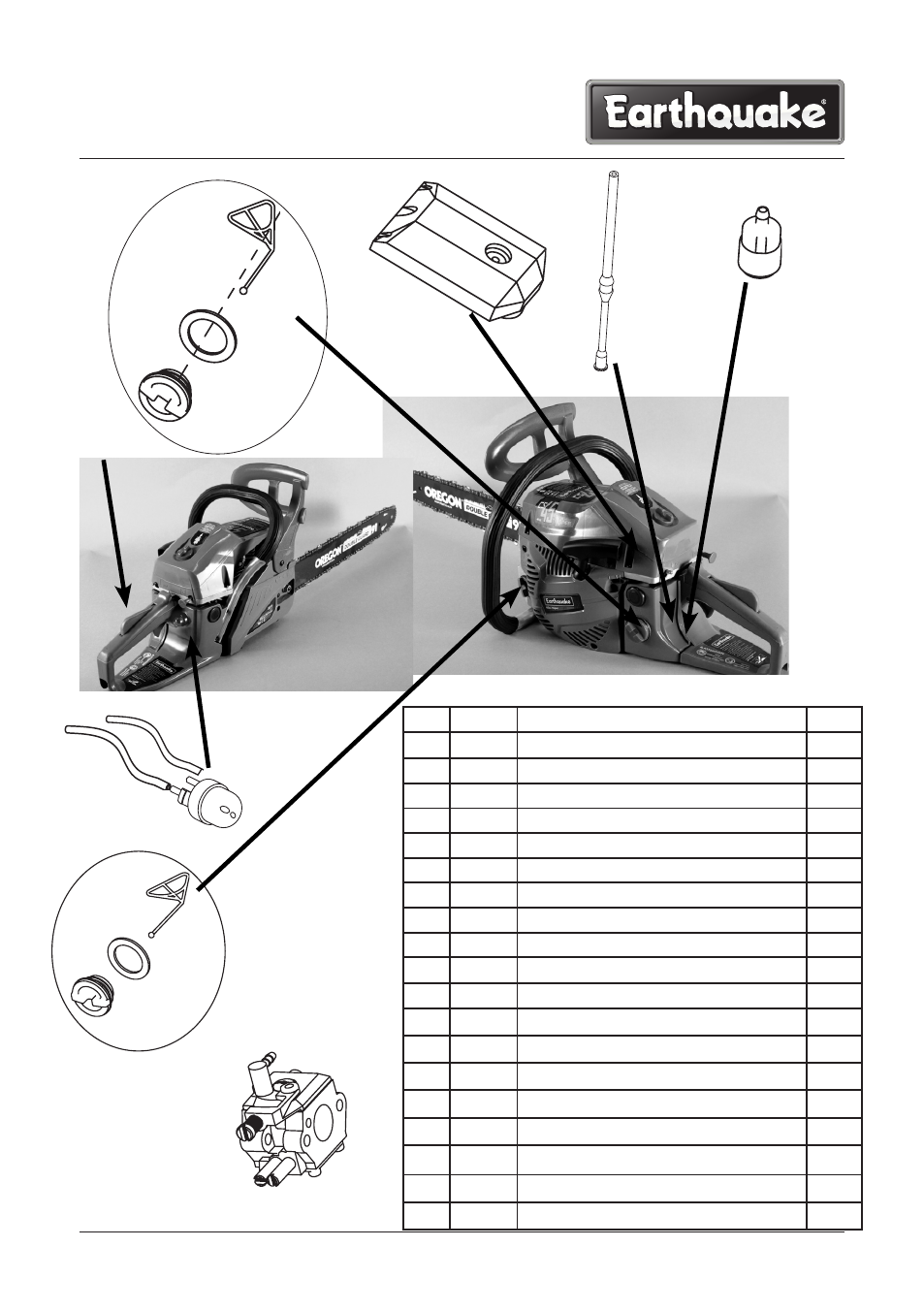

Parts Explosions
14
13
15
19
