TECHNICAL SPECS
Power Output (CPC):
. . . . . . . . Pentode: 1 ÷ 40W
. . . . . . . . Triode: 0,5 ÷ 15W
Preamp Tubes: 1x ECC83
Power Tubes: 2x EL34 (L34 version) or 2x 6L6 (L6 version) - 1x ECC83
Channels: ONE
Controls: Gain - Master - Presence - Boost - Continuous Power Control (CPC)
EQ Controls: Low - Mid - High (passive)
Speaker Outputs:
. . . . . . . . One 4 ohm
. . . . . . . . One 8 ohm
. . . . . . . . One 16 ohm
Other Features:
. . . . . . . . BIAS (low/high switch)
. . . . . . . . Service ATCS interface (optional)
Dimensions: 450 x 170 x 245 mm / 17.72” x 6.69” x 9.65” - Weight: 7,25 kg / 15.98 lbs
POWER REQUIREMENT: (Voltage is factory preset according to region of sale)
100V; 120V; 230V; 240V
50/60Hz
DV Mark amps/combos are manufactured to be sold and used in the country of purchase, and
they are factory preset to that country’s voltage. Due to homologation issues, the voltage may
not be changed.
Amp In
Pre Out
Input
Gain
Pad (-6dB)
Passive
tone
control
Low Mid High
Power Supply
Standby
On/Off
Footswitch
Boost (+10dB)
fuse
mains
CPC
½ ECC83 ½ ECC83
Master
Microcontroller
Pentode/Triode
Bias
Service
Power amp
8 ohm
EL34 / 6L6
EL34 / 6L6
ECC83 Output
transformer
Presence
4 ohm
16 ohm

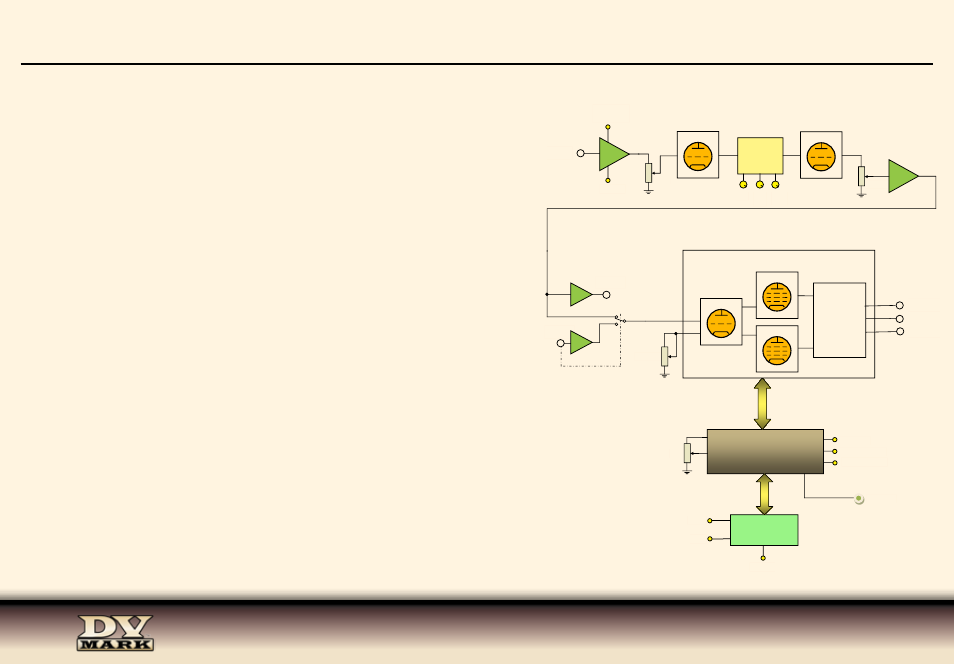

BLOCK DIAGRAM
