Rear panel, Maragold – Dv Mark MARAGOLD User Manual
Page 6
6

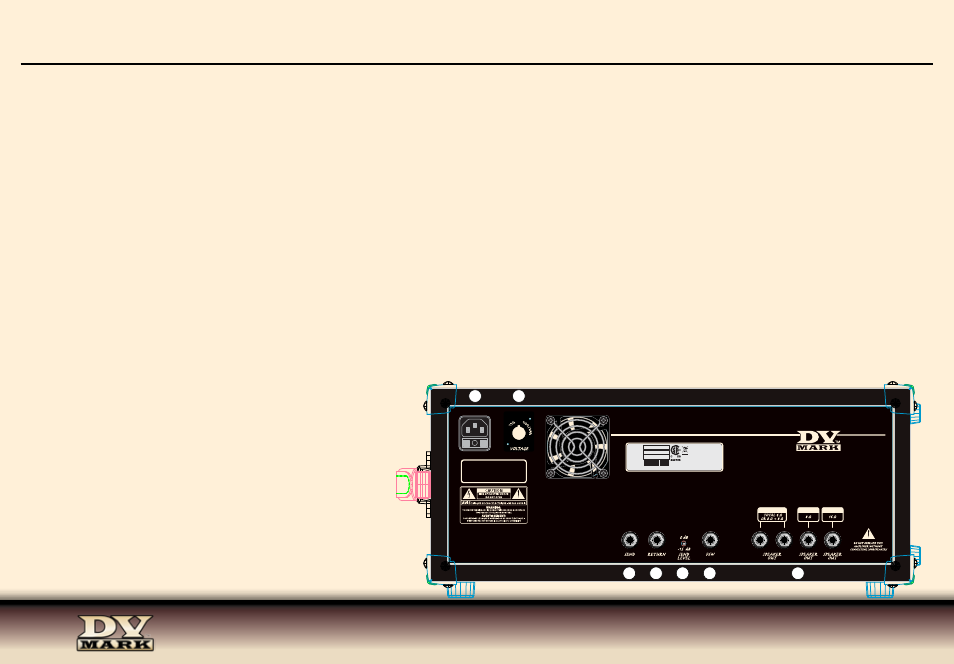

REAR PANEL
17-18) SEND-RETURN The amp features a series send/return which can be used for connecting with outboard effect processors or pedals.
Simply connect the Send out to your processor’s input, and connect the output of your processor to the Return in.
The send/return loop can be activated via footswitch (20)
19) 0/-15 dB SWITCH This switch 0db or -15db allows you to optimize the send level signal to external effects.
20) FSW 1/4” STEREO jack for connecting a DUAL footswitch to switch between Clean and Drive channels (CH1 / CH2) and turn ON/OFF
the send/return loop.
21) SPEAKERS OUTS One 4 ohm, one 8 ohm and one 16 ohm jack are provided for speaker cabinet connections. Verify the impedance of
your speaker cabinet to make sure you connect it to the correct output.
22) AC POWER SOCKET Make sure the unit is grounded; all three terminals of the AC power cord must be connected to avoid any injury
to the user or damage to the unit.
23) VOLTAGE SELECTOR The DV Mark Maragold amp features 120V/240V Voltage Selector (23) to use the amp in countries with different
voltages, so make sure the switch on the rear panel is on the correct voltage before connecting it to the AC power, and the fuse is the right
value for that voltage (This selector is not available on
the 100V version). Please change the voltage/fuse values
label located near the voltage selector matching the vol-
tage/fuse values when you need to change the voltage of
the apparatus.
SEND
RETURN
FSW
0 dB
-15 dB
SEND
LEVEL
DO NOT OPERATE THIS
AMPLIFIER WITHOUT
CONNECTING LOUDSPEAKERS
SPEAKER
OUT
TOTAL 4 Ω
OR 8 Ω + 8 Ω
LOAD
8 Ω
LOAD
SPEAKER
OUT
16 Ω
LOAD
SPEAKER
OUT
Model
MARAGOLD
CAUTION:
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE
REPLACE ONLY WITH SAME
TYPE AND RATING FUSE.
ATTENTION:
REMPLACER UNIQUEMENT PAR
UN FUSIBLE DE MEME TYPE.
Ser.Nr.
Date
VOLTAGE
MARAGOLD
GAIN
0
MAX
0
MAX
MASTER
BASS
MIDDLE
HIGH
GAIN
0
MAX
0
MAX
MASTER
BASS
MIDDLE
HIGH
INPUT
Ch2
Ch1
CH1
CH2
STAND BY OFF
ON
ON
LOOP
0
MAX
PRESENCE
18
1
2
3
4
5
6
8
9
10
11
12
7
13
14
15
16
17
19
20
8
22
23
