Little 40 ii – Dv Mark DV 40 212 User Manual
Page 5
5
13) PRESENCE The Presence knob (common for CH1 and CH2) controls high frequencies, above those controlled by the High knob on each
channel. It’s an effective and useful part of the amp’s tone controls. Turn the Presence up for crisp, sparkling clean sounds, crunchy rhythm
sounds and aggressive riffs; lower it for darker, rounder sounds and focused single-note lead tones.
14) REVERB Level control for the onboard reverb (common for CH1 and CH2). This amp features a last generation of digital reverb, it’s
sweet-sounding, warm and natural. Reverb ON/OFF can also be controlled by a DUAL footswitch that can be plugged into the amp’s rear panel
(20).
15) STANDBY Before powering on, make sure this switch is in standby position.
When you turn on the power, make sure this switch is in standby position for about 30 seconds. Between sets or whenever you’re on a break
from playing, put the amp in standby position, this will extend the power tubes life.
16) POWER This switch delivers AC power to the amp. Make sure the unit is grounded; all three terminals of the AC power plug must be
connected to avoid any injury to the user or damage to the unit.
The DV Mark Little 40 II amp, the DV 40 112 and the DV 40 212 combos feature a 120V/240V Voltage Selector to use the amp in countries
with different voltages, so make sure the switch on the rear panel is on the correct voltage before connecting it to the AC power, and the fuse
is the right value for that voltage. Follow the procedure described in the STANDBY section above (15) before powering up your amp.
SEND
RETURN
FSW
0 dB
-15 dB
SEND
LEVEL
DO NOT OPERATE THIS
AMPLIFIER WITHOUT
CONNECTING LOUDSPEAKERS
SPEAKER
OUT
TOTAL 4 Ω
OR 8 Ω + 8 Ω
LOAD
8 Ω
LOAD
SPEAKER
OUT
16 Ω
LOAD
SPEAKER
OUT

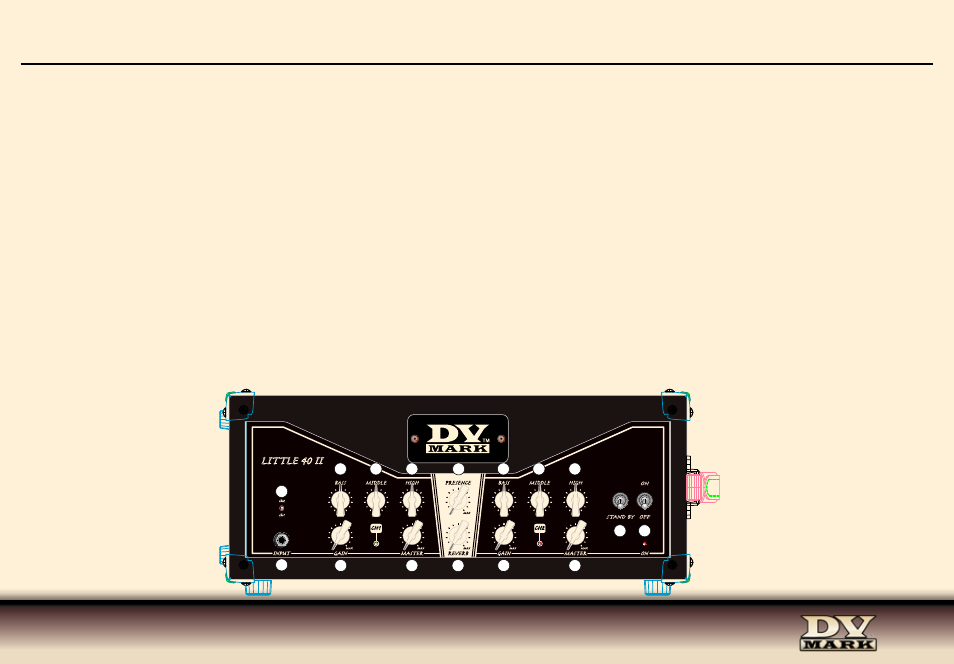

Model
LITTLE 40 II
CAUTION:
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE
REPLACE ONLY WITH SAME
TYPE AND RATING FUSE.
ATTENTION:
REMPLACER UNIQUEMENT PAR
UN FUSIBLE DE MEME TYPE.
Ser.Nr.
Date
VOLTAGE
LITTLE 40 II
GAIN
0
MAX
0
MAX
MASTER
BASS
MIDDLE
HIGH
GAIN
0
MAX
0
MAX
MASTER
BASS
MIDDLE
HIGH
INPUT
Ch2
Ch1
CH1
CH2
STAND BY OFF
ON
ON
0
MAX
PRESENCE
0
MAX
REVERB
18
1
2
3
4
5
6
8
9
10
11
12
7
13
14
15
16
17
19
20
8
22
23
