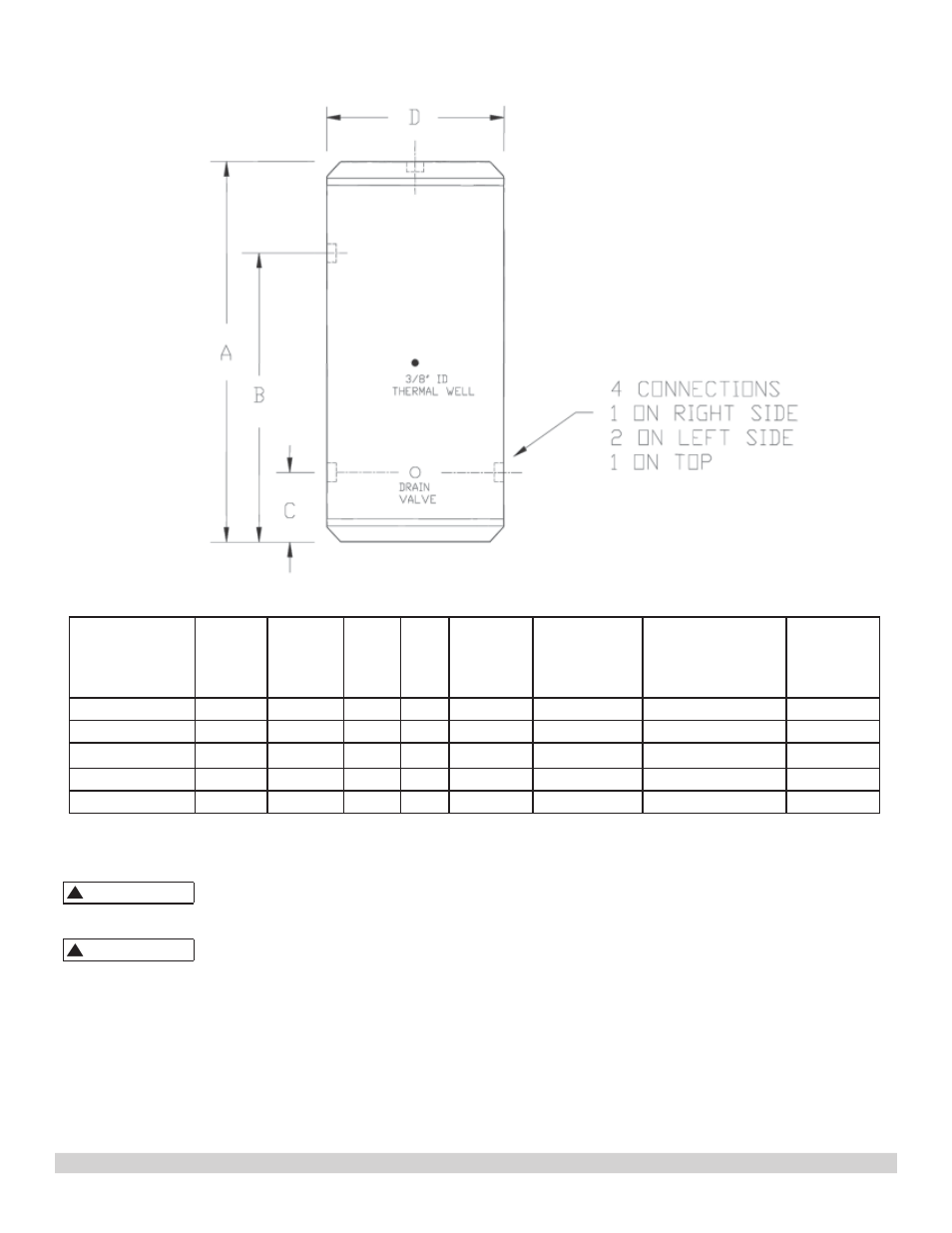

The buffer tanks are all stainless steel construction, insulated with a thermoplastic jacket.

WARNING

!

DO NOT use in potable water systems.

WARNING

!

Use this vessel only in hydronic heating systems. The installer must comply with all plumbing codes.

Do not operate above the temperature or pressure specified on the rating plate. Failure to comply may result in personal

injury, property damage, or death.

An example of piping a buffer tank follows showing a water source heat pump application. In all applications note that

the tank top fitting should be piped the distribution supply line to the air purger and vent. This way the tank will be self

venting and no additional air vent is needed to install or maintain.
The objective in any application is to pipe the buffer tank such that the heating or cooling source is hydraulically

uncoupled from distribution system.

Model

Volume

(gal.)

A

Height

B

C

D

Diameter

Connections

(NPT)

Max. Working

Pressure (psi)

Approx.

Ship wt.

(lbs.)

H2OBT22XXX

22

24.5

15.0

8.0

22.5

1¼"

60

35

H2OBT40XXX

40

42.0

29.0

9.0

22.5

Specify

60

87

H2OBT60XXX

60

42.0

29.5

9.5

26.5

1¼", 1½"

60

115

H2OBT80XXX

80

52.0

39.5

9.5

26.5

or 2" NPT

60

125

H2OBT115XXX

115

72.0

59.5

9.5

26.5

or 2" NPT

60

160
