INSTALLATION
Installing Logs (Cont.)
Middle Log (#2)
Metal Post
Metal
Post
Groove
Groove
Grate

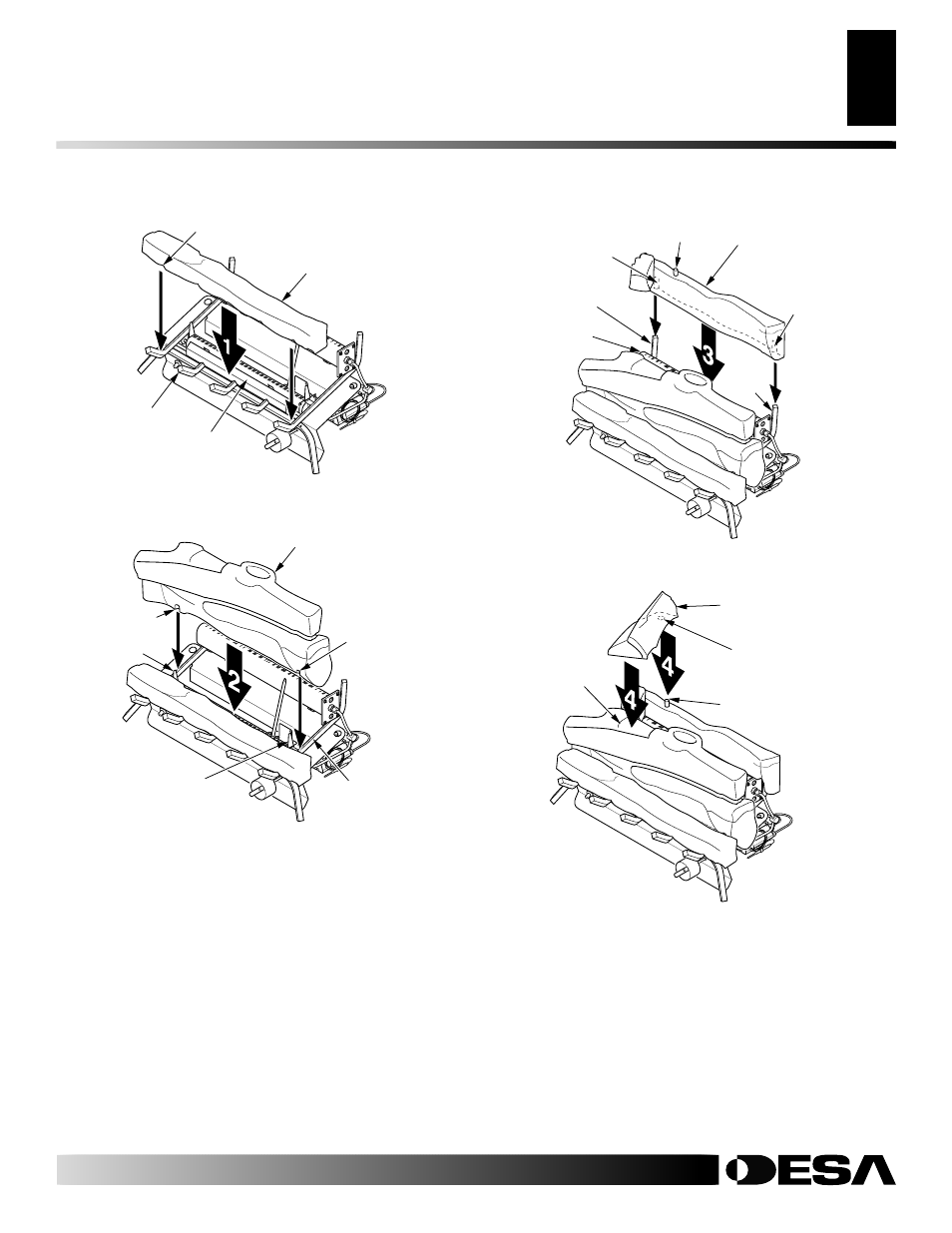

Figure 22 - Installing Middle Log (#2) [18" Variable Manually-
Controlled Set Shown]
Rear Log (#3) Peg
Grate
Prong
Grate
Prong
Rear
Burner
Groove
in Back
of Log
Groove in
Back of Log
Figure 23 - Installing Rear Log (#3) [18" Variable Manually-
Controlled Set Shown]
Front Log (#1)
Grate
Prongs
Metal
Grate Bar
Figure 21 - Installing Front Log (#1) [18" Variable Manually-
Controlled Set Shown]
Notch
Figure 24 - Installing Crossover Log (#4) [18" Variable Manually-
Controlled Set Shown]
Crossover
Log (#4)
Hole
Peg
Cutout
INSTALLATION
Continued
Note: Your appliance may vary from model shown but log
placement will be the same.
