Deltech Fitness DF4900- Linear Bearing Smith Machine - Manual (Page 5)

(NOTE: THE NUTS USED ON THIS PRODUCT ARE LOCK NUTS, THIS
MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT)

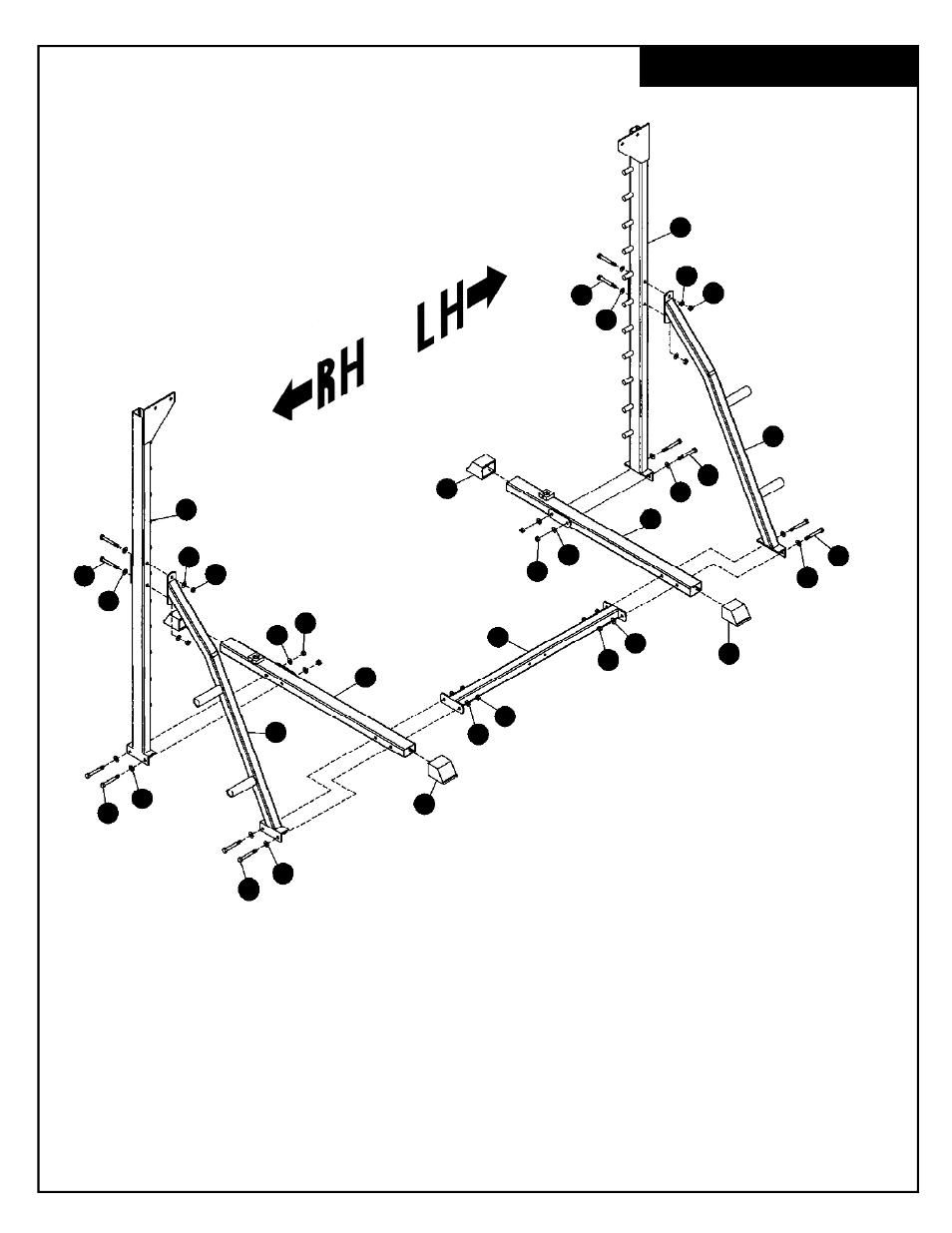

FRAME ASSEMBLY
U
W
A
W
Y
W
Y
E
C
U
W
U
W
O
W
G
Y
Y
W
O
Y
W
F
W
U
D
O
W
U
B
W
Y U
W
DD
ASSEMBLE THE LH FOOT (F), RH FOOT (E), CROSS MEMBER (G), AND THE LEFT AND RIGHT REAR
SUPPORTS (C) AND (D), USING THE M12 x 92MM BOLTS (U), M12 WASHERS (W), AND M12 LOCK-
NUTS (Y). (LEAVE THE BOLTS HAND TIGHTENED AT THIS TIME)
SLIDE THE RUBBER SHOES (O) ONTO THE RH AND LH FEET (E) & (F).
ASSEMBLE THE RH AND LH UPRIGHTS (A) & (B) TO THE LH AND RH FEET (E) & (F) USING THE
M12 x 92MM BOLTS (U), M12 WASHERS (W), AND M12 LOCKNUTS (Y).
ASSEMBLE THE RH AND LH UPRIGHTS (A) & (B) TO THE REAR SUPPORTS (C) & (D) USING THE
M12 x 92MM BOLTS (U), M12 WASHERS (W), AND M12 LOCKNUTS (Y).
