Final assembly – Deltech Fitness DF2000- Standard Weight Bench User Manual
Page 8

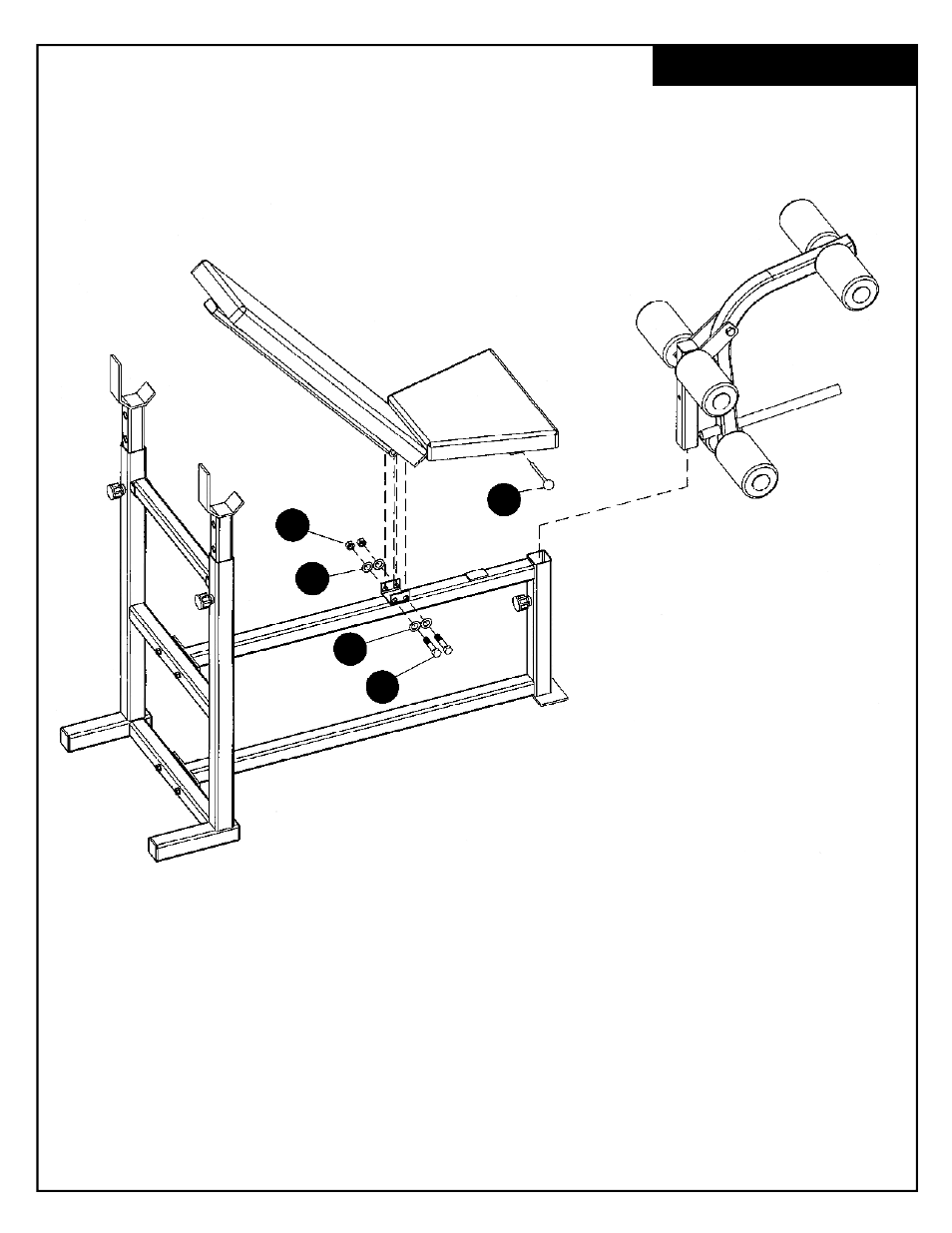

ATTACH THE BACKREST ASSY TO THE MAIN FRAME ASSEMBLY USING THE M12 x 79MM
BOLT (U), THE M12 WASHERS (Y) AND THE M12 LOCK NUT (AA). ATTACH THE SEAT
ASSEMBLY TO THE MAIN FRAME ASSEMBLY USING THE M12 x 79MM BOLT (U) , THE M12
WASHER (Y) AND THE M12 LOCK NUT (AA).
INSTALL SEAT SUPPORT PIN (S) AND ADJUST TO DESIRED HEIGHT.
INSERT LEG EXTENSION ASSEMBLY INTO THE MAIN FRAME (G) AND SECURE IN PLACE WITH
PULL-PIN.
FINAL ASSEMBLY
AA
Y
S
Y
U
