Leg extension assembly w – Deltech Fitness DF1000- Olympic Weight Bench User Manual
Page 5

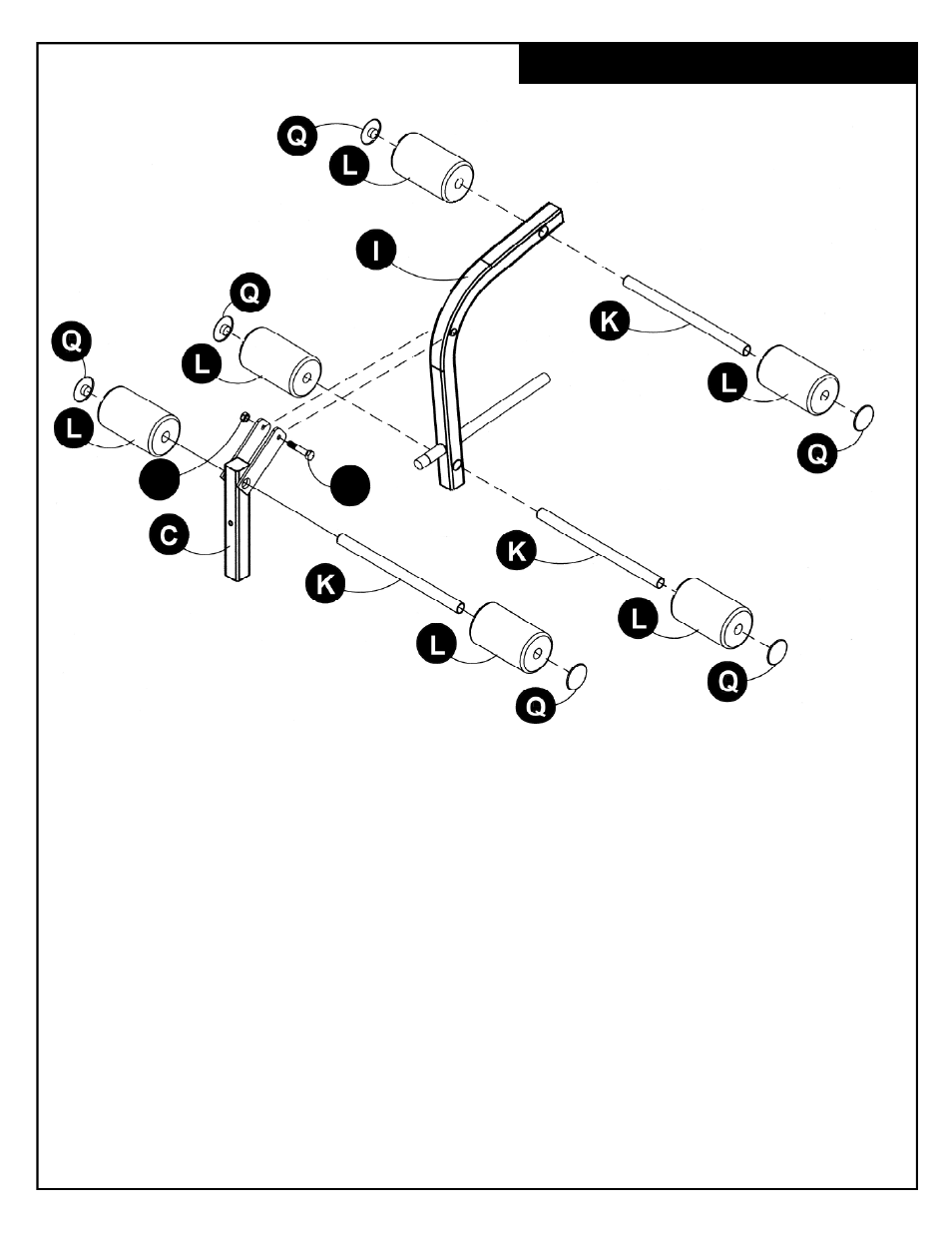

BOLT THE LEG EXTENSION ARM (I) TO THE LEG YOKE (C) USING THE M10 x 76MM
BOLT (W) THE M10 FLAT WASHERS, AND THE M10 LOCK NUT (BB).
NEXT SLIDE THE LEG PAD TUBES (K) THROUGH THE LEG EXTENSION (I) AND
THE LEG YOKE (C). THEN SLIDE THE LEG PADS (L) ON TO THE LEG PAD TUBES
(K). INSERT THE MUSHROOM CAPS (Q).
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533
LEG EXTENSION ASSEMBLY
W
BB
