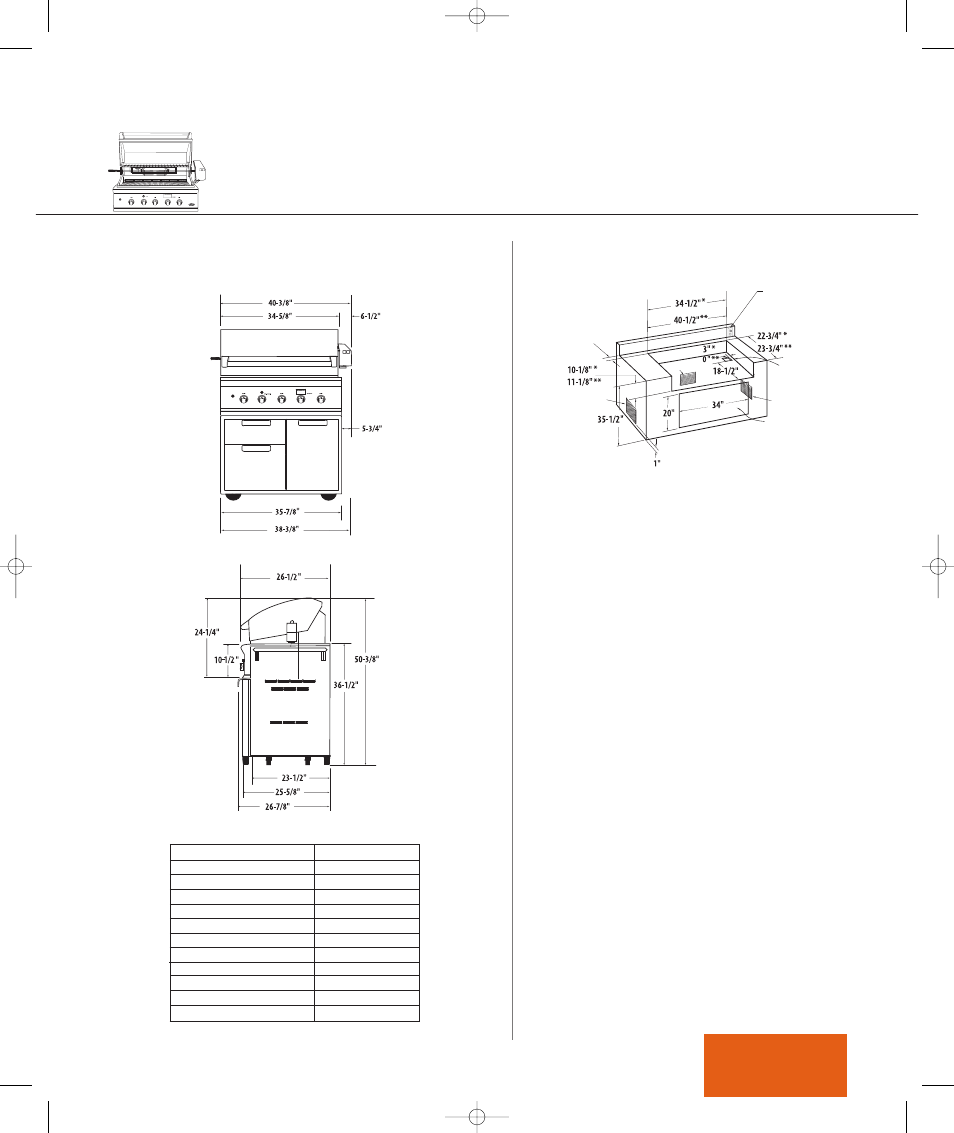

36” Grill Dimensions
(with optional grill cart)
Grill Model: BGB36-BQAR
Cart Model: CAD-36
MODEL NUMBER
BGB36-BQAR
TOTAL COOKING AREA
879 SQ. INCHES
PRIMARY COOKING AREA
(GRILL AREA)
638 SQ. INCHES
SECONDARY COOKING AREA
(WARMING RACK)
241 SQ. INCHES
GRILL BURNERS
3 @ 25,000 BTU/HR
INTEGRATED ROTISSERIE BURNER
14,000 BTU/HR
SMOKER BURNER
3,500 BTU/HR
DOUBLE-SIDED GRILL GRATES
STAINLESS STEEL
GREASE MANAGEMENT SYSTEM
®
✔
SHIPPING WEIGHT
(GRILL HEAD)
284 LBS.
SHIPPING WEIGHT
(OPTIONAL CART)
115 LBS.
SHIPPING DIMENSIONS
(HEIGHT X WIDTH X DEPTH)
31” X 40” X 31-1/2”
36” Grill Island Preparation
Grill Model: BGB36-BQAR
Ordering Data:
Please specify gas type (natural or propane) when ordering
Gas Requirements:
Natural
• 1/2" NPT male with a 3/8" flare adapter
• Operational Pressure: 4” W.C.
• Supply Pressure: 6" to 9” W.C.
Propane
• 1/2" NPT male with a 3/8" flare adapter
• LP hose with a quick disconnect & fitting are shipped
connected
• Operational Pressure: 10” W.C.
• Supply Pressure: 11" to 14” W.C.
Power Requirements:
• 120V 60Hz for models with Rotisserie Motor.
Island Ventilation Requirements:
It is recommended that adequate ventilation holes must be
provided in the base of an enclosure in the event of a gas leak.
Grill Placement:
DO NOT build grill under overhead unprotected combustible
construction. Use only in well-ventilated areas. These units are
for outdoor use only. If located in a consistently windy area
(oceanfront, mountaintop, etc.) a wind break will be required.
Conversion Kits:
NG to LP and LP to NG conversion kits are available from your
dealer.
Accessories
• Stainless Steel Grill Cart (CAD-36)
• Single or double side burners for built-in application
• Stainless Steel Access Doors for built-in application
• Stainless Steel Access Drawers for built-in application
• Insulated Jacket for built-in application
• Grilling Tool Set
• Brazilian Cherry Chopping Board that fits in cart side-shelf
• Drop-on Griddle Plate
• Vinyl Grill Cover
• Wok and Wok Ring for use on side burners
access doors
(ADN20x36)
access drawers
(ADR 36)
Max.
4” x 4” opening for
gas supply line
Note: Locate electrical
service on the right hand
side for rotisserie motor
connection.
3” to non-combustible
construction/
min. for lid clearance
12” min. combustible
construction
BGB36-BQAR
* Standard cut-out dimensions for non-combustible enclosure
** Insulated jacket cut-out dimensions for combustible enclosure
Island installation to use minimum of 3 vents providing
10 square inches per vent (typical).
Vent
Vent
Vent
